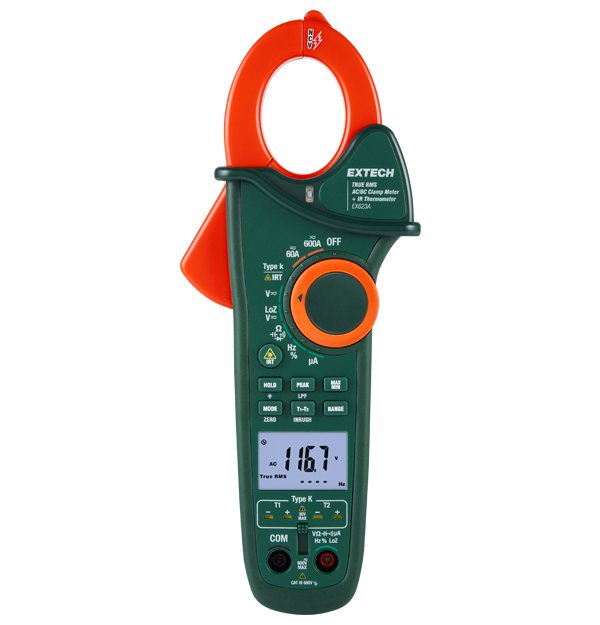

600 A Dual Input Clamp Meter with IR Thermometer and NCV

Extech EX623A

Model: EX623A Go to Product Support

The EX623A True RMS AC/DC clamp meter combines dual thermocouple inputs for T1, T2, and T1-T2 differential temperature measurement. It comes with a built-in infrared thermometer and a laser pointer for pinpointing hot spots and a Non-Contact Voltage (NCV) detector, so you can safely check for live electrical current. It features a DC micro-amp function that is ideal for flame rod measurements in HVAC systems, and its capacitance measurement capability extends up to 40 mF. The EX623A comes complete with test leads, a 9 V battery, Type K thermocouple, bead wire temperature probe, and a carrying case.

$229.99
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales

  • Advanced safety features

    Built-in non-contact infrared thermometer with laser pointer for locating hot spots and non-contact voltage (NCV) detector for checking for live electrical current

  • All-in-one temperature measurements

    Dual Type K temperature thermocouple for T1, T2 and T1-T2

  • Upgraded quality features

    • True RMS for accurate measurements of AC voltage and current measures
    • 600 A AC/DC Current
    • Low Impedance (LoZ) to improve accuracy reduce the possibility of ghost voltages
    • Low Pass Filter (LPF) to ensure more accurate readings in noisy electrical environments
    • Inrush (100 ms) current feature to capture start-up current

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Current
0.01 A to 600 A
AC Current Basic Accuracy
±(1.5% + 5d)
AC Voltage
0.1 mV to 600 V
Capacitance
0.001 nF to 40 mF
DC Current
0.01 A to 600 A
DC Microcurrent
0.1 µA to 600 µA
DC Voltage
0.1 mV to 600 V
Duty Cycle
0.5% to 99.0%
Frequency
0.001 Hz to 100 kHz / Frequency (Clamp) 0.1 Hz to 400 Hz
Jaw Size
32 mm (1.25 in)
Non-Contact Voltage (NCV) Detector
Yes
Resistance
0.1 Ω to 60 M Ω
Temperature (IR) Max Resolution
-50°C to 270°C (-58°F to 518°F)
Temperature (Type K) Max Resolution
-50°C to 1000°C (-58°F to 1832°F)
Additional Details
Dimensions
241 mm × 96 mm × 45 mm (9.4 in × 3.7 in × 1.74 in)
Display
6000 counts
Safety Category
CAT III-600 V
Warranty
2 years
Weight
315 g (11.11 oz)
