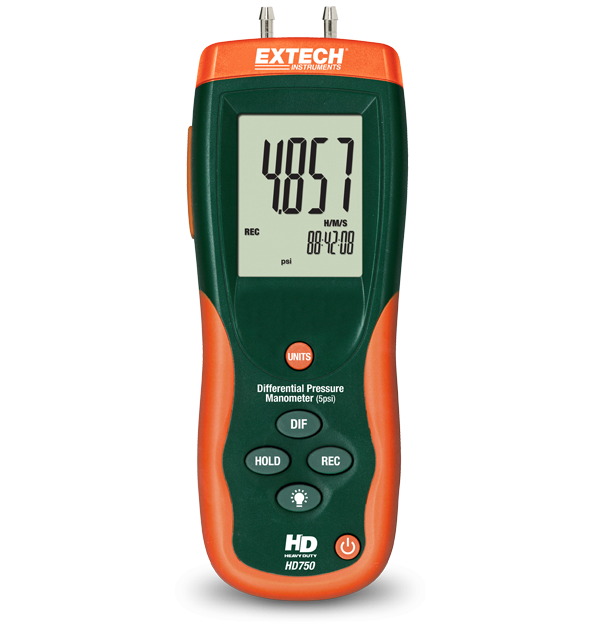

Extech HD750

Differenzialdruck-Manometer (5psi)

Das Differenzdruckmanometer HD750 bietet 11 wählbare Maßeinheiten und kann als Messanzeige mit niedriger Reichweite / hoher Auflösung verwendet werden oder einen Differenzdruck von bis zu 0 auf 138,3 Zoll liefern. H2O (Zoll Wassersäule). Max/Min-Aufzeichnung und relativer Zeitstempel sind nützliche Funktionen, ebenso wie die Funktionen „Data Hold“ und „Auto Power Off“ des HD750. Das 5psi HD750 verfügt außerdem über eine Nullpunktfunktion für die Offsetkorrektur oder zur Messung sowie über eine eingebaute USB-Schnittstelle. Inkl. 9-V-Batterie, Software mit USB-Kabel, Netzteil für Wechselstrom, Verbindungsschlauch, integriertem Stativ und Hartschalenkoffer.

Specifications

Allgemeine technische Daten
Pressure [bar] 0.344bar
Pressure [bar] Basic Accuracy ±0.3% full scale
Pressure [bar] Max Resolution 0.001bar
Pressure [cmH2O] 351.5cmH₂O
Pressure [cmH2O] Basic Accuracy ±0.3% full scale
Pressure [cmH2O] Max Resolution 0.1cmH₂O
Pressure [ftH2O] 11.53ftH₂O
Pressure [ftH2O] Basic Accuracy ±0.3% full scale
Pressure [ftH2O] Max Resolution 0.01ftH₂O
Pressure [inH2O] 138.3inH₂O
Pressure [inH2O] Basic Accuracy ±0.3% full scale
Pressure [inH2O] Max Resolution 0.1inH₂O
Pressure [inHg] 10.18inHg
Pressure [inHg] Basic Accuracy ±0.3% full scale
Pressure [inHg] Max Resolution 0.01inHg
Pressure [kgcm2] 0.351kgcm²
Pressure [kgcm2] Basic Accuracy ±0.3% full scale
Pressure [kgcm2] Max Resolution 0.001kgcm²
Pressure [kPa] 34.47kPa
Pressure [kPa] Basic Accuracy ±0.3% full scale
Pressure [kPa] Max Resolution 0.01kPa
Pressure [mbar] 344.7mbar
Pressure [mbar] Basic Accuracy ±0.3% full scale
Pressure [mbar] Max Resolution 0.1mbar
Pressure [mmHg] 258.5mmHg
Pressure [mmHg] Basic Accuracy ±0.3% full scale
Pressure [mmHg] Max Resolution 0.1mmHg
Pressure [ozin2] 80ozin²
Pressure [ozin2] Basic Accuracy ±0.3% full scale
Pressure [ozin2] Max Resolution 0.01ozin²
Pressure [psi] 5psi
Pressure [psi] Basic Accuracy ±0.3% full scale
Pressure [psi] Max Resolution 0.001psi
Weitere Details
Certifications CE
Dimensions 8.2 × 2.9 × 1.9" (210 × 75 × 50mm)
Power 1 × 9V battery
Warranty 3 years
Weight 9.8oz (280g)
