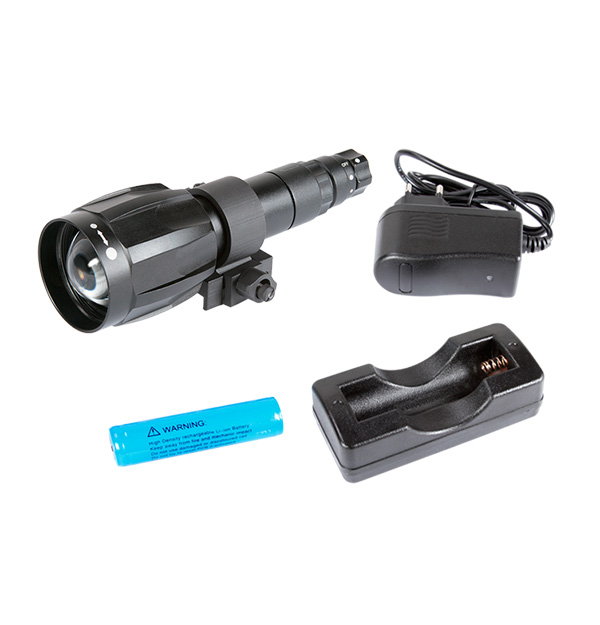

IR850-XLR Detachable LED Extra Long Range Infrared Illuminator

Go to Support Page
product image

Night vision devices rely on small amounts of ambient light to capture clear imagery. FLIR’s Extra Long Range Infrared Illuminator uses near IR light invisible to the naked eye to covertly illuminate subjects in complete darkness, allowing night vision optics to produce a better image. The powerful IR850-XLR model offers beam angle adjustment and variable power control. Included rechargeable battery can operate up to 10 hours while an optional Afocal Doubler increases long-range performance.

Specifications
Overview
Divergence Angle
4° to 35°
Dimensions (excl. mounting bracket)
150 x 46 x 46 mm (5.9 x 1.8 x 1.8 in)
System Overview
Weight
0.21 kg (0.46 ibs), without mount and battery
Environmental
Environmental Rating
Water and fog Resistant
Other
IR Emitter Type
LED
Peak Wavelength
850 nm
Compatible Night Vision Devices
Gen 1, CORE, Gen2, Gen 3, Digital
Battery Life at 20 C [68 F]
up to 10 hours (1/4 Power), up to 8 hours (1/2 Power), up to 6 hours (3/4 Power), up to 2.5 hour (Full Power)
Power
Power
1000 mW
Power Supply
One 18650 (3.7v ) Rechargeable Battery
Spotlight
Illumination Range
Up to 1000 m

IR850-XLR Detachable LED Extra Long Range Infrared Illuminator
