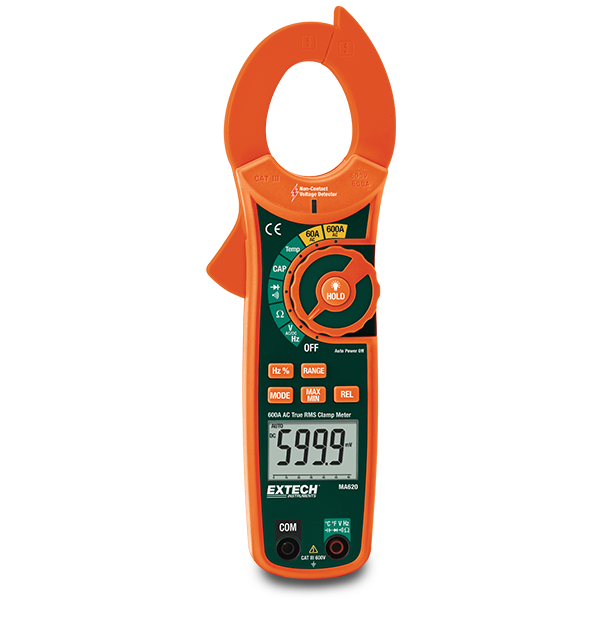

600A True RMS AC Clamp Meter + NCV

Extech MA620

Model: MA620 Go to Product Support
product image

The Extech MA620 is a True RMS, autoranging AC Clamp Meter that offers plant maintenance techs, electrical troubleshooters, and DIYers a product with a high performance and exceptional value. In addition to a host of advanced multimeter and current measurement capabilities, it also has a built-in, non-contact (NCV) voltage detector. You can select auto or manual-ranging modes. The measurement functions cover all types of troubleshooting over and above noninvasive current probe measurements such as voltage, resistance, capacitance, frequency, duty cycle, diode, and continuity tests. Even measure temperature with the supplied Type K bead wire probe. Complete with test leads, general purpose Type K bead wire temperature probe, 9 V battery, and a carrying case.

Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Current
60.00A, 600.0A
AC Current Basic Accuracy
±(2.8% of reading + 8 digits)
AC Current Max Resolution
0.01A
AC Voltage
6.000V, 60.00V, 600.0V
AC Voltage Basic Accuracy
±(1.8% of reading + 8 digits)
AC Voltage Max Resolution
0.001V
Capacitance
40.00nF, 400.0nF, 4.000ΩF, 40.00ΩF, 400.0ΩF, 4000ΩF
Capacitance Max Resolution
0.01nF
Continuity
Yes
DC Voltage
600.0mV, 6.000V, 60.00V, 600.0V
DC Voltage Basic Accuracy
±(1.5% of reading + 2 digits)
DC Voltage Max Resolution
0.1mV
Diode Test
Yes
Duty Cycle
0.5 to 99.0%
Duty Cycle Basic Accuracy
±(1.2% of reading + 2 digits)
Duty Cycle Max Resolution
0.10%
Frequency
10Hz to 10kHz
Frequency Basic Accuracy
±(3.0% of reading + 5 digits)
Frequency Max Resolution
0.01nF
Jaw Size
1.5" (40mm), conductors up to 500MCM
Non-Contact Voltage (NCV) Detector
Yes
Resistance
600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ
Resistance Max Resolution
0.1Ω
Temperature (Type K) Max Resolution
-4 to 1400 °F (-20 to 760 °C)
Temperature (Type N)
±(3% of reading + 9°F/5°C)
Temperature (Type N) Basic Accuracy
0.1°F/°C
True RMS
Yes
Additional Details
Certifications
CE, ETL
Dimensions
9.1 × 3 × 1.5" (232 × 77 × 39mm)
Display
6000-count segment LCD
Power
1 × 9V battery
Safety Category
CATIII - 600V
Warranty
2 years
Weight
9.6oz (271g)
Other
Filter_Brand
Extech
