• Search and Inspect More Area in Less Time

    Unmatched thermal zoom performance and clarity at 5×, 10×, and 20×

  • Safely and Accurately Measure Temperature from Farther Away

    Dual Bosons provide 4× more radiometric pixels on target at every zoom level versus all competitors

  • Make More with Matrice

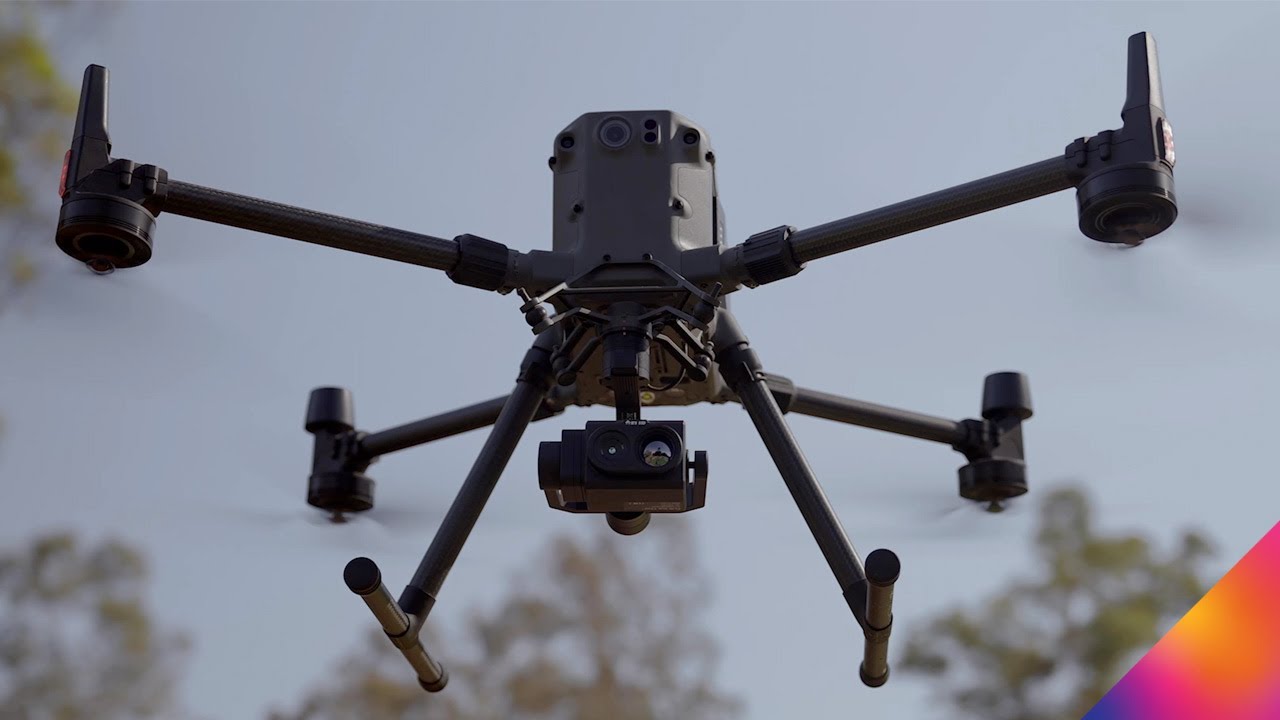

    Plug and play with DJI Matrice 300, DJI V2 Matrice 200 series, and post-process reporting software

4 Ways to Make Drone Inspections More Efficient

4 Ways to Make Drone Inspections More Efficient

To successfully capture accurate drone inspection data, you need to fly in the right conditions, with the right aircraft, and in the right relationship to your target. It is just as important to know how to use the right software to optimize image appearance, batch process images to save time, and more!

Specifications
Aircraft
Airframe Compatibility
DJI V2 Matrice 200-series and Matrice 300
Ground Control
DJI Pilot App
Electrical
Electrical Interface
Skyport 2.0, 13.6V/2A
Environmental & Approvals
Environmental Sealing
IP44
Operational & Storage Temperature
Operational: -20° to 45°C (-4° to 113°F) Storage: -20° to 60°C (-4° to 140°F)
Tested EMI Performance
FCC part 15 Class B
Gimbal
Gimbal Range of Motion
3-axis Pitch: 30° to -120° Yaw: ±270°
Imaging & Optical
IR Camera Optics
Wide FOV: 95° HFOV, 4.9 mm EFL Narrow FOV: 18° HFOV, 24 mm EFL
IR Camera Resolution
2 FLIR Boson 640 × 512
Radiometric Features
Spot meter, measurement box with min/max/avg Isotherms above or below threshold temperature
Streaming Video
640 × 512 @ 25 Hz
Measurement & Analysis
Thermal Sensitivity
85 mK @ F/1.0
Mechanical
Mechanical Interface
Skyport 2.0 connector, X-Port DJI gimbal
Radiometry
Radiometric Accuracy
Accuracy: ±5C / 5% for scenes +10C to +100C Scene dynamic range: -10C to +300C
Thermal Camera
Pixel Pitch
12 µm LWIR
Video & Recording
Recording
Still: Radiometric JPEG, raw TIFF Periodic capture 1s – 30s interval, all still image formats Video
MPEG 25Hz (zoomed)
Radiometric CSQ 5Hz (zoomed)
Raw multipage TIFF 10Hz (wide and narrow FOV separate)
Media Gallery
From Hidden to Discovered | Search and Rescue with the VUE TZ20
From Hidden to Discovered | Search and Rescue with the VUE TZ20
VUE TZ20 Sample Footage | TELEDYNE FLIR
VUE TZ20 Sample Footage | TELEDYNE FLIR
See More in Less Time: Superior Thermal Zoom
See More in Less Time: Superior Thermal Zoom
4 Reasons Why UAS  Drone Pilots Need Clear Radiometric Thermal Zoom
4 Reasons Why UAS Drone Pilots Need Clear Radiometric Thermal Zoom
Vue TZ20-R Thermal Payload - User Training
Vue TZ20-R Thermal Payload - User Training
