Midwave Infrared Thermal Camera

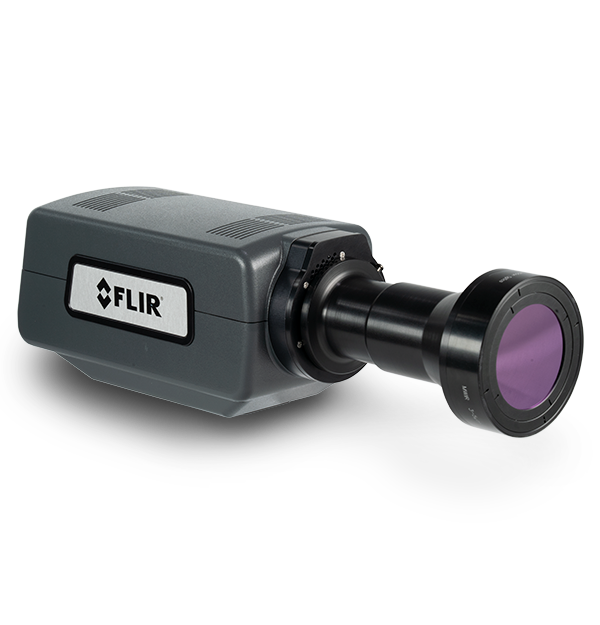

FLIR A6780 MWIR

Model: A6780 MWIR Go to Product Support
product image

The FLIR A6780 MWIR camera system makes it easy to measure temperatures of rapid thermal events and fast-moving targets, making it an ideal choice for industrial, military, and manufacturing R&D applications. This affordable, cooled InSb camera offers the flexibility of both manual and remote-focus lens options to maximize the number of measurement pixels on the object of interest. And single cable connectivity using Gigabit Ethernet provides complete camera control plus data capturing in FLIR Research Studio software – so users can analyze and understand data faster than ever before.

Sales Contact Contact Sales

EASY, ACCURATE TEMPERATURE DATA

  • SIMPLE CONNECTIONS, MINIMAL RAMP-UP TIME

    Control the camera and stream data using a single Gigabit Ethernet cable; capture the data you want when you want it thanks to advanced triggering and synchronization capabilities.

  • MEASURE TEMPERATURE ACCURATELY

    Offers sub-windowed frame rates up to 4,130 Hz, a suite of lens options, and a built-in 3-position warm filter wheel to quickly switch between standard and high-temperature ranges.

  • SIMPLIFIED ANALYSIS & SHARING

    FLIR Research Studio’s simple Connect–View–Record–Analyze workflow helps you collect and analyze data quickly and collaborate with your team easily.

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Resolution
640 × 512
Pixel Size [Square]
15 µm
Spectral Range
1.0 – 5.0 µm
Detector Type
FLIR indium antimonide (InSb)
Camera f-number
f/2.5
Dynamic Range
14-bit
Frame Rate [Full Window]
Programmable; 0.0015 Hz to 125 Hz
Integration Time
480 ns to ~full frame
Standard Temperature Range [with band matched optics]
-20°C to 300°C (-4°F to 572°F)
Optional Temperature Range [with band matched optics]
45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3)
Filter Holder [Warm]
3-position motorized filter wheel ( 1 inch diameter filters)
Focus
Motorized (compatible w/ manual)
Imaging & Optical
Available Lenses
Manual (broadband): 25 mm, 50 mm, 100 mm
Camera f-number
f/2.5
Close-up Lenses/Microscopes
No microscopes available
Detector Type
FLIR indium antimonide (InSb)
Dynamic Range
14-bit
Filter Holder [Warm]
3-position motorized filter wheel ( 1 inch diameter filters)
Focus
Motorized (compatible w/ manual)
Frame Rate [Full Window]
Programmable; 0.0015 Hz to 125 Hz
Image Time Stamp
Yes
Integration Time
480 ns to ~full frame
Lens Interface
FLIR FPO-M (4-tab bayonet, motorized)
On Camera Image Storage
None
Operability
≥99.8% (≥99.95% typical)
Overlay
Fixed configuration, can be turned off
Palette
Selectable 8-bit
Pixel Clock
50 MHz
Pixel Size [Square]
15 µm
Radiometric Data Streaming
Gigabit Ethernet (GigE Vision)
Readout Modes
Asynchronous integrate while read, asynchronous integrate then read
Readout Type
Snapshot
Resolution
640 × 512
Sensor Cooling
Closed-cycle rotary
Spectral Range
1.0 – 5.0 µm
Standard Video
SDI
Standard Video Zoom
Automatic, variable
Subwindow Modes
Flexible windowing down to 16 × 4 (steps of 16 columns, 4 rows)
Thermal Sensitivity_NETD [typical]
≤25 mK (typical)
Video Modes
SDI: 720p@50/59.9, 1080p@25/29.9
Measurement & Analysis
Accuracy
≤100°C (≤212°F), ±2°C (±3.6°F) accuracy (±1°C/1.8°F typical); >100°C ±2% of reading (±1% typical)
Ambient Drift Compensation [with factory cal]
Yes
Automatic Gain Control
Manual, Linear, Plateau equalization, DDE
Optional Temperature Range [with band matched optics]
45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3)
Standard Temperature Range [with band matched optics]
-20°C to 300°C (-4°F to 572°F)
Communication & Data Storage
Command and Control
GenICam (GigE), RS-232
Synchronization Modes
Sync In, Sync Out
General
Size [L x W x H ] w/o Lens
226 × 102 × 109 mm (8.9 × 4.0 × 4.3 in)
Weight [without lens]
2.3 kg (5 lbs)
Power
Power
24 VDC (<24 W steady state)
Environmental & Certifications
Mounting
2 × ¼" -20 tapped holes, 1 × 3/8"-16 tapped hole, 4 × 10-24 tapped holes
Operating Temperature Range
-20°C to 50°C (-4°F to 122°F)
