TG-Series
The lightweight, handheld FLIR TG-Series thermal imaging tools are designed to help you diagnose equipment problems and discover potential failure points. Once you spot the issue, you can ensure customer satisfaction by recording "before & after" thermal images that confirm problems were corrected.
Top application
- Gebäudediagnose und Luftqualität im Innenbereich
- Elektrische Inspektion in Wohngebäuden
- Mechanische Inspektion
From $324.00
Which Camera Should I Choose?

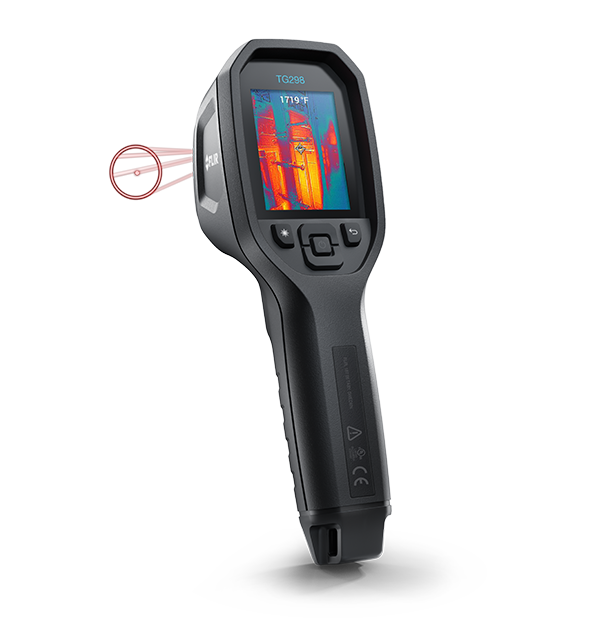

Flir TG298
$849.00
- 160 × 120 thermal resolution
- -25°C to 1080°C (-13°F to 1976°F)
- Interpret images with MSX®, which enhances thermal images with crisp visual details
IR Resolution
160 × 120
Super Resolution 320 × 240
Thermal Sensitivity/NETD
<70 mK
Accuracy
±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F ) and 100°C to 400°C (213°F to 752°F)
±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F) and >400°C (>752°F)

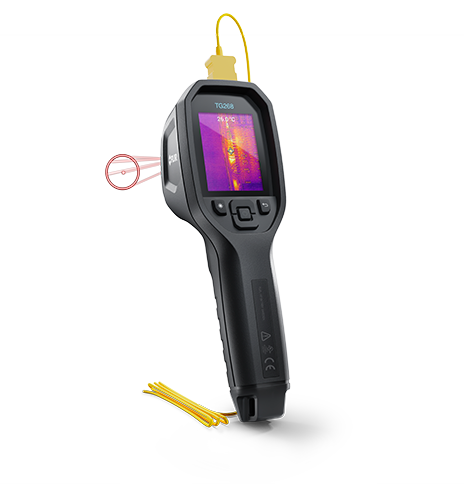

Flir TG268
$459.00
- 160 × 120 thermal resolution
- -25°C to 400°C (-13°F to 752°F)
- Interpret images with MSX®, which enhances thermal images with crisp visual details
IR Resolution
160 × 120
Super Resolution 320 × 240
Thermal Sensitivity/NETD
<70 mK
Accuracy
±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F)
±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F

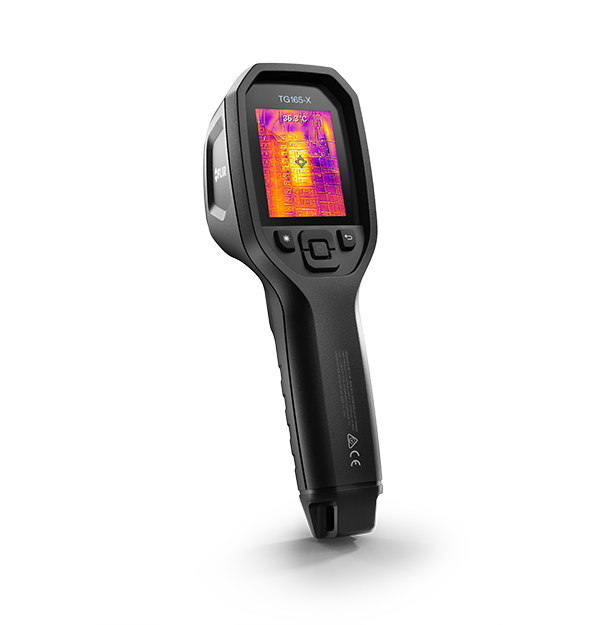

Flir TG165-X
$324.00
- 80 × 60 thermal resolution
- -25°C to 300°C (-13°F to 572°F)
- Interpret images with MSX®, which enhances thermal images with crisp visual details
IR Resolution
80 × 60 pixels
Thermal Sensitivity/NETD
<70 mK
Accuracy
50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)"
IR Resolution
160 × 120
Super Resolution 320 × 240
IR Resolution
160 × 120
Super Resolution 320 × 240
IR Resolution
80 × 60 pixels
Thermal Sensitivity/NETD
<70 mK
Thermal Sensitivity/NETD
<70 mK
Thermal Sensitivity/NETD
<70 mK
Accuracy
±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F ) and 100°C to 400°C (213°F to 752°F)
±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F) and >400°C (>752°F)
Accuracy
±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F)
±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F
Accuracy
50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)"
