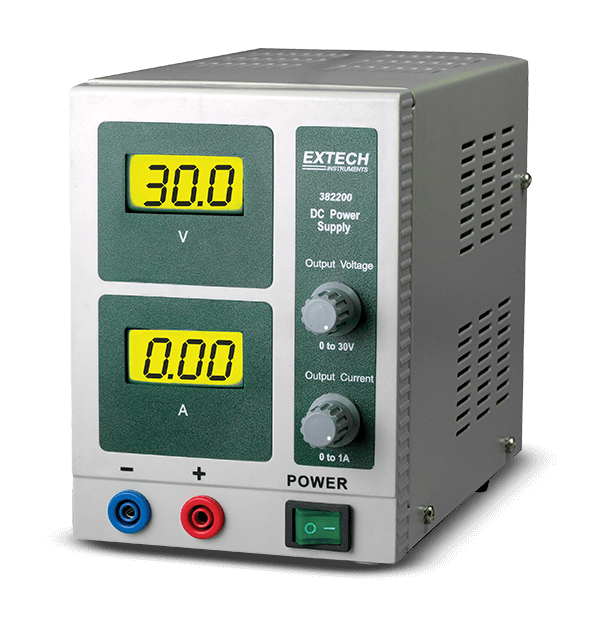

Extech 382200
30V/1A Single Output DC Power Supply
Constant Voltage/Current digital DC power supply with dual LCD
Technische Daten
| General | |
|---|---|
| Line Current Regulation | <0.2% + 3mA |
| Line Voltage Regulation | <0.01% + 3mV |
| Load Current Regulation | <0.2% + 3mA |
| Load Voltage Regulation | <0.01% + 2mV |
| Output Current | 0 - 1.00A DC |
| Output Current Basic Accuracy | ±2% of reading |
| Output Voltage | 30.0V DC |
| Output Voltage Basic Accuracy | ±1.5% of reading |
| Ripple and Noise | <0.5mV/<3mA |
| Additional Details | |
|---|---|
| Dimensions | 9.4 × 4.25 × 6" (240 × 108 × 154mm) |
| Power | 115V/230V; 50/60Hz |
| Warranty | 2 years |
| Weight | 4.4lbs. (2 kg) |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
