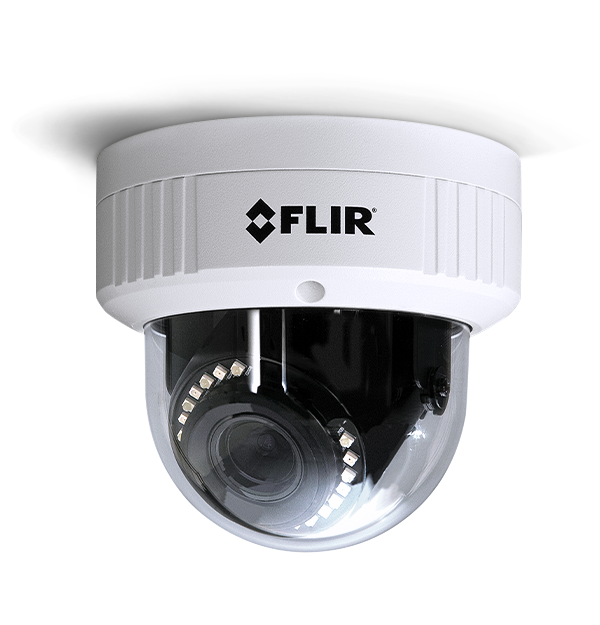

FLIR ARIEL™ CM-3202
FULL-HD MINI DOME
The Ariel CM-3202 mini dome camera offers 1080p video and fast frame rates in high-motion, low light scenes. True wide dynamic range (WDR) on the CM-3202 captures sharp video in complex environments, such as critical infrastructure sites, commercial offices, and large campuses. With a strong H.265 built-in motion processing architecture, the Ariel CM-3202 mini dome delivers predictable, efficient streaming and storage, reducing utility costs and total cost of ownership (TCO).
The most technologically advanced HD IP camera in its class.
High-resolution imaging with shutter WDR performs in low light environments.
Dependable performance and simple integration with existing systems.
A new, simplified web interface and cybersecurity improvements help keep your facility safe.
Technische Daten
| Cyber Security | |
|---|---|
| Security | User account with password policy, block multiple failed logins, IEEE 802.1X HTTPS, digest authentication, IP filtering |
| General | |
|---|---|
| AES | 1/2 to 1/32,000 (auto) |
| Day_Night Mode | Yes |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Tamper Detection | Yes |
| Measurement & Analysis | |
|---|---|
| Automatic Gain Control | Auto |
| System Integration | |
|---|---|
| Angle of Illumination | Full 120° |
| Ethernet | 10/100, auto sensing, half / full duplex (RJ45) |
| IR Distance | up to 30 m (98 ft.) |
| LED Type | high efficiency SMD |
| Network Protocol | DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4/6, NTP, RTSP/RTCP/RTP,QoS, SMTP, TCP, TLS/TTLS, UDP, UPnP, 802.1X,SNMP v1/2c/3,DDNS,PPPoE |
| Peak Emission Wavelength [nm] | 850.0 |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Internet Explorer 11, Mozilla Firefox, Chrome, Safari, Microsoft Edge |
| Thermal Camera | |
|---|---|
| DSS | 1/7.5 to 1/25 or 1/30 with up to 4x sensitivity boost in color or night mode |
| Image Sensor | 1/2.8", DOL 2F CMOS |
| Wide Dynamic Range | On / Off (78dB) |
| Visible Camera | |
|---|---|
| Backlight Compensation | On / Off |
| Bandwidth | Configurable between 64 Kbps and 20 Mbps |
| DSS | 1/7.5 to 1/25 or 1/30 with up to 4x sensitivity boost in color or night mode |
| Image Sensor | 1/2.8", DOL 2F CMOS |
| Lens Type | Varifocal 2.7-13.5mm, 35°- 105° HFOV, F1.4, D/N, Motorized with auto-focus and auto-iris |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 2D/3D |
| Sensitivity | 0.02 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| Sensor Resolution | 1920 x 1080 |
| Signal to Noise Ratio | ±50 dB |
| White Balance | Auto / ATW / Manual / One Push |
| Wide Dynamic Range | On / Off (78dB) |
| Video & Recording | |
|---|---|
| Maximum Performance | H.265 / H.264 30/25 @ 1080p + 720p + D1 (NTSC/PAL) |
| Rate Control | CBR & CVBR |
| Resolution Range | Scalable from D1 to FHD 1080p |
| SD Card Recording1 | microSDXC up to 256GB (Class 10) |
| Video Bandwidth | Configurable between 64Kbps and 20Mbps |
| Video Compression | Fully compliant multi-stream H.265 + H.264 base/main/high profle + MJPEG |
| Video Motion Detection | Yes |
