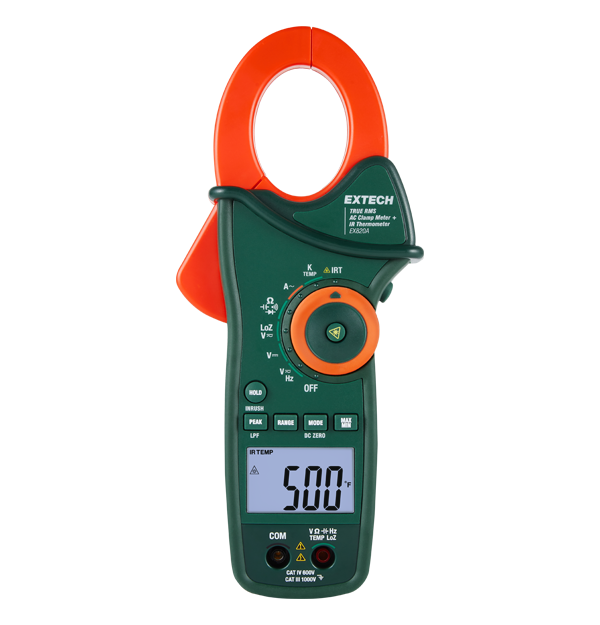

Extech EX820A
1000 A True RMS AC Clamp Meter with IR
The EX820A clamp meter features a unique, built-in, non-contact infrared thermometer with laser pointer to monitor temperature and locate hot spots on motors and electrical devices. A large 6000 count LCD display with bright back lighting allows you to easily see readings in dim light. Its ergonomically designed double-molded housing offers a better grip for one-handed operation and the 43 mm (1.7 in) diameter jaw opening is large enough for conductors up to 750 MCM or two 500 MCM. With 1000 A True RMS measurements and a CAT IV-600 V safety rating, the EX820A is ideal for electricians, electrical contractors, and plant maintenance professionals.
• Built-in IR thermometer for non-contact temperature measurements
• Inrush current to capture start-up current
• 6000 count backlit LCD display
• Low Impedance Mode (LoZ) to reduce false readings caused by ghost voltages.
Technische Daten
| General | |
|---|---|
| AC Current | 0.1 A to 1000 A |
| AC Current Basic Accuracy | ±(2.5% + 8d) |
| AC Voltage | 0.1 mV to 1000 V |
| Capacitance | 0.001 nF to 40 mF |
| Continuity | Yes |
| DC Current | — |
| DC Voltage | 0.1 mV to 1000 V |
| Diode Test | Yes |
| Frequency | 0.001 Hz to 100 kHz |
| Inrush Current | Yes |
| Jaw Size | 43 mm (1.7 in) |
| Resistance | 0.1 Ω to 60 MΩ |
| Temperature [IR] Max Resolution | -50°C to 270°C (-58°F to 518°F) |
| Temperature [Type K] Max Resolution | 20°C to 760°C (-4°F to 1400°F) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, ETL |
| Dimensions | 270 mm × 110 mm × 50 mm (10.5 in × 4.3 in × 2.0 in) |
| Safety Category | CAT IV-600 V |
| Warranty | 2 years |
| Weight | 362 g (12.77 oz) |
