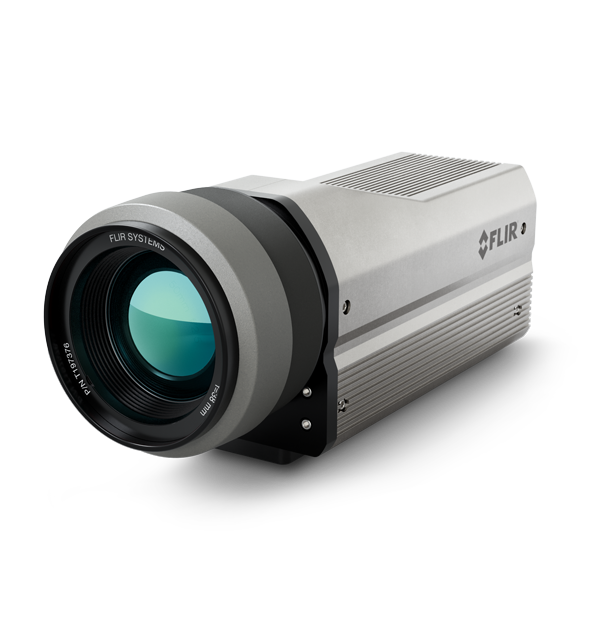

FLIR G620a
Fixed-Mount Hydrocarbon/VOC Optical Gas Imaging (OGI) Camera
Product Variations
Find gas leaks while meeting governmental and environmental emission goals with the FLIR G620a: a long-lived, cooled OGI camera solution for continuous monitoring at upstream and midstream gas production and processing facilities. The G620a is spectrally filtered to see methane (CH₄), hydrocarbons, and Volatile Organic Compounds (VOCs) with a performance OGI detector that meets sensitivity requirements set forth in U.S. EPA OOOOa and Appendix K. Small and lightweight, the G620a installs quickly and relies on a simplified web interface. Never miss a moment of monitoring thanks to the robust linear cooler which supports 27,000 hours of non-stop operation. The FLIR G620a can help oil and gas companies maintain valuable capital equipment, avoid product loss, meet emissions reduction metrics, and ensure safer work practices.
The high-resolution, high sensitivity cooled image sensor plus the advantage of FLIR's proprietary High Sensitivity Mode (HSM) allows users to visualize even the smallest gas leaks.
FLIR G620a cameras offer more than 27,000 hours of runtime before any service is required (mean time to failure).
Satisfy U.S. EPA methane and VOC detection sensitivity requirements and achieve global ESG pledges for methane and hydrocarbon reduction.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 640 × 512 |
| Thermal Sensitivity_NETD | <15 mK at 25°C |
| Spectral Range | 3.2–3.4 μm |
| Imaging & Optical | |
|---|---|
| Automatic Image Adjustment | Linear, PE |
| Color palettes | Selectable 8-bit |
| Detector Pitch | 15 µm |
| Detector Type | High Operating Temperature (HOT) MWIR T2SLS |
| Digital image enhancement | High sensitivity mode (HSM) |
| f number | f/1.59 |
| Field of view [FOV] | FLIR G620a 6°: 6.0° × 4.8° FLIR G620a 14.5°: 14.4° × 11.5° FLIR G620a 24°: 23.6° × 19° |
| Focal Length | FLIR G620a 6°: 92 mm FLIR G620a 14.5°: 38 mm FLIR G620a 24°: 23 mm |
| Focus | Motorized |
| Gas Sensitivity [NECL] | NECL: 1 m ΔT 10°C Methane: 16 ppm × m Hydrocarbons (niabara gas mix): 6.4 ppm × m |
| Image Frequency | 30 Hz |
| Image Modes | IR image, high sensitivity mode (HSM) |
| IR Resolution | 640 × 512 |
| Minimum Focus Distance | FLIR G620a 6°: 2 m (6.6 ft.) FLIR G620a 14.5°: 0.5 m (1.64 ft) FLIR G620a 24°: 0.3 m (1.0 ft) |
| Non_Radiometric IR Video | Streaming H.264 or MJPEG over RTSP |
| Non_radiometric IR video recording | None |
| Overlay | RTSP only |
| Radiometric IR video recording | None |
| Radiometric IR video streaming | GigE Vision |
| Sensor Cooling | FLIR FL100 Linear cooler |
| Spectral Range | 3.2–3.4 μm |
| Thermal Sensitivity_NETD | <15 mK at 25°C |
| Zoom | Digital zoom, 1x, 2x, 4x, 8x |
| Measurement & Analysis | |
|---|---|
| Accuracy | ≤100°C ±2°C, >100°C ±2% of reading |
| Ambient Drift Compensation [with factory cal] | Yes |
| DC Voltage | Range: 18 V-56 V |
| Object Temperature Range | -10°C to 120°C (14°F to 248°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GEV: Genicam; RTSP: Web Interface, REST API |
| Communication Interfaces | Ethernet |
| Digital Inputs | 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V |

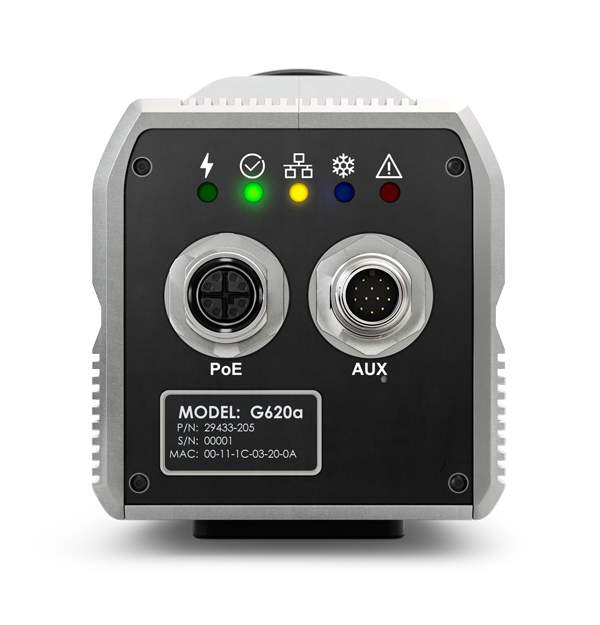

| Digital I_O connector type | M12 12-pin A-coded, Male (shared with external power) |
| Digital Outputs | 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Storage Media | None |
| Synchronization Modes | Sync In |
| General | |
|---|---|
| Box Contents | Camera w/lens; M12 to RJ45F Cable (0.3 m), quick start guide, certificate of calibration |
| Size [L x W x H ] w_o Lens | 200 × 76 × 92 mm (7.9 × 3.0 × 3.6 in) |
| Size [L × W × H] | FLIR G620a 14.5°, FLIR G620a 24°: 229 × 76 × 95 mm (9.0 × 3.0 × 3.8 in) FLIR G620a 6°: 297 × 99 × 99 mm (11.7 × 3.9 × 3.9 in) |
| Weight | FLIR G620a 6°: 1.90 kg (4.14 lbs) FLIR G620a 14.5°: 1.48 kg (3.22 lbs) FLIR G620a 24°: 1.50 kg (3.27 lbs) |
| Weight [without lens] | 1.32 kg (2.9 lbs) |
| Power | |
|---|---|
| Power Consumption | 25 W (cool down) |
| Power Source | Primary power source: PoE+ type 2 (30 W min) Optional DC connection: M12 12-pin A-coded, male (shared with Digital I/O) |
| Environmental & Certifications | |
|---|---|
| Directives | EMC: 2014/30/EU, WEEE: 2012/19/EU |
| EMC | EN55032:2015/A11:2020 EN55035:2017/A11:2020 FCC Part 15, Subpart B ClassA KC C 9832 and KS C 9835 |
| Encapsulation | IP50 |
| Mounting | With mounting plate - 2 × 1/4"-20 tapped holes, 1 × 3/8"-16; tapped hole, 4 × #10-24 tapped holes Without mounting plate - 6 × #6-32 |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Shock | 25 g, 6 ms; Half sine; ± 500 shocks; X,Y&Z (IAW MIL-STD-810H) |
| Vibration | 10-58 Hz, 0.15 mm; 58-500 Hz, 2 g; 5 cycles, 1 oct/min; X,Y&Z (IAW MIL-STD-810H) |
Resources & Support
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
