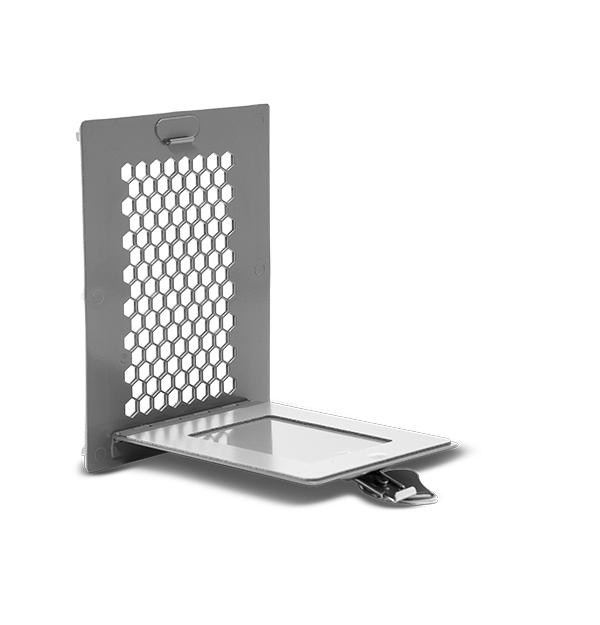

The FLIR IRW-xPC/xPS joins the existing FLIR IR Window family to help you inspect more efficiently, make inaccessible components accessible, and save money by preventing unplanned downtime. The rectangular polymer windows are impact resistant and provide the largest viewing area available to monitor completely undisturbed assets inside energized electrical equipment. IR Windows-xPC/xPS are durable and stable in harsh environments, making them suitable for most industrial settings as well as for shipboard use.
Inspect energized electrical equipment quickly without opening the panel door and compromising safety
Fully impact-resistant optics will last long term in industrial environments without risk of deterioration
Get an unparalleled field of view inside the large, rectangular window. Access components not typically covered by inspection programs
Technische Daten
| Highlighted | |
|---|---|
| Body Material | IRW-PC 6 inch, IRW-PC 12 inch, IRW-PC 24 inch: Aluminum || IRW-PS Stainless 12 inch, IRW-PS Stainless 24 inch: Powder Coated Stainless Steel |
| Maximum Operating Temperature | IRW-PC 6 inch, IRW-PC 12 inch, IRW-PC 24 inch: -40° to 200°C (-40° to 392°F) || IRW-PS Stainless 12 inch, IRW-PS Stainless 24 inch: -40°C to 273°C (-40° to 523°F) |
| NEMA Environment Type | IRW-PC 6 inch, IRW-PC 12 inch, IRW-PC 24 inch: IP65 / NEMA 4x || IRW-PS Stainless 12 inch, IRW-PS Stainless 24 inch: IP67 / NEMA 6 |
| Optic Material | UL 746 compliant, visual, UV and IR transmissive polymer; -40° to 325°C (-40°to 617°F) |
| Warranty | Limited lifetime |
| Imaging & Optical | |
|---|---|
| Midwave IR, Longwave IR | Yes |
| Optic Material | UL 746 compliant, visual, UV and IR transmissive polymer; -40° to 325°C (-40°to 617°F) |
| Optic Reinforced Grill Material | IRW-PC 6 inch, IRW-PC 12 inch, IRW-PC 24 inch: Aluminum Reinforcing Grill (IP22 / IP2x Standard) || IRW-PS Stainless 12 inch, IRW-PS Stainless 24 inch: Stainless Steel Reinforcing Grill (IP22 / IP2x Standard) |
| Ultraviolet [UV] | Yes |
| Visual Inspection | Yes |
| Environmental & Certifications | |
|---|---|
| Agency Approvals | IRW-PC 6 inch, IRW-PC 12 inch, IRW-PC 24 inch: Certified by UL (USA) & cUL (Canada) to the following standards: 50V, 50E, 756C: Impact and Flammability, 1558: Impact and Load Resistance, 508A: ANSI 508A
CSA C22.2 No. 14-13
IP65 / NEMA 4x
Lloyds of London Type Approval
American Bureau of Shipping (ABS)
DNV (Det Norske Veritas) P261.1E Maritime, Vessel and Offshore Applications
IEEE C37 20.2.a.3.6: Impact and Load
BSI Quality ISO 9001 Certified System IRW-PS Stainless 12 inch, IRW-PS Stainless 24 inch: Certified by UL (USA) & cUL (Canada) to the following standards: 50V, 50E, 746C & 746A-2012, 1558: Impact and Load Resistance, 508A: ANSI 508A CSA Certifications: C22.2 No. 14-13, C22.2 No. 14-10, C22.2 No. 94-M91, C22.2 No. 94.1-07, C22.2 No. 94.2-07 IP67 / NEMA 6 Lloyds of London Type Approval American Bureau of Shipping (ABS) DNV (Det Norske Veritas) P261.1E Maritime, Vessel and Offshore Applications IEEE Certifications: C37 20.7 Type 2B, C37 20.2.a.3.6: Impact and Load IEC Certifications: 62271-200, 60262271-200,60298 Appendix A, 60068-2-6:2007, 60068-2-3, 60068-2-78:2012 |
| Automatically Grounded | Yes |
| Gasket Material | UL 94 5VA TPE; -40° to 273°C (-40° to 523°F) |
| Hardware Material | 316 stainless steel |
| Maximum Operating Temperature | IRW-PC 6 inch, IRW-PC 12 inch, IRW-PC 24 inch: -40° to 200°C (-40° to 392°F) || IRW-PS Stainless 12 inch, IRW-PS Stainless 24 inch: -40°C to 273°C (-40° to 523°F) |
| Medium High Voltage Applications | Yes |
| NEMA Environment Type | IRW-PC 6 inch, IRW-PC 12 inch, IRW-PC 24 inch: IP65 / NEMA 4x || IRW-PS Stainless 12 inch, IRW-PS Stainless 24 inch: IP67 / NEMA 6 |
| Optic Temperature Range | -40° to 325°C (-40° to 617°F) |
| Outdoor Applications | IRW-PC 6 inch, IRW-PC 12 inch, IRW-PC 24 inch: N/A || IRW-PS Stainless 12 inch, IRW-PS Stainless 24 inch: Yes |
| Voltage Range | Any |
| Warranty | Limited lifetime |
| General | |
|---|---|
| Aperture Overall Height | IRW-PC 6 inch, IRW-PC 24 inch, IRW-PS Stainless 24 inch: 15 cm (5.9 in) IRW-PC 24 inch, IRW-PS Stainless 12 inch: 12.7 cm (5 in) |
| Aperture Overall Width | IRW-PC 6 inch: 9.1 cm (3.6 in) IRW-PC 12 inch, IRW-PS Stainless 12 inch: 23.6 cm (9.3 in) IRW-PC 24 inch, IRW-PS Stainless 24 inch: 53 cm (20.9 in) |
| Body Material | IRW-PC 6 inch, IRW-PC 12 inch, IRW-PC 24 inch: Aluminum || IRW-PS Stainless 12 inch, IRW-PS Stainless 24 inch: Powder Coated Stainless Steel |
| Overall Height | IRW-PC 6 inch, IRW-PC 24 inch, IRW-PS Stainless 24 inch: 21.8 cm (8.6 in) IRW-PC 12 inch, IRW-PS Stainless 12 inch: 20.6 cm (8.1 in) |
| Overall Width | IRW-PC 6 inch: 16 cm (6.3 in) IRW-PC 12 inch, IRW-PS Stainless 12 inch: 30.5 cm (12 in) IRW-PC 24 inch, IRW-PS Stainless 24 inch: 61 cm (24 in) |
| Weight | IRW-PC 12 inch: 2 lbs. IRW-PS Stainless 12 inch: 5 lbs. IRW-PC 24 inch: 4 lbs. IRW-PS Stainless 24 inch: 10 lbs. IRW-PC 6 inch: 1 lbs. |
