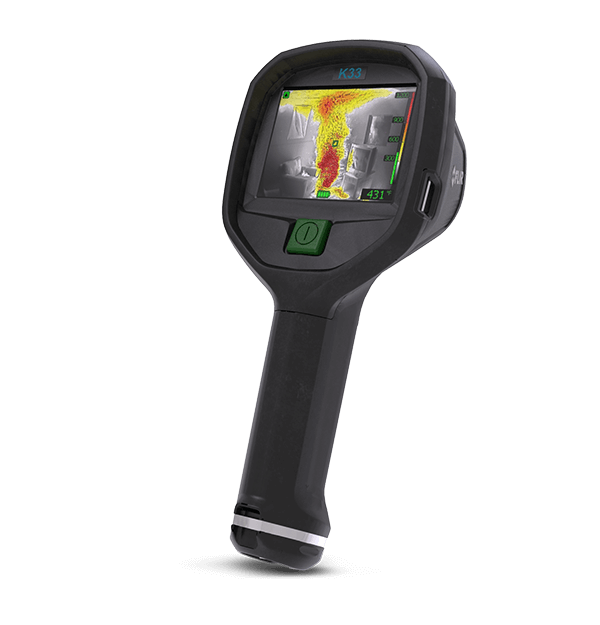

The Flir K33 thermal imaging camera with new, enhanced imaging is the solution fire departments need to ensure every firefighter has a TIC in the field. This low-cost, easy-to-use camera features FSX® Flexible Scene Enhancement for intensifies structural and textural details in thermal images. The enhanced perspective and orientation helps improve situational awareness and give firefighters a greater sense of confidence and safety.
High-Performance, Affordable TICs
One glove-friendly button starts the K33 in TI-Basic mode, while pulling and holding the trigger freezes the image.
240 × 180 resolution, a 60 Hz frame rate, and a bright 4" LCD all help you see more in smokey conditions.
The K33's affordable price helps fire and rescue departments get essential tools into the hands of those who could use them most.
Technische Daten
| Highlighted | |
|---|---|
| IR Resolution | 240 × 180 pixels |
| Display | 4 in. LCD, 320 × 240 pixels, backlit |
| Object Temperature Range | –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F) |
| Image Modes | TI Basic fire-fighting mode |
| Camera weight incl battery | 1.1 ±0.05 kg (2.4 ±0.1 lb.) |
| Camera size [L x W x H] | 120 × 125 × 280 mm (4.7 × 4.9 × 11 in.) |
| Imaging & Optical | |
|---|---|
| Contrast optimization | Digital image enhancement using FSX |
| Depth of Field | 0.84 m to infinity (33 in. to infinity) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| f number | 1.25 |
| Field of view [FOV] | 51° × 38° |
| Focal Length | 9 mm (0.35 in.) |
| Focus | Fixed |
| Image Frequency | 60 Hz |
| Image Modes | TI Basic fire-fighting mode |
| IR Resolution | 240 × 180 pixels |
| Non_radiometric IR video streaming | Uncompressed colorized video using USB |
| Pitch | 25 µm |
| Spatial resolution [IFOV] | 3.6 mrad |
| Spectral Range | 7.5–13 µm |
| Thermal Sensitivity_NETD | <40 mK @ 30°C (86°F) |
| Environmental & Certifications | |
|---|---|
| Drop | 2 m (6.6 ft.) on concrete floor (IEC 60068-2-31) |
| EMC | EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission) |
| Encapsulation | IP 67 (IEC 60529) |
| Humidity [operating and storage] | IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles |
| Magnetic fields | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Operating Temperature Range | -20°C to 60°C (-4°F to 140°F): infinity 150°C (302°F): 15 min. 260°C (500°F): 5 min. |
| Relative Humidity | 95% relative humidity +25°C to 40°C (77°F to 104°F) non-condensing |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | –40°C to 85°C (–40°F to 185°F) |
| Tripod Mounting | UNC ¼"-20 (adapter needed) |
| Vibration | 2 g (IEC 60068-2-6) |
| Power | |
|---|---|
| Battery capacity | 6.2 Ah, at 20°C to 25°C (68°F to 77°F) |
| Battery operating time | >5 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li Ion |
| Battery voltage | 3.6 V |
| Battery weight | 0.152 kg (0.3 lb.) |
| Charging system | Battery is charged inside the camera 2-bay charger Optional In-truck charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | 2 h to 85% capacity, charging status indicated by LEDs |
| Power Management | Automatic shutdown and sleep mode |
| Safety [power supply] | CE/EN/UL/CSA/PSE 60950-1 |
| Start Up Time | <17 s. (IR image, no GUI) |
| Start_up time from sleep mode | <4 s. |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) |
| Auto Range | Yes, selectable on/off using FLIR Tools® |
| Camera size [L x W x H] | 120 × 125 × 280 mm (4.7 × 4.9 × 11 in.) |
| Camera weight incl battery | 1.1 ±0.05 kg (2.4 ±0.1 lb.) |
| Isotherm | Yes |
| Object Temperature Range | –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F) |
| Set_up Commands | Local adaptation of units, date and time formats |
| Spot Meter | 1.0 |
| General | |
|---|---|
| Compatible with FLIR software | FLIR Tools® |
| Material | PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy |
| Packaging Size | 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.) |
| User Interface | |
|---|---|
| Display | 4 in. LCD, 320 × 240 pixels, backlit |
| Languages | English |
| Communication & Data Storage | |
|---|---|
| Image Storage | No JPEG storage; Image freeze: configurable |
| Image Storage Capacity | NA |
| Interfaces | Update from PC devices Data transfer to and from PC |
| USB | USB Mini-B |
