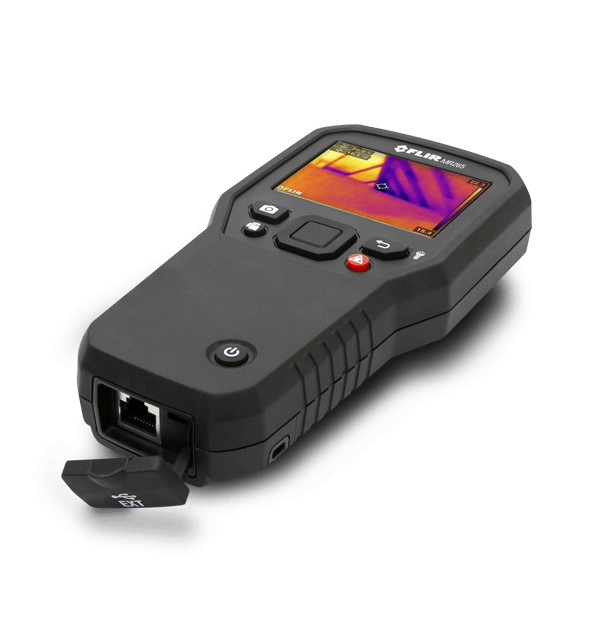

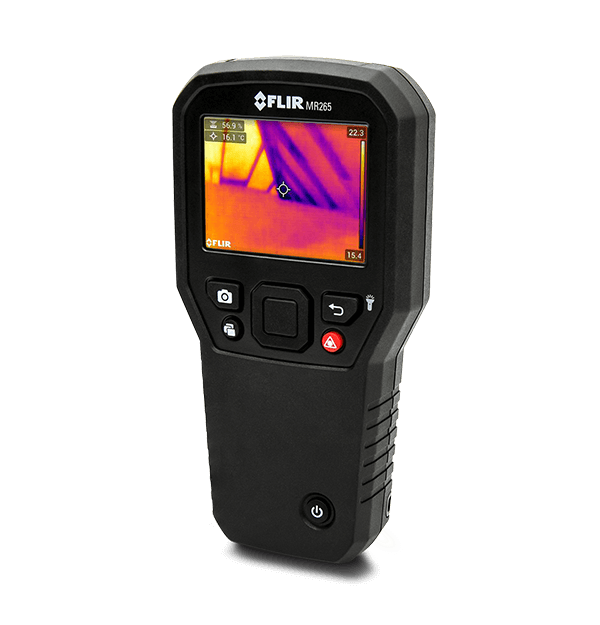

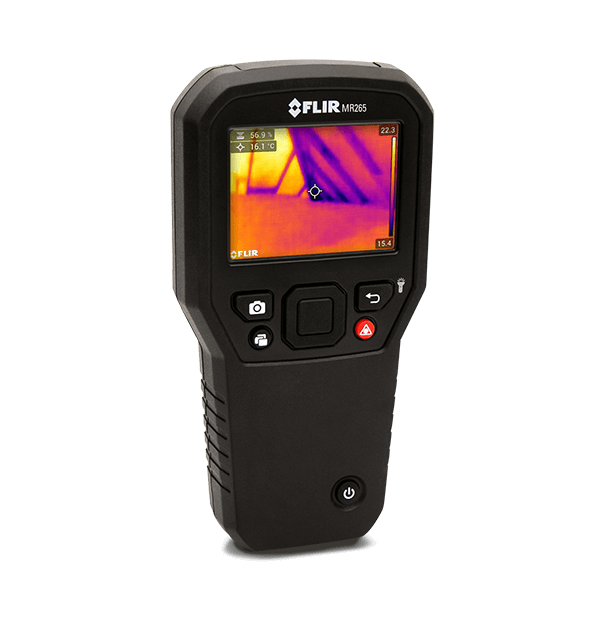

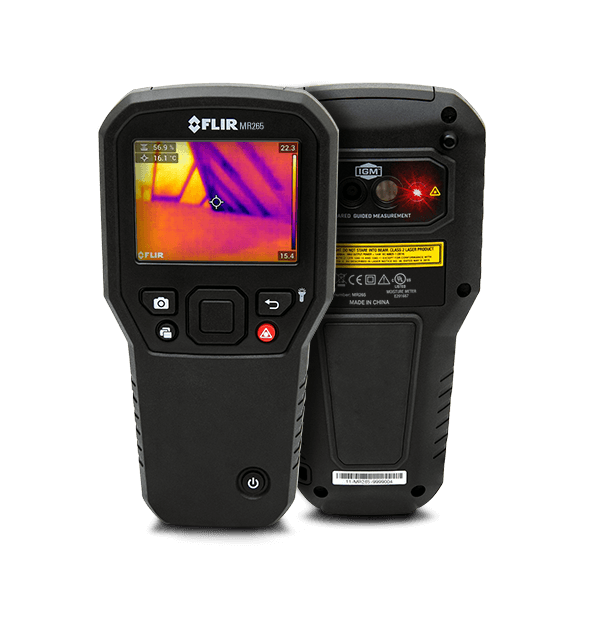

The FLIR MR265 is a professional pin and pinless moisture meter with thermal imaging designed to show you exactly where to investigate issues related to moisture, air leaks, and insulation voids. Featuring IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging enhancement) technology, the MR265 helps you quickly scan and target problem areas, visually guiding you to the spot where you can confidently take measurements, analyze readings, and ensure that problems are fixed. Using FLIR Thermal Studio™, you can then create and share professional reports that include findings and proof of repairs – giving your clients peace of mind that mold, rot, or moisture challenges have been resolved.
Pinpoint problems at the source using the 160 × 120 (19,200 pixels) built-in thermal camera, 2 MP visual camera, bright worklight, laser, and MSX, which embosses visual details onto thermal images
Assess moisture with pinless or pin measurements, and choose from a variety of optional, compatible probe accessories for flexibility and convenience on the job
Document both thermal and visual images before and after repairs, and create professional reports using FLIR Thermal Studio to better communicate problems and repairs
Technische Daten
| Highlighted | |
|---|---|
| MSX | Embosses visual details on full resolution thermal image |
| Thermal image palettes | Iron, Rainbow, Arctic, White-Hot, Black-Hot |
| Pin Moisture | Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only |
| Pin Moisture Groups | 11 Material Groups |
| Includes | FLIR MR265, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard |
| Imaging & Optical | |
|---|---|
| Digital Camera | 2MP, 83° FOV (70.5° HFOV x 56° VFOV) |
| Display Type | QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display |
| Field of View [W x H] | Thermal FOV 57° x 44° |
| Image Modes | Thermal, Visual, MSX® |
| Image Update Speed Frequency | 9 Hz |
| Imaging Detector | FLIR Lepton microbolometer |
| Laser Orientation | Single laser pointer to center of thermal image |
| MSX | Embosses visual details on full resolution thermal image |
| Sensitivity | <150 mK |
| Spectral Response | 8 to 14 µm |
| Thermal image minimum focus distance | 10 cm (4 in) |
| Thermal image palettes | Iron, Rainbow, Arctic, White-Hot, Black-Hot |
| Thermal Image Resolution [W x H] | 19,200 pixels (160 × 120) |
| Measurement & Analysis | |
|---|---|
| Image Calibration | Automatic with manual lock scale option |
| Measurement Resolution | 0.1 |
| Pin Moisture | Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only |
| Pin Moisture Groups | 11 Material Groups |
| Pinless Measurement Depth | 19 mm (0.75 in) max |
| Pinless Moisture Range | 0 to 100 |
| Response Time Pin Mode | 750 ms |
| Response Time Pinless | 100 ms |
| Communication & Data Storage | |
|---|---|
| Internal Memory | 8 GB |
| Saved Image File format | Radiometric JPEG |
| Stored Image Capacity | 15000 images |
| Power | |
|---|---|
| Auto Power Off | Programmable: off, 5, 10, 20 and 30 minutes |
| Battery | Rechargeable 3.7 V nominal, 5400 mAh LiPo |
| Continuous Run Time | 10 hours maximum |
| Typical Usage | 4 work weeks |
| General | |
|---|---|
| Includes | FLIR MR265, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard |
| Packaging Size | 28.5 × 14.5 × 10.5 cm (11.2 × 5.7 × 4.7 in) |
| Environmental & Certifications | |
|---|---|
| Agency Approvals | CE, RCM, FCC Part 15B, UKCA |
| Certification Standards | EN 61326 (EMC), EN 60825-1 Class 2 (laser), IEC61010-1 |
| Drop test | 2 m (6.6 ft) |
| Warranty | 10 year |
