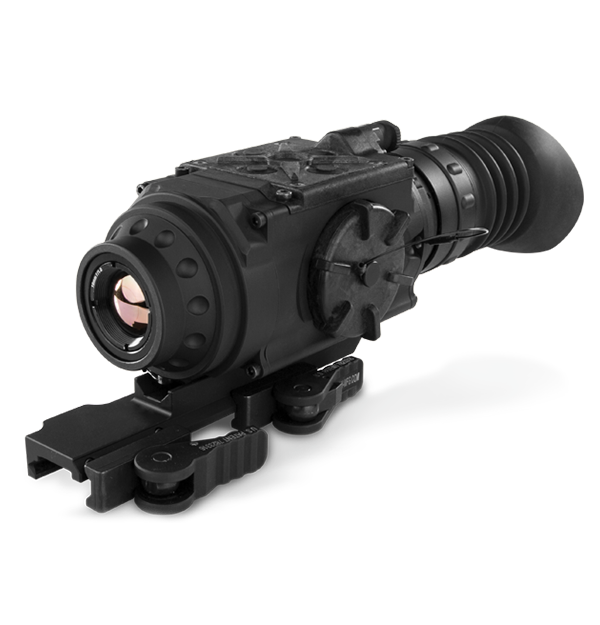

FLIR ThermoSight® PRO PTS233
Thermal Imaging Weapon Sight
Powered by the breakthrough FLIR Boson core, the ThermoSight Pro Series® PTS233 weapon sight sets the standard for thermal detection and classification. Featuring a 12 µm pixel pitch sensor and 19mm lens, the PTS233 delivers brilliant, clean thermal imaging with a 12° × 9.5° field of view for greater precision. The entire ThermoSight Pro Series offers an uncompressed video signal, a high definition display, and shot-activated video recording.
Specifications
| Highlighted | |
|---|---|
| Optical Magnification | 1.5x |
| Field of View | 12° x 9.5° |
| Sensor und optische Daten | |
|---|---|
| Boresight Adjustment Type | Digitally Controlled |
| Core | FLIR 12µm BOSON |
| Detector Type | 320 x 256 VOx Microbolometer |
| Diopter Adjustment Range | -5 to +5 dpt |
| Eye Relief | 45 mm |
| Field of View | 12° x 9.5° |
| Focus Range | 10m to infinity (not focusable) |
| Image Processing | FLIR Proprietary Digital Detail Enhancement™ |
| Lens System | 19 mm; F/1.0 |
| Optical Magnification | 1.5x |
| Umgebungsfaktoren und Zulassungen | |
|---|---|
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Stromversorgung | |
|---|---|
| Battery Life [Operating] | Up to 4 hr |
| Battery Type | 2 CR123A 3V Lithium batteries |
| External Power | Through USB-C port (5Vdc) |
| Dateispeicherung und Datenübertragung | |
|---|---|
| Internal Memory | Up to 2.5 hours of recorded video or up to 1,000 pictures |
| USB_C Connector | Digital Video Out, Laser Range Finder Connections |
| Video Output | Digital Video |
| Benutzeroberfläche/-funktionen | |
|---|---|
| Control Panel Buttons | Configures Operational Settings: Display Brightness Control Image Palette Control Digital Zoom Control Reticle Color Control Reticle Pattern Control Boresighting Adjustment On-Screen Menu Navigation |
| Display | Quad-VGA (1280 x 960) FLCOS |
| Operation Switch | On/ Off/ Standby Mode |
| Polarity | White Hot, Black Hot, Rainbow High Contrast, Ironbow, Sepia, Arctic, Outdoor Alert |
| Reticle Colors | Black, White, Red, and Cyan |
| Video Refresh Rate | 60 Hz |
| Systemübersicht | |
|---|---|
| Digital Zoom | 2x, 4x |
| Height of the Scope Axis above Rail | 1.65 in (42 mm) |
| Package Includes | Thermal Weapon Sight, CR123A Battery (2), Battery Cassette, Spare Battery Cassette, USB to USB Type C Cable (3'), Lens Cloth, Quick Start Guide, and Hard Carrying Case |
| Reticle Type | Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, Crossdash, and "No Reticle" |
| Size [L x W x H] | 8.7" × 2.7" × 3.3" (220 x 68 x 84 mm) |
| Weapon Mount Type | Picatinny, MIL-STD 1913, and Weaver Rails |
| Zoom | 1×, 2×, 4× |
| Physikalische Daten | |
|---|---|
| Color [housing] | Black |
| Weight | 0.65 kg (1.44 lbs) |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
