Discontinued

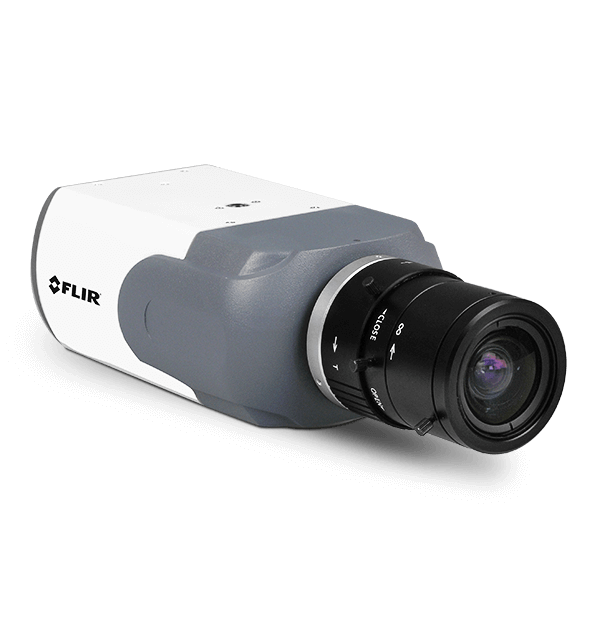

Quasar 5MP Fixed
Highest Quality. Lowest Bandwidth. Predictable Storage.
The Quasar CF-4251 series of HD 1440p / 5MP cameras is a best in class broadcast video quality camera that guarantees frame rates in high motion, complex and low light scenes, at the lowest bit rates.
Specifications
| Konformität und Zertifizierungen | |
|---|---|
| International | CE marked, EN55022-1998 class A, EN55024 |
| USA | UL, FCC Part 15 (subpart B, class A) |
| Cybersicherheit | |
|---|---|
| Security | User account and password protection |
| Umgebungsfaktoren | |
|---|---|
| Humidity | 95% (non-condensing) |
| Operating Temperature | Indoor: 0° to 50° C (32° to 122° F) Outdoor installation requires optional environmental housing (-30° to 50° C when used with CF-X200-01) |
| Storage Temperature | -20° to 70° C (-4° to 158° F) |
| Allgemeine Angaben | |
|---|---|
| 3D Noise Reduction | On / Off - 6 levels |
| AES | 1.0 to 1 / 10,000 (auto) |
| Day_Night Mode | Smart IR / auto / on/of |
| Dimensions | 115 L x 82 W x 52 H mm (without lens) |
| Enclosure | Metal case with 1/4 in. UNC-20 screw mounts on top and bottom |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM |
| Input Voltage | 12 VDC / 24 VAC ±10% or 802.3af PoE |
| Power Connection | 12 VDC / 24 VAC terminal block |
| Power Consumption | 6W |
| Privacy Zones | On / Off - 5 zones |
| Scanning Mode | Progressive |
| Tamper Detection | On / Of |
| Unit Weight | 398 g (14 oz.) |
| Warranty | According to DVTEL RMA Policy and Process Notice document |
| Messung und Analyse | |
|---|---|
| Automatic Gain Control | Auto |
| Systemintegration | |
|---|---|
| Alarm In | 1 dry alarm contact |
| Alarm Output | 1 relay contact, 60V AC / DC at 130 mA maximum |
| Audio Connections | 3.5 mm audio jacks |
| Bi_directional Audio | Full duplex, line / mic in and line out, G.711, G.726 |
| Configuration | Remote: via web access or supported video management software |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Network Protocol | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Supported Web Browser | Internet Explorer 8+ |
| Wärmebildkamera | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/2.5" CMOS |
| Lens Mount | C or CS lenses with manual or DC auto-iris |
| Wide Dynamic Range | On / Off - 3 levels |
| Visuelle Kamera | |
|---|---|
| Backlight Compression | On / Of |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/2.5" CMOS |
| Iris Control | DC auto |
| Mechanical IR Cut Filter | Yes |
| Sensitivity | Color: 0.1 Lux @ f1.4 / Night Mode: 0.03 Lux @ F1.4 at 30 IRE |
| Sensor Resolution | 2592 x 1944 |
| Signal to Noise Ratio | ≥50 dB |
| White Balance | Auto / indoor / outdoor |
| Wide Dynamic Range | On / Off - 3 levels |
| Video und Aufzeichnung | |
|---|---|
| Maximum Performance | H.264 15/12 FPS @ HD 1440p (NTSC/PAL) or H.264 12/12 FPS @ 5MP (NTSC/PAL) |
| Rate Control | CBR/VBR |
| Resolution Range | Scalable from CIF to HD 1440p / 5MP |
| SD Card Recording | SDHC up to 64GB |
| Video Bandwidth | Configurable between 64Kbps and 8Mbps |
| Video Compression | Fully compliant multi-stream H.264 main profile + MJPEG |
| Video Motion Detection | On / Off - 10 zones |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
