Discontinued

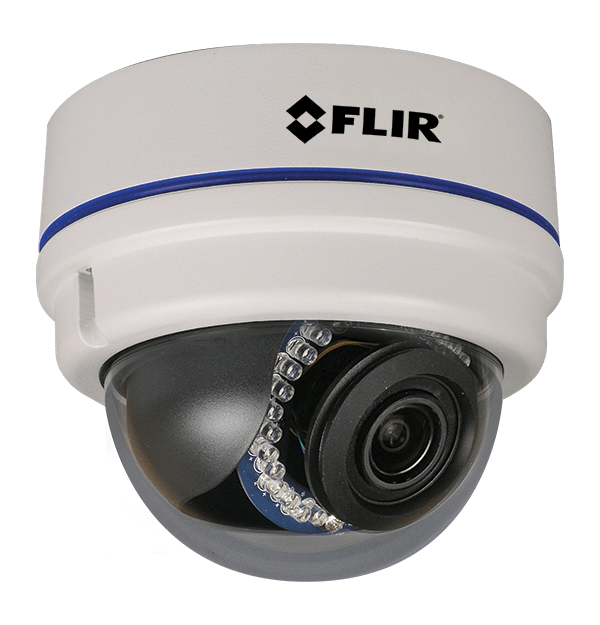

Quasar 5MP Mini-Dome
Specifications
| Konformität und Zertifizierungen | |
|---|---|
| International | l CE marked, EN55022-1998 class A, EN55024, RoHS |
| USA | UL, FCC Part 15 (subpart B, class A) |
| Cybersicherheit | |
|---|---|
| Security | User account and password protection |
| Umgebungsfaktoren | |
|---|---|
| Humidity | 95% (non–condensing) |
| Operating Temperature | Indoor: 0° to 50° C (32° to 122° F) Outdoor: –30° to 50° C (–22° to 122° F) |
| Storage Temperature | –20° to 70° C (–4° to 158° F) |
| Allgemeine Angaben | |
|---|---|
| 3D Noise Reduction | On / Off – 6 levels |
| AES | 1.0 to 1 / 10,000 (auto) |
| Bubble F_Stop | F0.0 - clear bubble / F1.0 - smoke bubble (option) |
| Bubble Rating | IK10 vandal resistant polycarbonate |
| Compression | Fully compliant multi-stream H.264 main profile + MJPEG |
| Day_Night Mode | Smart IR / auto / on/off |
| Dimensions | Indoor / Outdoor: 151 x 130 mm (5.9 x 5.1 in.) |
| Enclosure | Indoor: Tamper resistant surface mount plastic case or Indoor/Outdoor: IK10 rated vandal IP66 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| Input Voltage | 12 VDC / 24 VAC ±10% or 802.3af PoE |
| Power Connection | AC / DC terminal block or PoE |
| Power Consumption | 6W indoor or 13W outdoors with heater / fan / IR |
| Privacy Zones | On / Off – 5 zones |
| Scanning Mode | Progressive |
| Tamper Detection | On / Off |
| Unit Weight | Indoor: 0.8 Kg (1.8 lbs.) Outdoor: 1.3 Kg (2.9 lbs.) |
| Warranty | According to DVTEL RMA Policy and Process Notice documen |
| Messung und Analyse | |
|---|---|
| Automatic Gain Control | Auto |
| Schwenken/Neigen/Zoomen | |
|---|---|
| Pan_Tilt_Rotate | 350, 350 and ±90° |
| Systemintegration | |
|---|---|
| Angle of Illumination | Full 90° |
| Audio Connections | Terminal block |
| Bi_directional Audio | Full duplex, line / mic in and line out, G.711, G.726 |
| Configuration | Remote: via web access or supported video management software |
| Distance | 15 m (50 ft.) |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Input | 1 dry alarm contact |
| Network Protocol | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Number of IR LEDs | 24 |
| Output | 1 relay contact, 60V AC / DC at 130 mA maximum |
| Peak Emission Wavelength [nm] | 850 |
| Supported Web Browser | Internet Explorer 8+ |
| Wärmebildkamera | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/2.5" CMOS |
| Visuelle Kamera | |
|---|---|
| Backlight Compensation | On / Off |
| Bandwidth | Configurable between 64Kbps and 8Mbps |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/2.5" CMOS |
| Iris Control | DC auto |
| Lens Type | Varifocal: 3-9 mm F1.2 Auto Iris D/N Horizontal viewing angle: 40° to 110° Motorized with auto–focus |
| Mechanical IR Cut Filter | Yes |
| Sensitivity | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| Sensor Resolution | 5MP 2592x1944 |
| Signal to Noise Ratio | ±50 dB |
| WDR | On / Off – 3 levels |
| White Balance | Auto / indoor / outdoor |
| Video und Aufzeichnung | |
|---|---|
| Maximum Performance | H.264 30/25 FPS @ HD 1080 + 30/25 FPS @ D1 or 30+30 / 25+25 @ HD720 |
| Rate Control | CBR/VBR |
| Resolution Range | Scalable from CIF to HD 1440p/5MP |
| SD Card Recording | SDHC up to 64GB |
| Video Motion Detection | Up to 10 independent zones |
