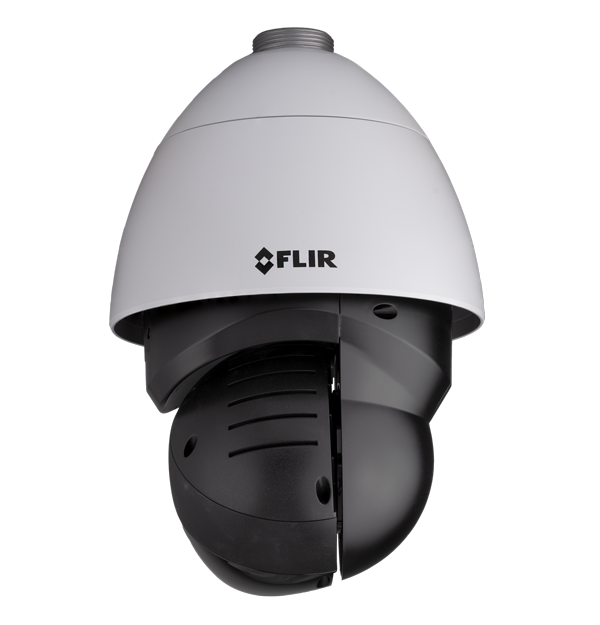

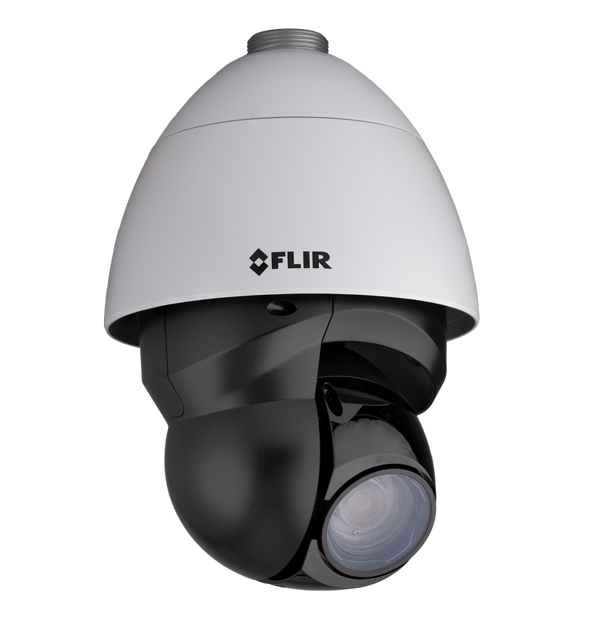

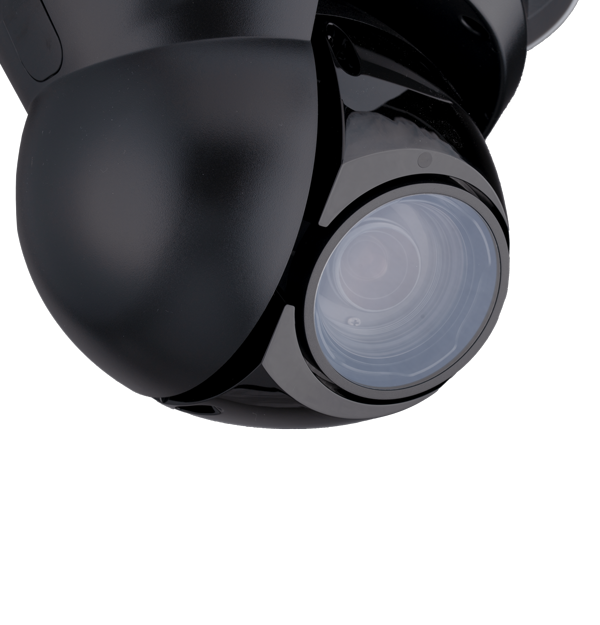

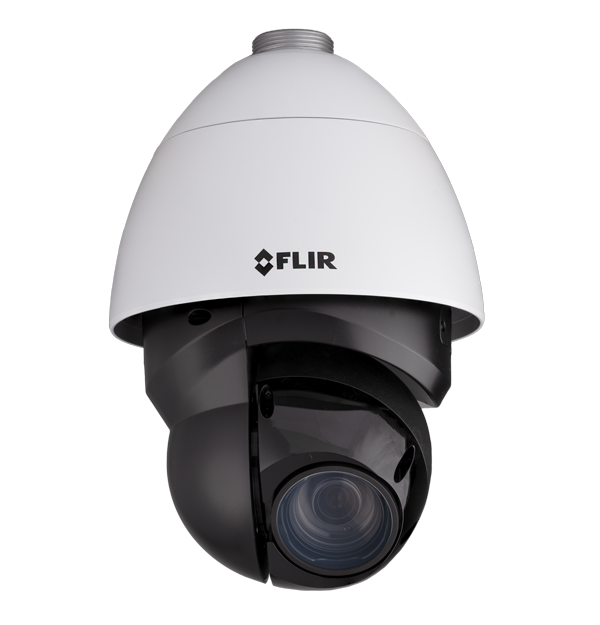

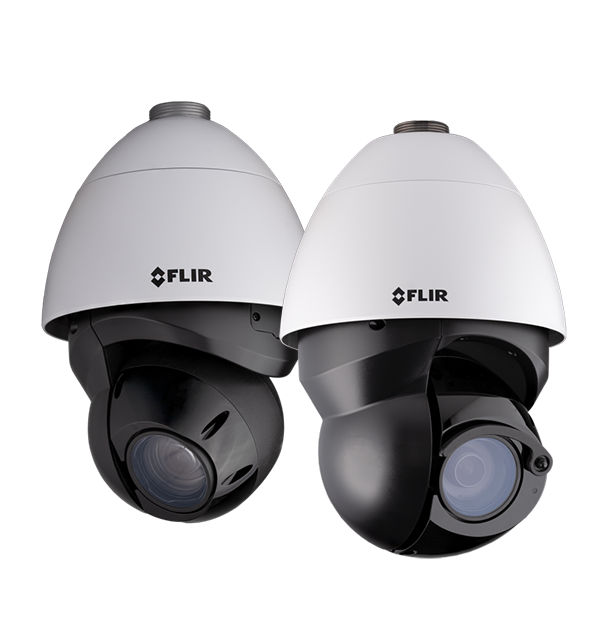

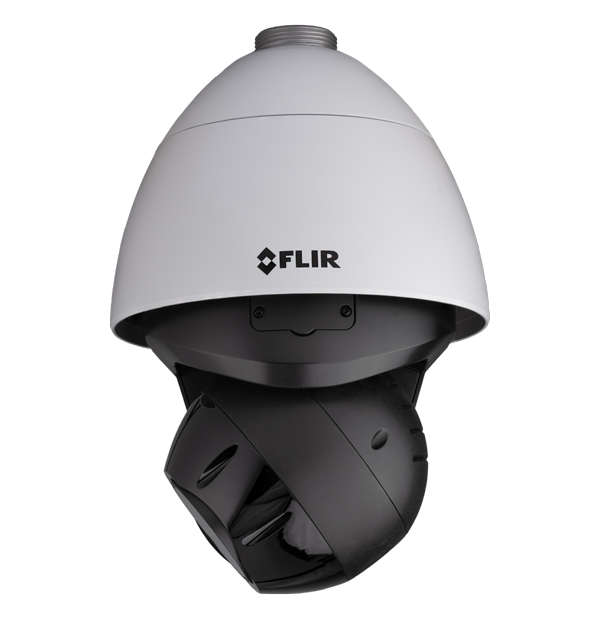

Quasar™ Premium 4K IR PTZ Security Camera
Premium 4K IR PTZ Security Camera with Edge AI
Product Variations
Experience unmatched surveillance performance with the FLIR Quasar Premium 4K IR PTZ cameras, available in 31x zoom models. Designed for critical infrastructure and wide-area monitoring, these powerful cameras deliver ultra-sharp 4K resolution with optical zoom precision to capture every detail—even at extreme distances. With built-in Edge AI analytics, the Quasar Premium PTZ intelligently detects and classifies people, vehicles, and potential threats in real time—reducing false alarms and enabling faster, more informed responses. Rugged, reliable, and engineered for 24/7 operation in challenging environments, the FLIR Quasar Premium is the smart choice for organizations demanding next-level situational awareness.
The FLIR Quasar Premium 4K IR PTZ delivers stunning ultra-high-definition imaging with up to 31x optical zoom, allowing operators to identify fine details across vast areas without sacrificing clarity. Whether monitoring perimeters, parking lots, or large-scale facilities, these cameras provide crystal-clear visuals both day and night, ensuring nothing goes unnoticed, even from a distance.
Built-in Edge AI analytics elevate situational awareness by automatically detecting, classifying, and tracking objects such as people and vehicles in real time. This onboard intelligence minimizes false alarms and supports faster decision-making by prioritizing only the most relevant security events, with no server required. It’s proactive monitoring that adapts to dynamic environments.
Designed for critical infrastructure and mission-critical deployments, the FLIR Quasar Premium PTZ is built to perform in challenging weather, lighting, and environmental conditions. With powerful infrared illumination and robust environmental housing, these cameras offer dependable 24/7 performance, making them ideal for airports, ports, city surveillance, and remote or high-risk sites.
Technische Daten
| Analytics | |
|---|---|
| Video Analytics | Abandoned object Intrusion detection Camera sabotage Wrong direction Loitering detection Object counting Object removal Stopped vehicle Face detection PTZ auto tracking |
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN 61000-6-3, EN 62368-1, EN 50130-4, CB 62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A, BIS, UKCA/UKNI |
| ONVIF Compliance | Profiles S, G, M & T |
| USA | FCC Part 15 (subpart B, class A, ICES-003) |
| Cyber Security | |
|---|---|
| Security | Password protection IP address filtering TLS/HTTPS IEEE 802.1X network access control Digest authentication Password policy Protect from multiple failure login |
| Environmental | |
|---|---|
| De_Icing_Defogging | Yes |
| Humidity | 10% to 90% (non-condensing) |
| Integrated Hardware | 4K 31x Zoom f/1.35 Camera with Wiper: Wiper 4K 22x Zoom f/1.5 Camera: NA |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) with heater 10% to 90%, no condensation |
| Safety Cable | Yes |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| General | |
|---|---|
| Automatic Electronic Shutter [AES] | 1/1 to 1/32,000 |
| Compression | Enhanced H.265 Main Profle + Enhanced H.264 Main/ High/Baseline Profle + MJPEG |
| Day_Night Mode | Yes |
| Dimensions | 4K 31x Zoom f/1.35 Camera with Wiper: 241 × 349 mm (9.49 × 13.74 in) 4K 22x Zoom f/1.5 Camera: 207 × 300 mm (8.15 × 11.81 in) |
| Electronic stabilization | Yes |
| Enclosure Rating | IK10, IP66 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | 4K 31x Zoom f/1.35 Camera with Wiper: PoE++ IEEE802.3bt, max 51.00 W 4K 22x Zoom f/1.5 Camera: PoE++ IEEE802.3bt, max 51.00 W AC 24 V, max 59.39 W, max 83.25 VA |
| Power Connection | RJ45, AC |
| Power Consumption | 4K 31x Zoom f/1.35 Camera with Wiper: Max 56.65 W (including heaters and IR LEDs) 4K 22x Zoom f/1.5 Camera: Max 59.39 W (including heaters and IR LEDs) |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Shutter WDR | 130 dB |
| Tamper Detection | Yes |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| Weight | 4K 31x Zoom f/1.35 Camera with Wiper: 5.5 kg (12.13 lb) 4K 22x Zoom f/1.5 Camera: 3.8 kg (8.38 lb) |
| Measurement & Analysis | |
|---|---|
| Analytics Management | Web-based configuration and management, adjustable sensitivity, automatic responses, remote I/O control |
| PTZ | |
|---|---|
| Auto Flip | Mechanical/Off |
| Home Function | Preset/Sequence/Auto Pan/Pattern |
| Horizontal Viewing Angles | Pan: 0°–360°, endless |
| Manual Speed | Pan: 0.1°–90°/s Tilt: 0.1°–55°/s |
| Pan_Tilt Travel | Pan: 0°–360° endless Tilt: -20°–100° |
| Power loss recovery | Yes |
| Preset Speed | Pan: 300°/s Tilt: 300°/s |
| Presets | 256.0 |
| Proportional Pan and Tilt | On/Off (pan and tilt speed proportional to zoom ratio) |
| Seq._Auto Pan_Pattern | 8/4/8 |
| System Integration | |
|---|---|
| Bi_directional Audio | Audio in, terminal block, G.711/G.726/AAC/ LPCM, Audio out |
| Distance | Angle of illumination | Up to 100 m 6°/30°/90° |
| Ethernet | 10/100/1000, IEEE802.3bt, auto sensing 1 × RJ45 |
| Input | Alarm in × 4, 5 V with 10 KΩ pull up, 100 mA @ room temperature |
| LED Type | High efficiency SMD |
| Network Protocol | IPV4/6, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP, Syslog, LDAP |
| Output | Alarm out × 2, Terminal Block, 400 V DC/AC, 120 mA |
| Peak Emission Wavelength [nm] | 850 nm |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Firefox, Chrome, Edge, Safari |
| Thermal Camera | |
|---|---|
| DSS | Default 1/4; options of 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1 |
| Image Sensor | 1/1.8”CMOS |
| Resolution | 3864 × 2180 (4K) |
| Sensitivity | 4K 31x Zoom f/1.35 Camera with Wiper: Color: 0.009 lux, B/W: 0.006 lux 4K 22x Zoom f/1.5 Camera: Color: 0.169 lux, B/W: 0.113 lux |
| Visible Camera | |
|---|---|
| Backlight Compensation | On/Off in linear mode |
| Bandwidth | Configurable between 64 Kbps and 20 Mbps |
| DSS | Default 1/4; options of 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1 |
| Image Sensor | 1/1.8”CMOS |
| Lens Type | 4K 31x Zoom f/1.35 Camera with Wiper: 31× zoom lens, P-Iris, Auto-Iris, f/1.35,
6.9–214.6 mm 4K 22x Zoom f/1.5 Camera: 22× Zoom lens, P-Iris, Auto-Iris, F 1.5, 6.4–138.5 mm |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D/2D/Color NR |
| Resolution | 3864 × 2180 (4K) |
| Sensitivity | 4K 31x Zoom f/1.35 Camera with Wiper: Color: 0.009 lux, B/W: 0.006 lux 4K 22x Zoom f/1.5 Camera: Color: 0.169 lux, B/W: 0.113 lux |
| Signal to Noise Ratio | ±45 dB |
| White Balance | Auto/ATW/Manual/One Push |
| Video & Recording | |
|---|---|
| Maximum Performance | Up to 4 individually configurable streams in H.265/H.264/MJPEG Configurable resolution/frame rate/bandwidth/ LBR/ VBR/CBR in H.265/H.264 |
| Rate Control | LBR, CBR, VBR |
| Resolution Range | 320 × 480 to 3840 × 2160 @30 fps |
| SD Card Recording | microSD/microSDHC/microSDXC size up to 1 TB (excluding countries where disallowed); file encryption |
| Video Motion Detection | Yes |
