Discontinued

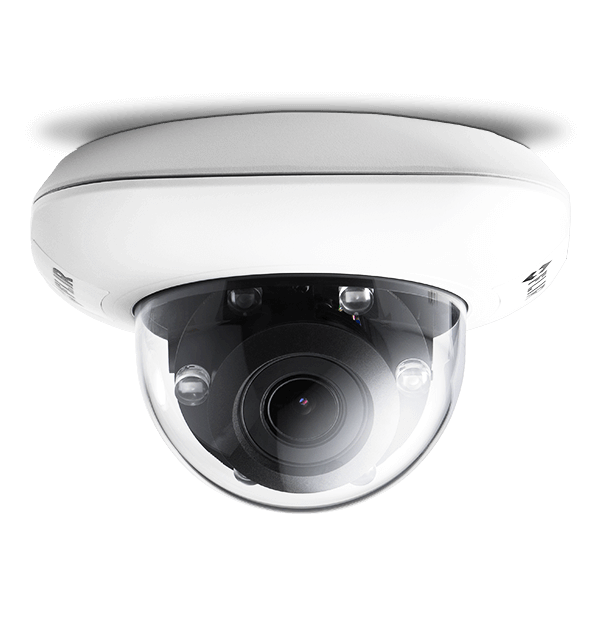

Quasar Quad HD Mini-Dome
The Ariel CM-3102 camera series with Full HD 1080p video guarantees frame rates in high motion, complex and low light scenes and lowers overall utility costs and carbon footprint
Specifications
| Allgemeine Angaben | |
|---|---|
| AES | 1.0 to 1 / 10,000 (auto) |
| Day_Night Mode | Smart / Auto / On / Off |
| Privacy Zones | On / Off - 5 zones |
| Scanning Mode | Progressive |
| Tamper Detection | On / Off / schedule |
| Messung und Analyse | |
|---|---|
| Automatic Gain Control | Auto |
| Systemintegration | |
|---|---|
| Angle of Illumination | Full 60° |
| Audio Connections | Terminal block |
| Bi_directional Audio | Full duplex, line in and line out, G.711, G.726 |
| IR Distance | up to 40 m (131 ft.) |
| Number of IR LEDs | 6 high power / high efficiency SMD type |
| Wärmebildkamera | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/3" BSI CMOS |
| Visuelle Kamera | |
|---|---|
| Backlight Compression | On / Off |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/3" BSI CMOS |
| Iris Control | P-iris |
| Lens Type | CM-6204-11-I: Varifocal 3-8mm, 96°-38° HFOV, F1.4 CM-6204-21-I: Varifocal 7-22mm, 42°-14° HFOV, F1.4 Motorized with auto-focus, Auto-Iris/P-Iris, D/N |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 2D / 3D / Color |
| Sensitivity | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| Sensor Resolution | 2688 x 1520 |
| Signal to Noise Ratio | ±50 dB |
| White Balance | Auto / indoor / outdoor / ATW / manual |
| Wide Dynamic Range [Multi_shutter] | 2-shutter (93dB) / On / Off |
| Video und Aufzeichnung | |
|---|---|
| Maximum Performance | H.264 30/25 FPS @ 1440p + D1 (NTSC/PAL) or H.264 15/12 FPS @ 1440p + 720p + D1 (NTSC/PAL) |
| Rate Control | CBR/VBR |
| Resolution Range | Scalable from CIF to QHD 1440p |
| SD Card Recording1 | Micro SDXC up to 128GB (Class 10) |
| Video Bandwidth | Configurable between 64Kbps and 20Mbps |
| Video Compression | Fully compliant multi-stream H.264 main/high/SVC/ baseline profile + MJPEG (FHD) |
| Video Motion Detection | On / Off / schedule |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
