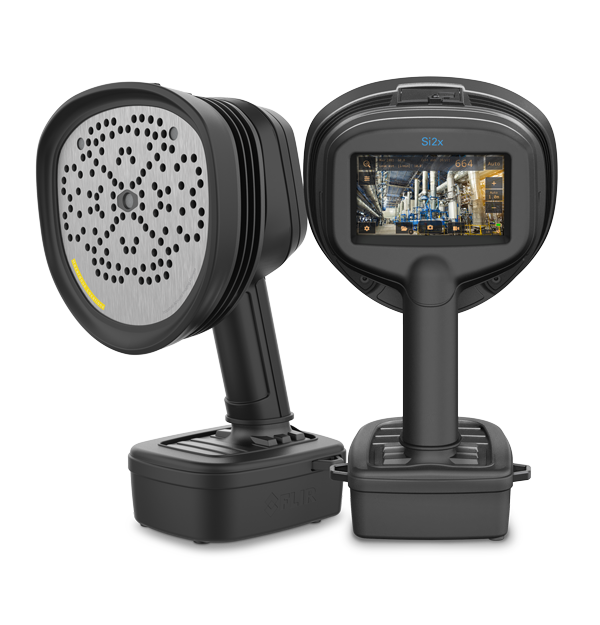

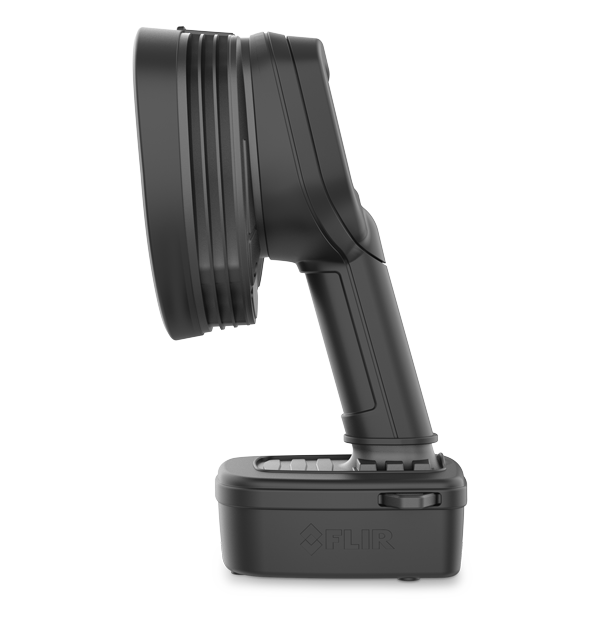

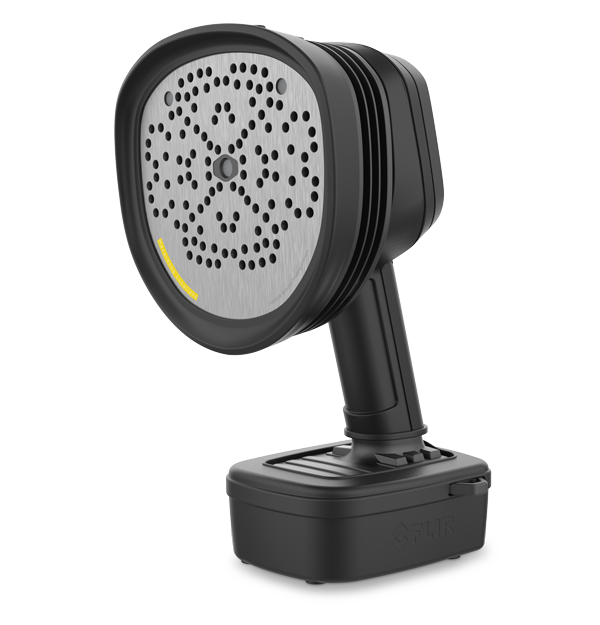

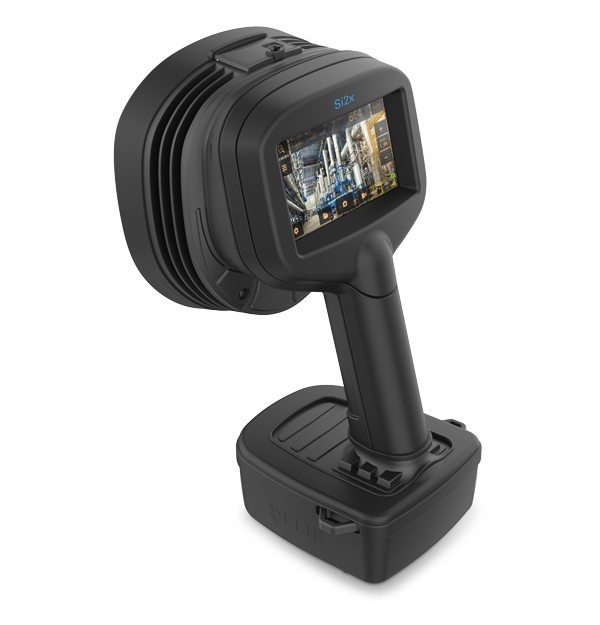

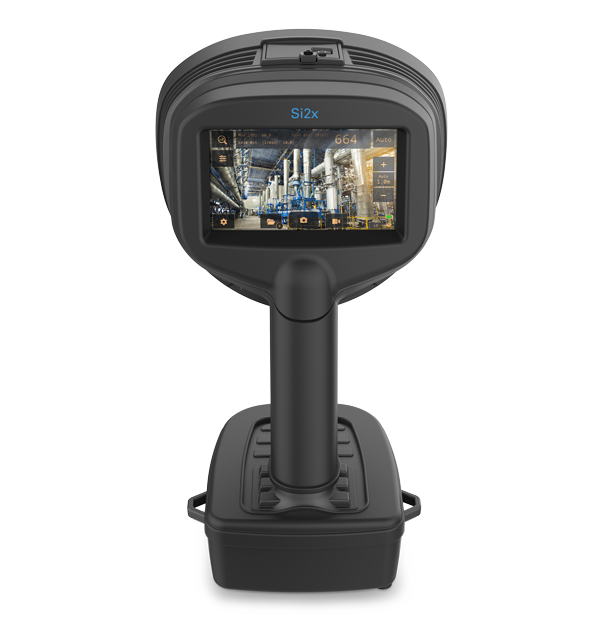

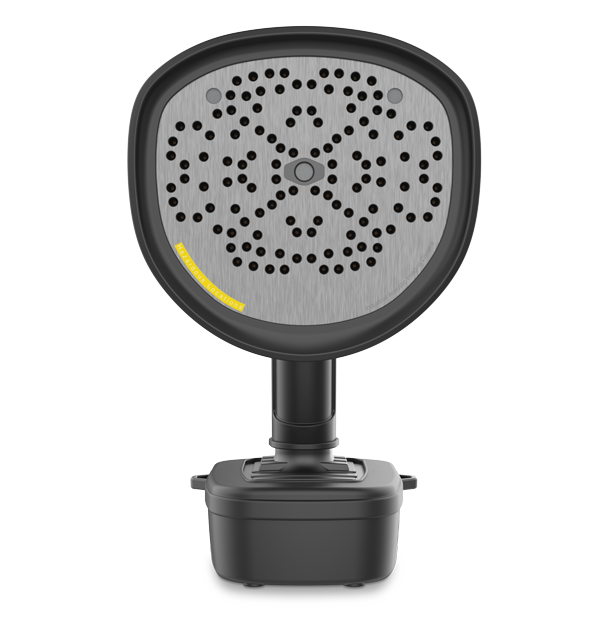

FLIR Si2x-LD™
Hazardous Location Acoustic Imaging Camera for Pressurized Leak Detection and Mechanical Fault Detection
The Si2x-LD Acoustic Imaging Camera is specifically designed for use in hazardous gas and explosive dust environments, to easily reduce leaks of toxic or flammable gases to improve safety, or cut expenses associated with compressed air or gas leaks in your facilities. With its advanced analysis tools, the Si2x-LD provides a robust solution for lowering costs associated with mechanical bearing issues. Engineered for hazardous operations, it offers best-in-class performance, decision support, and fleet management, along with enterprise data integration for optimal efficiency and safety.
For those requiring partial discharge detection, you can opt for the Si2x-Pro for PD, leak. and mechanical fault detection.
Whether it’s a small hiss or a hard-to-find leak, this camera can identify and quantify compressed air and specific gas leaks from up to 200 m (656 ft) away, making it indispensable for ensuring operational efficiency and safety.
Save on costly repairs, reduce downtime, and enhance maintenance efficiency by identifying bearing and other mechanical defects before they overheat or cause equipment failure.
Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates. Combine acoustic and thermal imaging in the same report.
Technische Daten
| Highlighted | |
|---|---|
| Acoustic Measurement | 124 low-noise MEMS microphones, real-time sound visualization |
| Distance | From 0.3 m (1.0 ft) up to 200 m (656 ft) |
| Leak Rate | 0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft) |
| Imaging & Optical | |
|---|---|
| Camera software update | Automatic Over The Air (OTA) wireless update or via USB connection |
| Field of view [FOV] | 75° diagonal |
| Video Frame Rate | Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps |
| Video Image Resolution | 1280 × 720 |
| Zoom | 8x Digital zoom |
| Measurement & Analysis | |
|---|---|
| Acoustic Measurement | 124 low-noise MEMS microphones, real-time sound visualization |
| Bandwidth | 2 kHz to 130 kHz |
| Detection Threshold | 20 kHz: -8 dB SPL 35 kHz: 4 dB SPL 50 kHz: 13 dB SPL 80 kHz: 42 dB SPL 100 kHz: 58 dB SPL |
| Detects Following Gases | Compressed Air, Nitrogen, Ammonia, Hydrogen, Carbon Dioxide, Methane, Helium, and Argon |
| Distance | From 0.3 m (1.0 ft) up to 200 m (656 ft) |
| Leak Rate | 0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft) |
| Mechanical Analysis | Mechanical Sound Indicator (MSI) Confirmation, Sound Pressure Level (dB), Crest factor, Kurtosis factor |
| User Interface | |
|---|---|
| Display | Size: 5 in. 1280 × 720 Resistive touch screen, TFT LCD, MIPI DSI |
| Power | |
|---|---|
| Battery | Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh Max output: 16.8 V DC, 5 A Charge time: approx. 2 h |
| Battery Charger | Input: 19-26 V DC, 2.8 A Max output: 17.4 V DC, 4.8 A |
| Battery weight | ~ 0.25 kg |
| Nominal Input Voltage | Nominal input voltage: 12 V DC Max input: 17 V DC , 3.3 A (limited) |
| Environmental & Certifications | |
|---|---|
| Explosive [hazardous] Environment | Ex II 3 G Ex ic IIC T4 Gc Ex II 3 D Ex ic IIIC T135°C Dc Tamb -10°C to 40°C |
| Operating And Storage Humidity | 0-90% recommended |
| Operating Temperature Range | –10°C to 50°C (14°F to 122°F) |
| Protection Class | IP54 |
| Storage Temperature Range | –20°C to 70°C ( –4°F to 158°F) |
| Warranty | support.flir.com/Si2 |
| General | |
|---|---|
| Size | 188 × 313 × 176 mm (7.5 × 12.5 × 7 in) |
| Weight | ~ 2.1 kg (4.5 lbs) |
| Worklights | LEDs, 2 modes: On/Off |
