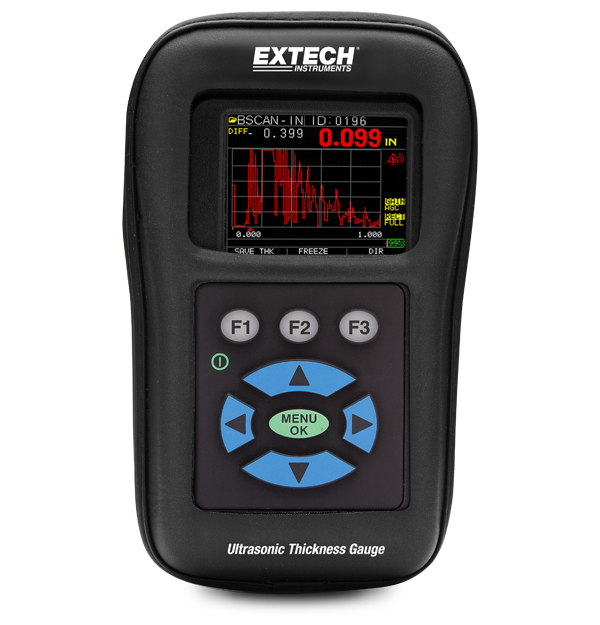

Extech TKG250
Digital Ultrasonic Thickness Gauge/Datalogger with Color Waveform
The Extech TKG250 is a Digital Ultrasonic Thickness Gauge/Data logger with Color Waveform function. It offers thickness gauges designed in compact, handheld, rugged housing which is ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. It data logs up to 100 K readings and can be exported to Excel® for further analysis. Complete with protective holster, 2 oz bottle of coolant, 2 AA batteries, 5 MHz transducer, hard carrying case, USB cable, and exporter software.
Technische Daten
| General | |
|---|---|
| Alarm | Audible beeping; illuminae flashing display and keypad; and vibration feedback |
| A_Scan [Live Waveform] | Full adjustments for gain in 1dB step or AGC, main bang blank, blank after first received echo, range including zoom auto tracking to center echoes independent of material and rectification |
| B_Scan [Cross Section] | Displays a visual cross section of inspection area with no correlation to distance |
| Differential Mode | Displays the difference from the actual thickness measurement and a user entered reference value |
| Echo to Echo | Measure the metal thickness only (paint and coatings do not affect base material thickness value) |
| Gain | In 1dB steps from 20-90dB or Automatic Gain Control (AGC) for waveform |
| Material Velocity Calibration | 0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS) |
| Memory | Stores 50k readings (expandable to 100k) and 5,000 waveforms |
| Rectification Mode | RF, Half Wave Positive, Half Wave Negative and Full Wave Rectification |
| Steel Thickness | 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm) |
| Velocity Mode | Displays acoustic sound speed to measure thickness of unknown materials |
| Additional Details | |
|---|---|
| Certifications | CE |
| IP Rating | IP54 |
| Power | 2 × AA (1.5V) batteries |
| Warranty | 2 years |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
