Abgekündigt

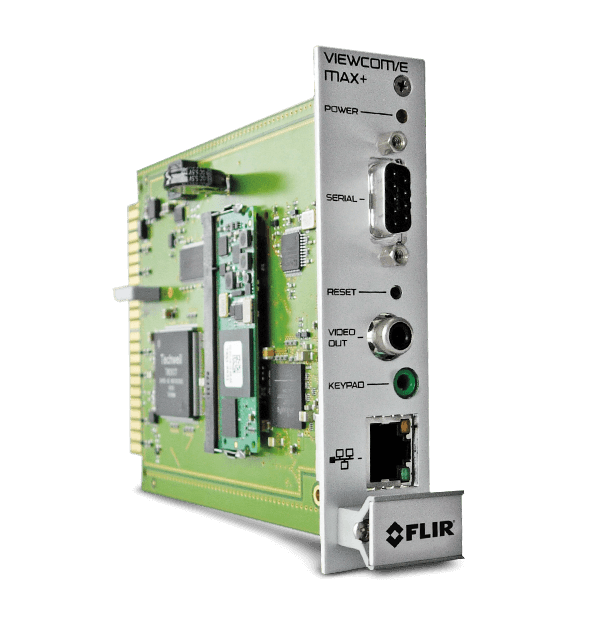

ViewCom/E MAX+
Multi-functional video detection boards
The VIP series offers multi-functional Video Image Processing modules for traffic control. VIP boards integrate automatic incident detection, data collection, recording of pre and post incident image sequences and streaming video in one board. VIP modules have been installed for road and tunnel projects all over the world.
Connect VIP Boards to Your Network
Connect to ViewCom/E Max+ over a web browser to real-time monitoring of your VIP detector boards' streaming video
View board video outputs and set up exclusion and trigger zones from your central network hub.
No computer required -- just connect to a video monitor for user-friendly setup of zone positioning and detection.
Technische Daten
| Communications | |
|---|---|
| Analogue Video | Video output with system info |
| Compatibility | Compatible with 170, 2070, NEMA TS1 & TS2 and ATC controllers |
| Composite Video | (RCA) out with system info |
| Connector | Double row 22 pins EDGE (NEMA TS 2-1992) |
| Ethernet | Ethernet (TCP/IP) communication |
| Indicators | Auto diagnostic LED indicators |
| Input | 6 composite video inputs - 1 Vptp RS-170(A) / CCIR Power Supply Reset button on front panel |
| Ports | Keypad control port RS-232 communication port RS-485 (polling of the detector boards) |
| Electrical | |
|---|---|
| Consumption | 170mA @ 24V DC |
| FCC | FCC Part 15 Class A |
| Power | +10.8V DC to +26,5V DC |
| Environmental | |
|---|---|
| Humidity | 0 to 95% relative humidity - non-condensing |
| Operating Temperature | |
| Shock & Vibration | NEMA TS 2 |
| Mechanical | |
|---|---|
| Dimensions | 4.5 x 1.1 x 7.0 in (114 x 28 x 178 mm) |
