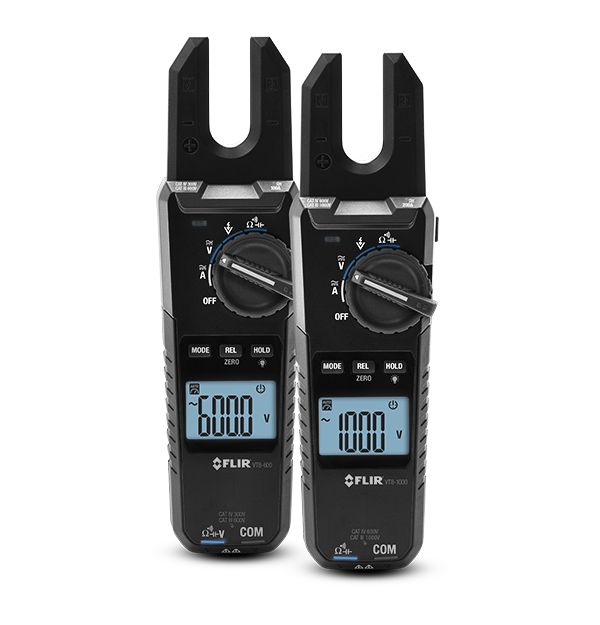

The FLIR VT8-Series are high-quality voltage, continuity, and current testers. They feature an optimized, open-jaw design that can fit into tight spaces and reliably measure large-diameter cables. The VT8-600 carries a CAT III-600 V/CAT IV-300 V safety rating and a 100 A/600 V measuring range, while the VT8-1000 carries a CAT III-1000 V/CAT IV-600 V safety rating and a 200 A/1000 V measuring range. Extensive measurement features make the VT8-Series versatile tools – just one meter can get the job done.
Your go-to troubleshooting electrical tester
Made with the quality and reliability you have come to expect from FLIR test and measurement tools
Equipped with the capabilities you need including True RMS, AC/DC voltage and current, continuity, resistance, and capacitance
Take measurements in tight spaces with the optimized jaw design, and measure large-diameter cables with the wide jaw opening
Technische Daten
| Highlighted | |
|---|---|
| Non_Contact Voltage Detector [NCV] | >100 Vrms; <10 mm distance (LED/buzzer alerts) |
| Drop test | 2 m (6.6 ft) |
| Warranty | Limited 3-year |
| Measurement & Analysis | |
|---|---|
| AC_DC Current Accuracy | VT8-1000: ±2.5% (50 to 60Hz) VT8-600: ±2.5% (50 to 60 Hz) |
| AC_DC Current Range | VT8-1000: 200 A VT8-600: 100 A |
| AC_DC Current Resolution | 0.1 A |
| AC_DC Voltage Resolution | 0.1 V |
| AC_DC Volts Accuracy | VT8-1000: ±1.5%, ±1.0% (56 to 66 Hz)
VT8-600: ±1.5%, ±1.0% (45 to 66Hz) |
| AC_DC Volts Range | VT8-1000: 1000 V VT8-600: 600 V |
| Additional Measurement Functions | DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold |
| Auto Range | Yes |
| Capacitance | 600 µF ±4.0%, 6000 µF ±10.0% |
| Continuity check threshold | 10 Ω to 100 Ω |
| Display Rate | Approximately 3 times per second |
| Over_Range Indication | "OL" or "-OL" displayed |
| Polarity | Automatic display of positive and negative polarity |
| Resistance | 60.00 MΩ ± (1.5%) |
| True RMS | Yes |
| User Interface | |
|---|---|
| Display | 6000-count backlit multi-function LCD |
| Environmental & Certifications | |
|---|---|
| Agency Approvals | C-UL-US, CE, RCM |
| Drop test | 2 m (6.6 ft) |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Relative Humidity | 95% max; 5 to 30°C (41 to 86°F) 75% max; 30 to 40°C (86 to 104°F) 45% max; 40 to 50°C (104 to 122°F) |
| Storage Temperature | –30 to 60°C (-22 to 140°F), batteries not installed |
| Warranty | Limited 3-year |
| General | |
|---|---|
| Dimensions [W x H x D] | 210 × 53 × 35 mm (8.27 × 2.1 × 0.67 in) |
| Jaw Opening | 15.5 mm (0.61 in) |
| Worklights | White LED |
| Power | |
|---|---|
| Auto Power Off | After 15 minutes |
| Low Battery Indication | Battery symbol is displayed when batteries need changing |
| Non_Contact Voltage Detector [NCV] | >100 Vrms; <10 mm distance (LED/buzzer alerts) |
| Power Source | 2 x AA alkaline batteries |
