Discontinued

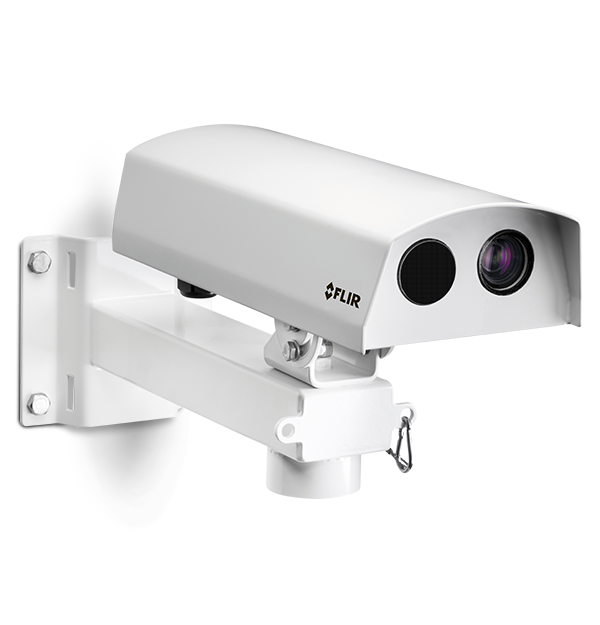

ITS-Series Dual AID
Dual-vision camera for Automatic Incident Detection
Product Variations
FLIR ITS-Series Dual AID cameras combine best-in-class thermal and visual imaging technology with advanced video analytics to provide a complete solution for automatic incident detection, data collection and early fire detection. FLIR’s traffic video analytics have proven their effectiveness worldwide along highways and in tunnels and are now combined with the power of thermal imaging that allows traffic operators to see clearly in total darkness, in bad weather and over a long range.
Combining visible-light and thermal vision for traffic applications
The FLIR ITS-Series AID offers long-range, 24/7 performance, regardless of weather conditions.
The visible-light camera enables real-time visual incident verification and offers possible forensic evidence after the incident
FLIR ITS-Series AID provides critical information on traffic incidents and detects fires within seconds of ignition.
Technische Daten
| Communications | |
|---|---|
| Interfaces | 10/100 Mbps Ethernet (RJ-45) or Direct fiber connector (MM, SM) |
| Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMPv1/2/3, QoS, ONVIF, 802.1X |
| Video Over Ethernet | Two independent channels for each camera (4 total) of streaming H.264 or M-JPEG |
| Electrical | |
|---|---|
| Consumption | 12 W heater off, 21 W heater on |
| Environmental | |
|---|---|
| Housing material | Stainless steel 316L |
| Operating Temperature Range | -30 to 75°C (-22 to 167°F) with sunshield – Nema TS-2 |
| Relative Humidity | 0% to 100%, no condensation |
| Imaging & Optical | |
|---|---|
| Detector Type | Focal Plane Array (FPA), uncooled Vanadium Oxide Microbolometer |
| HFOV, Thermal | ITS-669 Dual AID 316L, 640 x 512, 69° FOV: 69° ITS-644 Dual AID 316L, 640 x 512, 44° FOV: 44° ITS-632 Dual AID 316L, 640 x 512, 32° FOV: 32° ITS-625 Dual AID 316L, 640 x 512, 25° FOV: 25° ITS-617 Dual AID 316L, 640 x 512, 17° FOV: 17° |
| Image Frequency | NTSC: 30 Hz PAL: 25 Hz |
| Image Processing | Automatic Gain Control (AGC), Digital Detail Enhancement (DDE) |
| Image Sensor | 1/3" Sony CMOS sensor |
| Resolution, Thermal | 640 x 512 |
| Resolution, Visual | Max: 1920 x 1080 |
| Spectral Range | 7.5 to 13.5 µm |
| Streaming Resolutions | Visual: up to 1920 x 1080 @ 30 Hz
Thermal: up to 640 x 480 @ 30 Hz |
| Mechanical | |
|---|---|
| Dimensions | Housing only: 185 x 102.24 x 409 mm With bracket: 346 x 256 x 409 mm |
| Mounting | Wall, pole, ceiling mount |
| Weight | 5 kg |
| System Overview | |
|---|---|
| Fire Detection | Early fire detection in tunnels |
