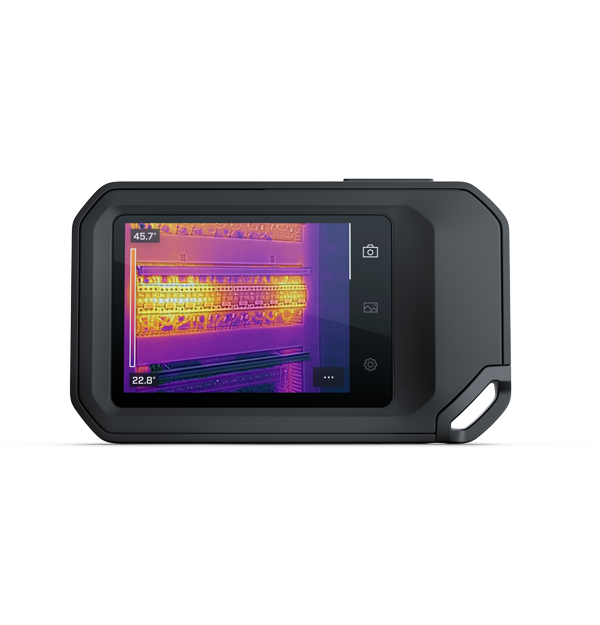

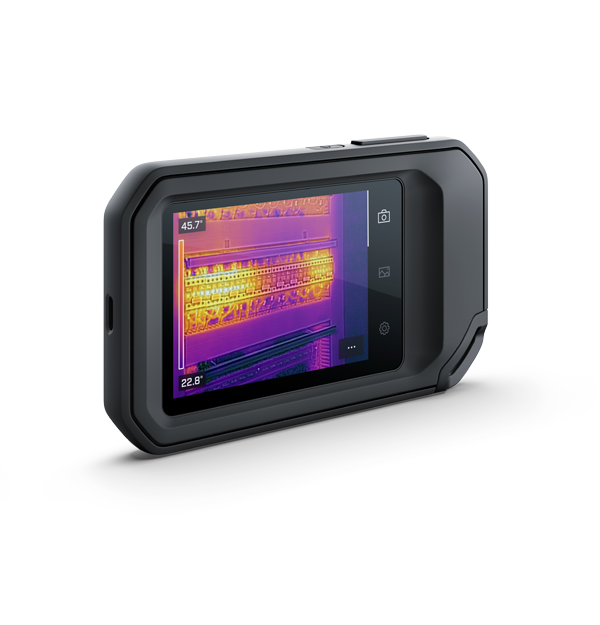

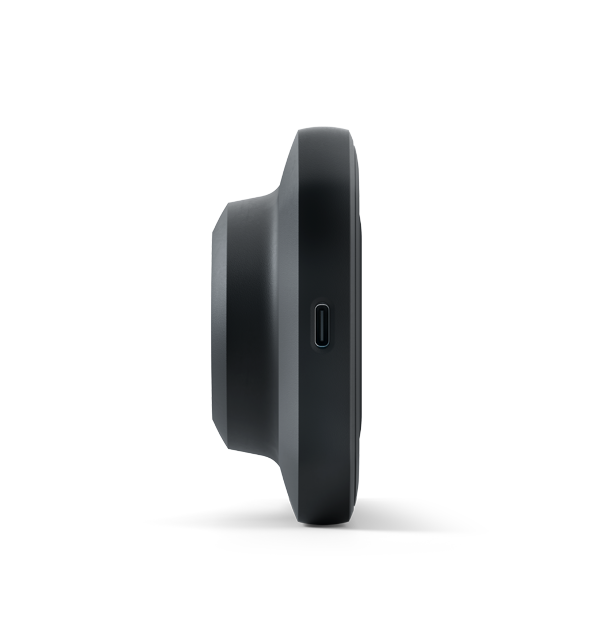

Flir C8
Compact thermal imaging camera
Top application
- Mechanical Inspection
- Residential Electrical Inspection
- Building Diagnostics & Indoor Air Quality
Flir C8 compact thermal imaging camera is designed to deliver faster, clearer, and more reliable inspections. Featuring 320 × 240 thermal resolution with MSX® detail enhancement, the C8 captures sharp thermal images for accurate diagnostics. Integrated Flir Ignite cloud connectivity and advanced reporting templates streamline workflows, save time, and support easy collaboration.
All new C8 purchases include a 12-month Flir Ignite™ Pro subscription, camera onboarding, and user guide, as well as IR Fundamentals training from Flir Academy, making it the best value thermal imaging camera of its class and an essential tool for your daily work.
Avantages du Flir C8
Identifiez les problèmes rapidement et en toute confiance grâce à une résolution élevée, une sensibilité thermique élevée et des alarmes isothermes qui prennent en charge des résultats cohérents et reproductibles.
Les images sont automatiquement téléchargées sur Flir Ignite pour un stockage sécurisé, un accès plus facile et des rapports standardisés, réduisant ainsi les étapes manuelles et la perte de données.
Les modèles d’inspection prédéfinis dans Ignite Pro accélèrent l’analyse et la documentation, ce qui facilite le partage des résultats avec les équipes ou les clients.
Quelles sont les nouveautés de la C8 ?
Flir Ignite Pro : Abonnement de 12 mois inclus
Logiciel cloud de stockage d’images thermiques et de création de rapports
Spécifications
| Highlighted | |
|---|---|
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity_NETD | <50 mK |
| Accuracy | Accuracy at ambient temp. 10°C to 35°C (50°F to 95°F) and object temp. above 0°C (32°F): • 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F) • 100°C to 450°C (212°F to 842°F): ±2% |
| Field of view [FOV] | 35° × 27° |
| Digital Camera | 5 MP, Fixed focus, 71.5° × 56° (84° diagonal) field of view |
| Image Modes | • Infrared image • Visual image • MSX • Picture in picture (IR area on visual image) |
| Display | 3.5 in, auto orientation |
| Storage Media | Built-in |
| Imaging & Optical | |
|---|---|
| Automatic Image Adjustment | • Automatic level and span |
| Camera software update | • Automatic over Wi-Fi • USB via computer |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array, uncooled microbolometer |
| Digital Camera | 5 MP, Fixed focus, 71.5° × 56° (84° diagonal) field of view |
| Digital Zoom | Yes, zoom pinch, 1–4× continuous |
| Display resolution | 640 × 480 pixels |
| f number | 1.4 |
| Field of view [FOV] | 35° × 27° |
| Focus | Focus free |
| Image Frequency | 9 Hz |
| Image Modes | • Infrared image • Visual image • MSX • Picture in picture (IR area on visual image) |
| IR Resolution | 320 × 240 pixels |
| Manual Image Adjustment | • Manual level and span • 1-Touch level and span |
| Minimum Focus Distance | 0.4 m (1.3 ft) |
| Spatial resolution [IFOV] | 2.0 mrad/pixel |
| Spectral Range | 7.5 to 13 µm |
| Thermal Sensitivity_NETD | <50 mK |
| Video Streaming | Yes; MSX, Thermal, Visual, Picture in Picture. USB Video Class colorized uncompressed with overlay 9 Hz. |
| Measurement & Analysis | |
|---|---|
| Accuracy | Accuracy at ambient temp. 10°C to 35°C (50°F to 95°F) and object temp. above 0°C (32°F): • 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F) • 100°C to 450°C (212°F to 842°F): ±2% |
| Measurement Tools | • Spot • Box with max./min. • Isotherm |
| Measurements correction | • Emissivity; matt/semi-matt/semi-glossy + custom value • Reflected apparent temperature • Atmospheric compensation |
| Object Temperature Range | -20°C to 450°C (-4°F to 842°F) |
| User Interface | |
|---|---|
| Display | 3.5 in, auto orientation |
| Text | Image annotations: Soft keyboard on touchscreen, auto-prompt for note when image is saved |
| Touchscreen | Yes, capacitive |
| Communication & Data Storage | |
|---|---|
| Bluetooth | Bluetooth v. 5.0 EDR • PAN |
| Image File Format | Standard JPEG, 14-bit measurement data included |
| Image Storage Capacity | >5000 sets of images |
| Storage Media | Built-in |
| USB | USB 2.0, Type-C connector |
| WiFi | 802.11 a/b/g/n (2.4 and 5 GHz) |
| Power | |
|---|---|
| Battery operating time | 3 hours |
| Battery Type | Rechargeable Li-Ion battery (built-in) |
| Battery voltage | 3.7 V |
| Charging system | USB-C (1 A) |
| Charging Time | 2 hours |
| External Power Operation | 5 V, USB-C |
| Power Management | Adjustable stand-by and automatic shut-down |
| Environmental & Certifications | |
|---|---|
| Drop | Designed for 2 m (6.56 ft) |
| EMC | • EN 301 489-1 RED • EN 301 489-17 • FCC 47 CFR Part 15 B, Class B |
| Encapsulation | IP54 |
| Humidity [operating and storage] | IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles |
| Operating Temperature Range | -10° to 50°C (14°F to 122°F) |
| Radio Spectrum | • ETSI EN 300 328 • EN 301 893 • FCC Title 47 CFR Part 15 • RSS-247 |
| Safety | EN 62368-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC ¼″-20 |
| General | |
|---|---|
| Package Includes | • Flir C8 • Printed documentation • Flir Thermal Studio Starter • Wrist strap lanyard • USB cable • Pouch |
| Size [L x W x H] | 138 × 84 × 34 mm (5.4 × 3.3 × 0.94 in) |
| Weight | 0.19 kg (0.42 lb) |
Resources & Support
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
