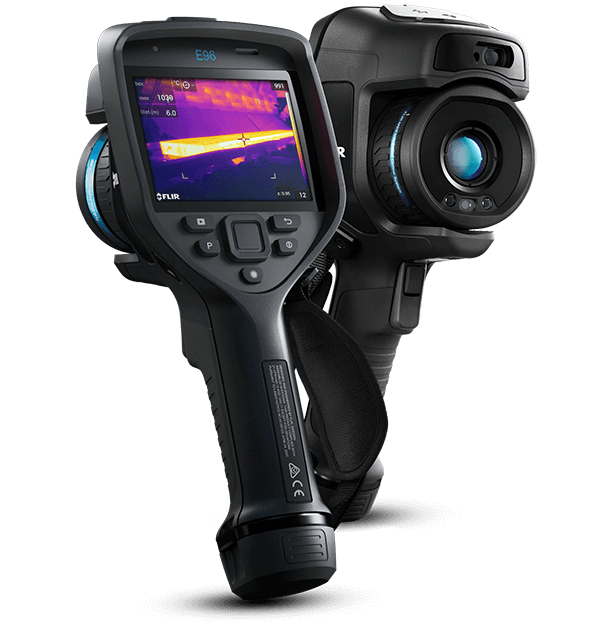

FLIR E96
Advanced Thermal Imaging Camera
Product Variations
The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. The FLIR E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.
Enhanced Resolution, Faster Inspections
The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most virbrant, easiest-to-interpret images in its class.
Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday. (*Optional accessory software)
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 640 × 480 pixels |
| Thermal Sensitivity_NETD | <30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F) <50 mK, 14° at 30°C (86°F) <30 mK, 80° at 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Field of view [FOV] | FLIR E96 42°: 42° × 32° FLIR E96 24°: 24° × 18° FLIR E96 14°: 14° × 10° FLIR E96 80°: 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Imaging & Optical | |
|---|---|
| Color palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Digital Zoom | 1-8× continuous |
| f number | FLIR E96 14°: 1.5 FLIR E96 24°, FLIR E96 80°: 1.3 FLIR E96 42°: 1.1 |
| Field of View | 42° × 32°, 24° × 18°, 14° × 10° |
| Field of view [FOV] | FLIR E96 42°: 42° × 32° FLIR E96 24°: 24° × 18° FLIR E96 14°: 14° × 10° FLIR E96 80°: 80° × 63° |
| Focal Length | 42°: 10 mm (0.39 in) 24°: 17 mm (0.67 in) 14°: 29 mm (1.41 in) 80°: 5 mm (0.19 in) |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Image Frequency | 30 Hz |
| IR Resolution | 640 × 480 pixels |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m, 42°
0.15 m, 24° 1.0 m, 14° |
| Minimum Focus Distance with MSX | 42°: 0.65 m (1.98 ft) 24°: 0.5 m (1.64 ft) 14°: 1.0 m (3.28 ft) |
| Non_radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture_in_Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spatial resolution [IFOV] | 80°: 2.6 mrad/pixel 42°: 1.20 mrad/pixel 24°: 0.66 mrad/pixel 14°: 0.38 mrad/pixel |
| Spectral Range | 7.5-14 µm |
| Thermal Sensitivity_NETD | <30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F) <50 mK, 14° at 30°C (86°F) <30 mK, 80° at 30°C (86°F) |
| UltraMax | Yes |
| Viewfinder | No |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F) |
| Spot Meter | 3 ea. in live mode |
| User Interface | |
|---|---|
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® |
| Communication & Data Storage | |
|---|---|
| Communication Interfaces | USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
| Image File Format | Standard JPEG with measurement data included. Infrared-only mode |
| Image Storage Mode | Infrared, Visual, MSX®, Picture-in-Picture, Gallery |
| METERLiNK | Yes |
| Storage Media | Removable SD card |
| Time Lapse | 10 seconds to 24 hours (infrared) |
| Video Out | DisplayPort over USB Type-C |
| Power | |
|---|---|
| Battery operating time | >2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li-ion battery |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| General | |
|---|---|
| FLIR Inspection Route | Enabled in camera |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, s2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter |
