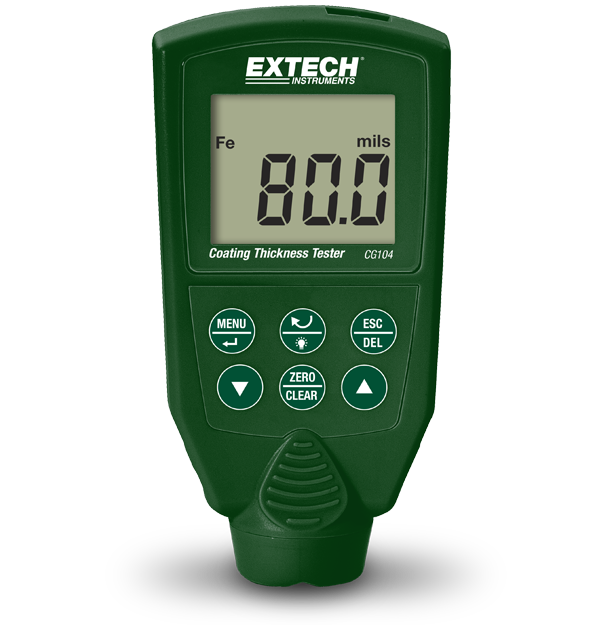

Extech CG104
Coating Thickness Tester
The CG104 is a pocket-sized coating thickness tester which offers quick one-handed operation and non-destructive measurements of the thickness of ferrous and non-ferrous substrates. Its unique reversible display allows you to take readings in challenging angles of area being measured, plus it has an easy-to use menu system and backlit display feature. Built-in memory stores/recalls up to 255 readings. Complete with two AAA batteries, calibration standards (one ferrous plate, one non-ferrous plate and one standard coating plate film), wrist strap and soft case.
Especificaciones
| General | |
|---|---|
| Coating Thickness [Ferrous] | 0 to 2000µm (0 to 80.0mils) |
| Coating Thickness [Ferrous] Basic Accuracy | ±4 digits (0 to 7.8mils); ±10 digits (0 to 199µm); ±3% (7.9 to 39.0mils); ±3% (200 to 1000µm); ±5% (39.1 to 80.0mils); ±5% (1001 to 2000µm) |
| Coating Thickness [Ferrous] Max Resolution | 1µm (0.1mils) |
| Coating Thickness [Non_Ferrous] | 0 to 1000µm (0 to 40.0mils) |
| Coating Thickness [Non_Ferrous] Basic Accuracy | ±4 digits (0 to 7.8mils); ±10 digits (0 to 199µm); ±3% (7.9 to 39.0mils); ±3% (200 to 1000µm) |
| Coating Thickness [Non_Ferrous] Max Resolution | 1µm (0.1mils) |
| Working Principle [Ferrous] | Magnetic Induction |
| Working Principle [Non_Ferrous] | Eddy Current |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.1 × 2.2 × 1.1" (105 × 55 × 27mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 2.82oz (80g) |
