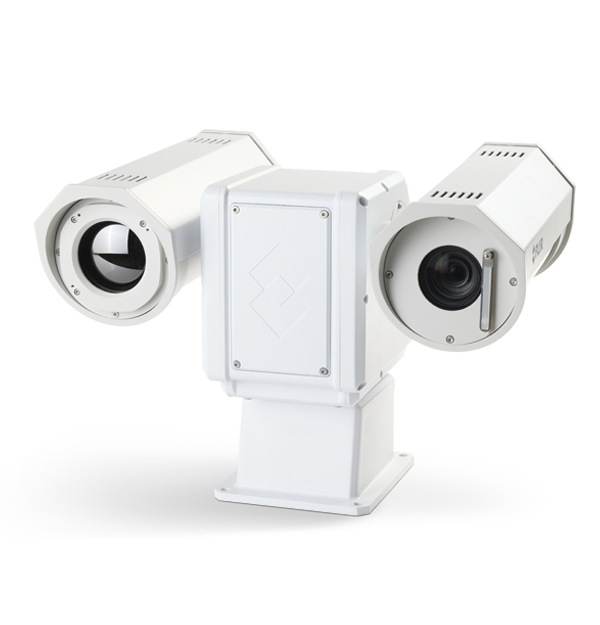

PT-Series AI SR
Visible 4K and Thermal Pan/Tilt Short Range Security Camera
Product Variations
The Flir PT-Series AI SR is our most advanced multi-sensor security camera, featuring a high-performance <25 mK NETD uncooled thermal sensor with 640 × 512 resolution, a 4K visible-light imaging sensor with 25× optical zoom and outstanding low-light performance. This pan-tilt camera is enhanced with Flir Fusion AI Video analytics for reliable edge-based detection and classification of human and vehicle targets at extended ranges. Combined with Flir Nexus®, the PT-Series AI SR allows you to seamlessly track objects or people and provides uninterrupted target tracking—even beyond a radar’s field of view.
Thanks to its easy integration with United VMS and other major third party video management systems, PT-Series AI SR is an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.
Diseñado para aplicaciones complejas
La serie PT AI SR es ideal para puertos, instalaciones de petróleo y gas, servicios públicos de energía, parques empresariales o centros de datos, con capacidades de posicionamiento horizontal e vertical de 360°, visibilidad de hasta 1000 metros e imágenes multiespectrales para una vigilancia continua en cualquier condición climatológica o de iluminación.
Análisis e integración de vídeo
United VMS es una forma potente de integrar y controlar Flir PT-Series AI SR. Intuitivo de usar y escalable según sus necesidades, UVMS admite análisis, seguimiento PTZ y transferencia de cámaras fijas a PT.
Ciberseguro y compatible con NDAA
Proteger sus datos es tan importante para nosotros como la seguridad del sitio para usted. Las cámaras de seguridad Flir son ideales para sistemas de seguridad ciberendurecidos para infraestructura crítica y aplicaciones gubernamentales. El desarrollo de Flir cumple con los estándares de cumplimiento de NDAA al incorporar consideraciones de ciberseguridad en nuestro proceso junto con pruebas de vulnerabilidad internas y externas, revisiones de código estrictas y rigurosos protocolos de TI.
Conexión de sensores de seguridad con Flir Nexus
Realice un seguimiento geográfico perfecto de objetivos en áreas amplias a través de Flir Nexus, un protocolo de comunicación patentado que ayuda a salvar la brecha entre la serie PT AI SR, otras cámaras, dispositivos de radar y sus sistemas de supervisión. Nexus permite una coordinación perfecta con radares Flir y otras cámaras térmicas y visibles para mantener un seguimiento continuo, incluso más allá del campo de visión de un radar.
Key Features
The Flir PT-Series AI-SR combines a high-sensitivity <25 mK uncooled thermal sensor with up to 4× continuous zoom and a 4K visible-light camera featuring 25× optical zoom and superior low-light performance. This powerful dual-sensor design ensures clear, actionable imaging in complete darkness, bright sunlight, and challenging weather.
Equipped with Flir Fusion AI video analytics, the PT-Series AI-SR delivers real-time object detection, classification of people and vehicles, right at the edge. This reduces false alarms, improves situational awareness, and enables faster, more accurate responses without relying on external processing.
High speed, precision pan/tilt system with 0.2° pointing accuracy ensures the PT-Series AI SR can easily maintain continuous person and vehicle tracking over wide areas.
Quote
«Gracias a las cámaras de seguridad Flir, ahora podemos supervisar, en total oscuridad y también en condiciones de niebla, lo que sucede junto a la valla. Si vemos a personas que se acercan y sospechamos de actividad ilegal, enviamos una patrulla”.
Especificaciones
| Compliance & Certifications | |
|---|---|
| Compliance and Certifications | FCC; CE Marked; RoHS; IP66; ONVIF Profile S, G, T, WEEE |
| Cyber Security | |
|---|---|
| Security | ISO27001 certified IEEE 802.1x TLS/HTTPS User Authentication Access control via firewall User credentials with policy enforcement Digest Authentication |
| Environmental | |
|---|---|
| De-Icing/Anti-Icing | MIL-STD-810F, Method 521.1; De-Icing |
| Humidity | 0 to 95% relative |
| IP Rating (dust & water ingress) | IP66 |
| Operating Temperature Range | -40°C to 70°C (-40°158°F) cold start |
| Shock | MIL-STD-810F “Transportation” |
| Storage Temperature Range | -55°C to 85°C (-67°F to 185°F) |
| Vibration | IEC 60068-2-27 |
| General | |
|---|---|
| Dimensions (L x W x H) | 348× 467 × 326 mm (13.7, 18.4, 12.8 in) |
| Effective Resolution | 327,680 pixels (640 × 512) |
| Focus Range | Athermalized, Focus Free |
| Input Voltage | 24 V DC: 65 W (max w / o heaters) 195 W (max w heaters) |
| Weight | ~37 lb (16.8 kg): configuration dependent |
| Zoom | Visual: 25x optical zoom |
| Measurement & Analysis | |
|---|---|
| Programmable Presets | 256 |
| Thermal Sensitivity | <25 mK at 25°C, F/10 |
| PTZ | |
|---|---|
| Pan Angle/Speed | Continuous 360°; 0.1° to 60°/ sec |
| Tilt Angle - Speed | 90° to -90°; 0.1° to 30°/ sec |
| System Integration | |
|---|---|
| Ethernet | Yes |
| External Analytics Compatible | Yes |
| Network APIs | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| Supported Protocols | IPv4, HTTP, HTTPS, UPnP, DNS,NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X |
| Thermal Camera | |
|---|---|
| Array Format (Thermal) | 640 × 512, long-life, uncooled VOx microbolometer |
| f-number | F1.6 to F4.8 |
| Focal Length | 6.5 mm (wide) to 162.5 mm (tele) |
| Image Uniformity Optimization | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| Lens Field of View | 59.0° (wide) to 2.36° (tele) |
| Spectral Range (Thermal) | 7.5 μm to 13.5 μm |
| Thermal AGC Region of Interest [ROI] | Default, Presets, and User definable to ensure optimal image quality on subjects of interest |
| Visible Camera | |
|---|---|
| f-number | F1.6 to F4.8 |
| Focal Length | 6.5 mm (wide) to 162.5 mm (tele) |
| Lens Field of View | 59.0° (wide) to 2.36° (tele) |
| Low Light Sensitivity | Color: 0.28 lx (F1.6, AGC on, 1/30s) |
| Sensor Illumination | Back Light Compensation |
| Sensor type - Daylight | 4K (2160p), 1/1.8-type STARVIS II CMOS |
| WDR | 120 dB |
| Video & Recording | |
|---|---|
| Video Compression | Two independent channels of H.265, H.264 & M-JPEG for each sensor |
Accessories
Resources & Support
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
