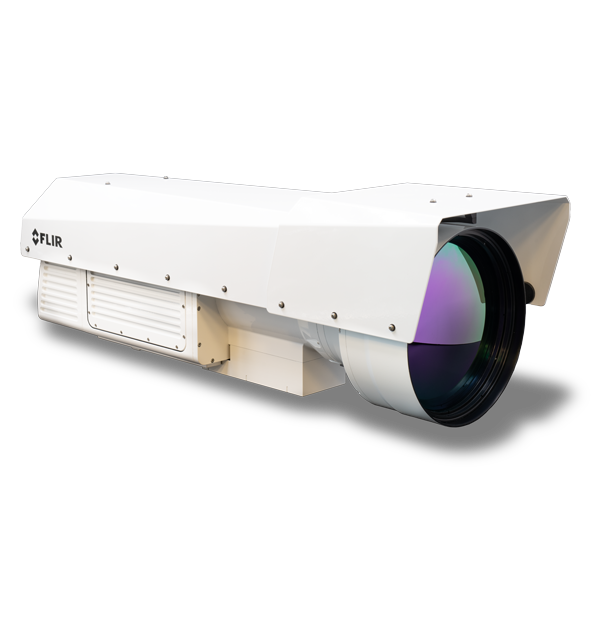

The FLIR RS6780 offers advanced detector, triggering, and synchronization capabilities in an environmentally protected package, making it easy to configure and integrate for successful data acquisition in the most demanding R&D applications. With a three-position motorized filter wheel and continuous metric zoom (CZ) lens, the RS6780 records sharply focused, high-quality thermal images in long-range and tracking applications. The standard 50-250 mm CZ lens can be factory-calibrated for temperature and radiance measurements, allowing researchers to use the radiometric camera system without sacrificing the flexibility of the optics platform.
Capture crisp thermal images of high-temperature targets with 640 x 512 resolution, a three-position filter wheel, and continuous metric zoom lens
Synchronize the camera with external events or instrumentation, control precisely when an image frame is generated with advanced triggering, and embed TSPI-accurate data timestamping
Easily integrate this lightweight system indoors or outdoors – the IP65 weatherproof enclosure provides protection in the harshest environments
FLIR RS6780: Cámara térmica científica y de rango flexible para aplicaciones de investigación de defensa
La FLIR RS6780 combina una cámara termográfica radiométrica de 3,0-5,0 μm, 640 × 512 con una óptica de zoom métrico continuo, exclusiva de las cámaras científicas de la gama Teledyne FLIR. Vea este vídeo para descubrir exactamente qué hace que la RS6780 sea una excelente opción para la medición de largo alcance y el seguimiento de objetivos.
FLIR RS6780: Cámara térmica científica y de rango flexible para aplicaciones de investigación de defensa
FLIR RS6780: Cámara térmica científica y de alcance para aplicaciones comerciales
FLIR RS6780: Óptica flexible para investigación de defensa y aplicaciones comerciales
Especificaciones
| Highlighted | |
|---|---|
| Resolution | 640 × 512 |
| Detector Pitch | 15 µm |
| Spectral Range | 3.0 – 5.0 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Camera f-number | f/4.0 |
| Dynamic Range | 14-bit |
| Frame Rate [Full Window] | Programmable 0.0015 Hz to 125 Hz |
| Integration Time | 480 ns to ~full frame |
| Standard Temperature Range | 0°C to 350°C (32°F to 662°F) |
| Optional Temperature Range | Using ND filters up to 3000°C |
| Focus | Motorized FOV/focus |
| Imaging & Optical | |
|---|---|
| Camera f-number | f/4.0 |
| Detector Pitch | 15 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Digital Zoom | 1x, Auto (best fit), off |
| Dynamic Range | 14-bit |
| Focus | Motorized FOV/focus |
| Frame Rate [Full Window] | Programmable 0.0015 Hz to 125 Hz |
| Image Time Stamp | Internal precision timestamp, IRIG-B AM decoder, TSPI accurate |
| Integration Time | 480 ns to ~full frame |
| Lens | 50-250 mm continuous metric zoom - low latency metadata (with 3x afocal optional attachment - 150-750 mm) |
| Lens Cover | Optional, motorized |
| On Camera Image Storage | None |
| Operability | ≥99.95% typical |
| Overlay | Customizable (ability to toggle off) |
| Palette | Selectable 8-bit |
| Pixel Clock | 50 MHz |
| Radiometric Data Streaming | Gigabit Ethernet (GigE Vision), CoaXPress Single Link 1.1 |
| Readout Modes | Asynchronous integrate while read, asynchronous integrate then read |
| Readout Type | Snapshot |
| Resolution | 640 × 512 |
| Sensor Cooling | Closed-cycle rotary |
| Spectral Range | 3.0 – 5.0 µm |
| Standard Video | SDI |
| Subwindow Modes | Flexible windowing down to 16 × 4 (steps of 16 columns, 4 rows) |
| Thermal Sensitivity_NETD [typical] | 27 mK typical |
| Video Modes | SDI: 720p@50/59.9, 1080p@25/29.9, 480i@60 Hz, 576i@50 Hz |
| Measurement & Analysis | |
|---|---|
| Accuracy | ≤100°C ±2°C (±1°C typical), >100°C ±2% of reading (±1% typical) |
| Ambient Drift Compensation [with factory cal] | Yes |
| Automatic Gain Control | Manual, Linear, Plateau equalization, DDE |
| Optional Temperature Range | Using ND filters up to 3000°C |
| Standard Temperature Range | 0°C to 350°C (32°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GigE, CoaXPress (GenICam protocol supported over GigE or CXP), RS-232 |
| Synchronization Modes | Sync In, Sync Out, Tri-Level Sync, IRIG, Lock-In |
| Trigger Mode(s) | Trigger in, header based |
| General | |
|---|---|
| Size (L x W x H) | 544 mm × 177.8 mm × 213.9 mm (21.43 in × 7 in × 8.42 in) - (w/o 3x); 726.44 mm × 243.38 mm × 240.74 mm (28.6 in × 9.582 in × 9.478 in) - (w/3x) |
| Weight | Without 3x afocal - 12.7 kg (28 lb), With 3x afocal - 16.78 kg (37 lb) |
| Power | |
|---|---|
| Power | 24 VDC (<24 W steady state) |
| Environmental & Certifications | |
|---|---|
| IP Rating | IP65 |
| Mounting | 5 × ¼" -20 tapped holes, 2x 3/8" -16 tapped holes |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
Resources & Support
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
