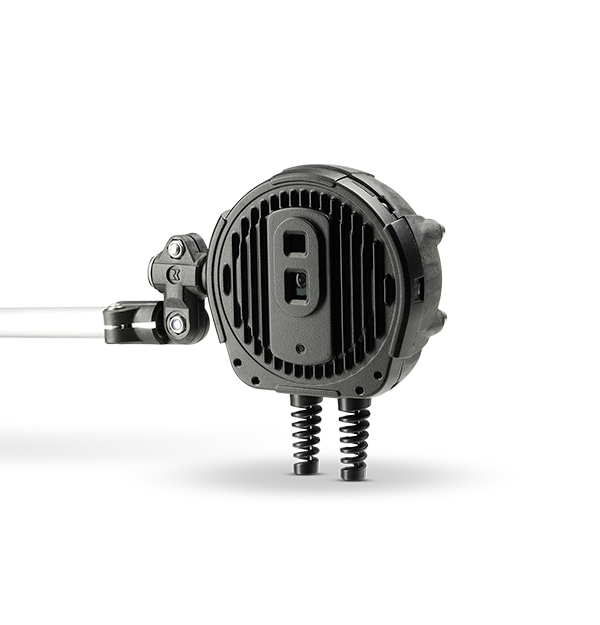

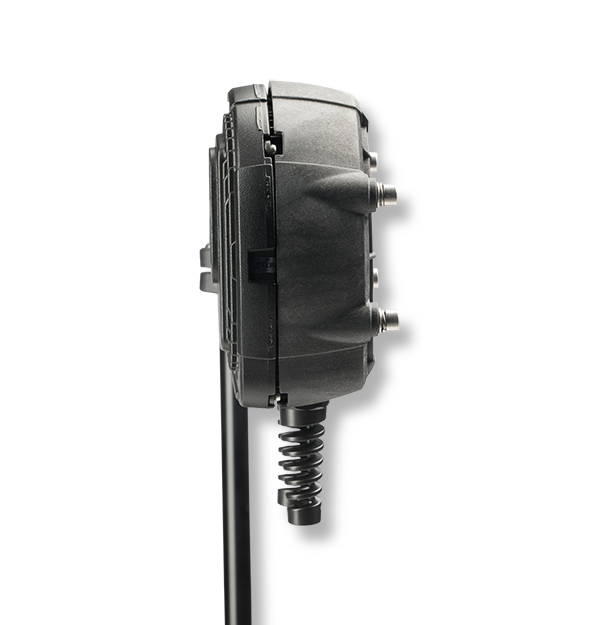

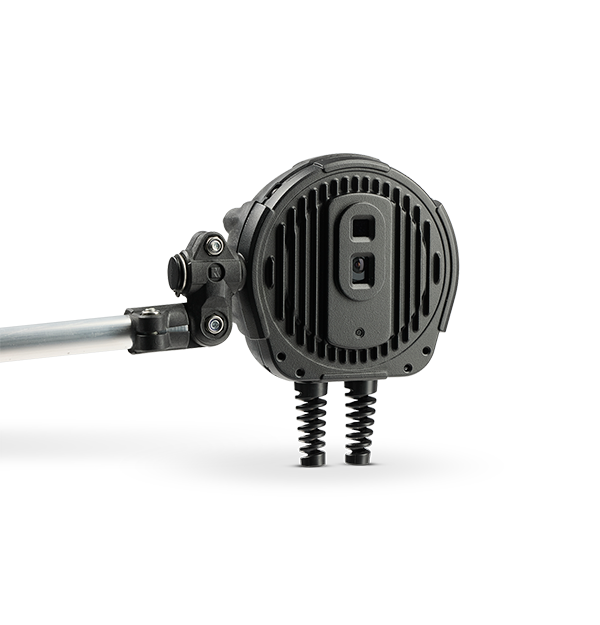

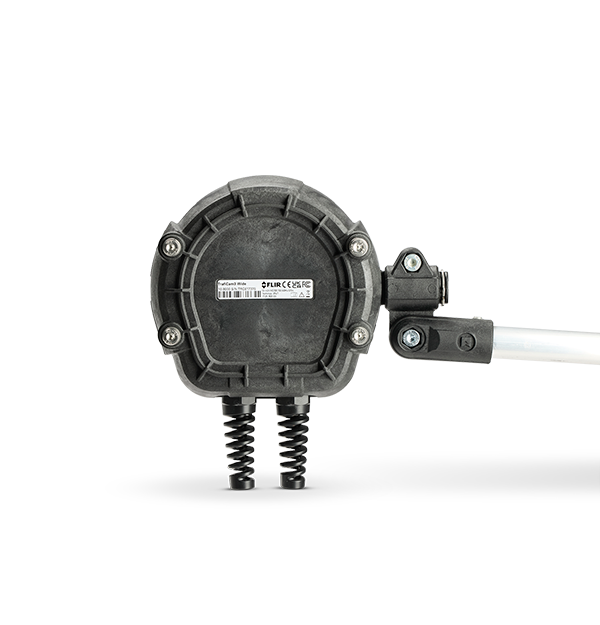

TrafiCam™ 3
Smart City Sensor
Product Variations
FLIR TrafiCam 3 is an affordable, all-round detection sensor for traffic monitoring and dynamic traffic signal control. This rugged, compact uses visual imaging and Wi-Fi technology to adapt traffic signals based on the presence detection of traffic objects vehicles while also generating basic count data at intersections and in urban environments. Key to helping traffic engineers improve vehicle flows, monitor congestion, and enhance safety, TrafiCam 3 ensures cities can collect accurate road data as well as measure travel and delay times for different transport modes.
Monitors MAC addresses of Wi-Fi-enabled devices such as smartphones to determine rates of travel along road segments.
Generates basic count data at intersections and in urban environments, in any environmental conditions.
Mounts quickly and integrates with existing platforms through BPL technology or PoE connection.
Specifications
| Systemübersicht | |
|---|---|
| Detection Functionalities | Fahrzeugerkennung |
| Detection Zones | 8 Fahrzeuganwesenheitszonen |
| Kommunikation | |
|---|---|
| Compression | H.264, MPEG-4, MJPEG |
| Configuration | Webpage über sicheres Wi-Fi oder Ethernet |
| Ethernet | 10/100 MBps PoE A und PoE B |
| Output | 1 N/O- und 1 N/C-Trockenkontakte leiten 16 N/C-Trockenkontakte über TI BPL3, TI SLT oder 4 N/C über BPL3 Edge B&SIU Onboard + maximal 5x N/C über 4I/O USB -Erweiterungsplatinen (max. insgesamt 24 Ausgänge) SDLC: BIU-64 oder SUI-128 |
| WiFi | IEEE 802.11 Typ b,g,n EIRP <100 mW |
| Elektrik | |
|---|---|
| Detection Distance | TrafiCam3 breit: 0–25 m (0–85 ft) TrafiCam3 schmal: 15–75 m (50–250 ft) |
| FCC | FCC-Bestimmungen, Abschnitt 15, Klasse A |
| Input Power | 12 – 42 VAKUUM 12 – 48 VDC |
| Power Consumption | Durchschnitt 6,2 W, Peak 7 W, Peak mit Powerdip 14 W |
| Powerline Communication | Über TI BPL3 oder TI BPL3 EDGE Schnittstelle |
| Umgebungsfaktoren | |
|---|---|
| EU Directives | EMC 2014/30/EU, RoHS 2011/65/EU |
| IP Rating | IP67 |
| Operating Temperature | -40 °C bis +74 °C (-40 °F bis 165 °F) |
| Shock and Vibration | Gemäß NEMA TS2 |
| Bildgebung und optische Daten | |
|---|---|
| Frame Rate | 15 B/s |
| Resolution | 640 × 480 Pixel, Farbe CMOS |
| Streaming Video | RTSP |
| Mechanik | |
|---|---|
| Bracket | Montageklammern (PA-GF30) und Aluminiumrohr |
| Dimensions [incl mounting bracket] | 70 × 200 × 440 mm (2,75 × 7,87 × 17,32 Zoll) |
| Installation Height | TrafiCam3 breit: 3,5–6 m (11,4–19,6 ft) TrafiCam3 schmal: 5,5–8 m (18,0–26,0 ft) |
| Material | Aluminiumgehäuse mit Sonnenblende PC GF10; wetterfest UV-beständig |
| Weight | 850 g / 1,87 lb (Kamera mit Halterung) |
