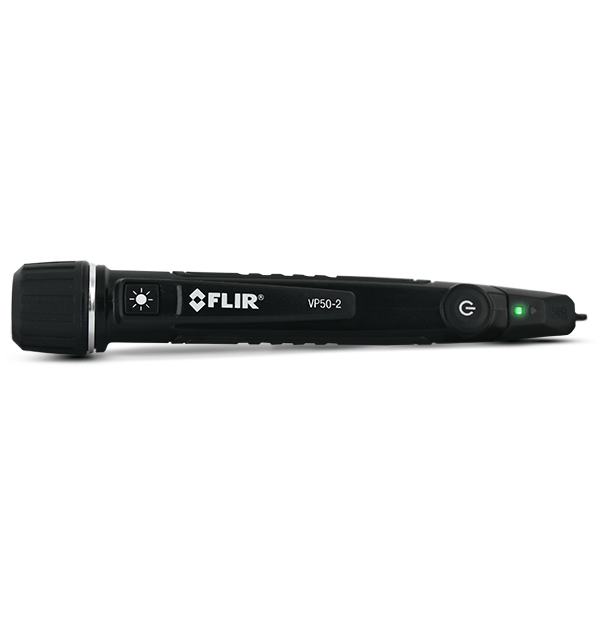

FLIR VP50-2
Triple Alarm CAT IV Non-Contact Voltage Detector with Flashlight
The FLIR VP50-2 is a durable, CAT IV-rated non-contact voltage detector featuring light, vibration, and beeper feedback alarms and a powerful LED flashlight. Use the VP50-2 to reliably check if an AC circuit is live before beginning work; detect voltage on exposed conducting parts or through insulation; identify live wires within electrical panels, switches, and outlets; or trace live wires and map circuits. With an ergonomic and drop-tested design, the FLIR VP50-2 is the right choice for professionals performing field troubleshooting and verification of electrical installations within residential, commercial, and industrial buildings.
Reliably identify and trace live or neutral wires
Durable to withstand a 3 m drop, the FLIR VP50-2 can reliably test for voltage in the latest safety outlets, large industrial electrical systems, and residential low-voltage installations
Offers an ergonomic design with a low-profile probe tip and anti-roll case that’s easy to grip and operate
Provides high-end features that make your job more efficient including bright flashlight, tip light, auto power off, and low battery indication
Specifications
| Highlighted | |
|---|---|
| Alarm Notification | Sound, Flashing LED, Vibration |
| Flashlight | Yes |
| Tip Light | Yes |
| Drop test | 3 m (9.8 ft) |
| Category Rating | CAT IV-1000 V |
| Certifications | cULus |
| Warranty | Limited 3-year |
| Measurement & Analysis | |
|---|---|
| AC Voltage Range | 90 to 1000 V AC (default, solid green light) |
| Category Rating | CAT IV-1000 V |
| Frequency Range | 45 to 65 Hz |
| High Sensitivity Mode | 24 to 1000 V AC (solid amber light) |
| Vibrating Indication | Yes |
| Environmental & Certifications | |
|---|---|
| Ambient temperature range for operation | -10 to 50°C (14 to 122°F) |
| Certifications | cULus |
| Drop test | 3 m (9.8 ft) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Warranty | Limited 3-year |
| General | |
|---|---|
| Alarm Notification | Sound, Flashing LED, Vibration |
| Dimensions [L x W x H] | 158.5 x 26 × 29 mm (6.24 x 1.02 x 1.14 in) |
| Flashlight | Yes |
| Tip Light | Yes |
| Weight | 59 g (2.1 oz) including batteries |
| Power | |
|---|---|
| Battery Life | ~5 hours continuous (flashlight off) |
| Power Requirements | 2 × AAA alkaline batteries |
