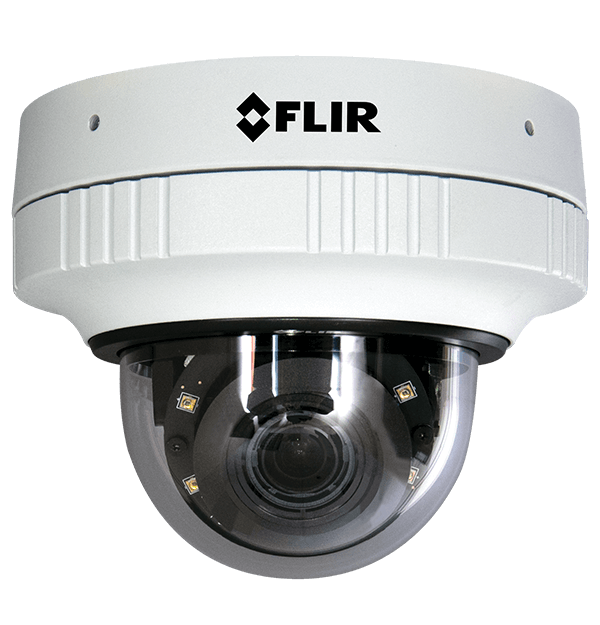

FLIR Quasar™ Premium Mini-Dome
5MP HD and 4K UHD Cameras
Product Variations
The FLIR Quasar premium mini-dome camera was designed to provide situational awareness in the most demanding environments, where evidential and forensic video is required. It is offered in a 5MP HD and 4k UHD variant, delivering superior image quality and IR-Illumination for exceptional performance using low bandwidth. Ideal for critical infrastructure sites, remote facilities, or any large requiring close monitoring, the Quasar premium mini-dome is a discreet surveillance option that is NDAA-compliant and utilizes high-end cybersecurity safeguards. Ease of installation, FLIR accessory/mounting ecosystem, and the ability to operate more cameras on the same server all contribute to a lower total cost of ownership. It offers seamless integration with a wide range of video management systems, including United VMS, which brings indoor and outdoor surveillance and perimeter intrusion detection cameras together as part of an end-to-end security solution.
Rugged design extends product life, minimizes corrective maintenance, and optimizes total cost of ownership.
Install and set up camera with United VMS within minutes to minimize installation costs.
Optimal performance for surveillance and forensic reporting.
Specifications
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM* |
| ONVIF | Profiles S, G & T |
| USA | UL, FCC Part 15 (subpart B, class A) |
| Cyber Security | |
|---|---|
| Security | Password protection, IP address filtering, TLS/HTTPS, IEEE 802.1X network access control, Digest authentication Password policy Protect from multiple failure login |
| Environmental | |
|---|---|
| Humidity | 90% (non-condensing) |
| Operating Temperature | -30°C~60°C (-22°F~140°F) without heater -55°C~60°C (-67°F~140°F) with heater Cold start -40°C~60°C (-40°F~140°F) with heater |
| Storage Temperature | -20°C~70°C (-4°F~158°F) |
| General | |
|---|---|
| Automatic Electronic Shutter [AES] | 1/1 to 1/32,000 (auto) |
| Compression | Enhanced H.265 Main Profile + Enhanced H.264 Main/High/Baseline Profile + MJPEG |
| Day_Night Mode | Yes |
| Digital Slow Shutter [DSS] | 1/1(1)~1/60(50) NTSC(PAL) |
| Dimensions | 161x128.6 mm (6.3 x 5 in.) |
| Enclosure | Indoor/Outdoor: IK10 rated vandal IP66 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | PoE IEEE802.3af, class 0 AC24V, max 13.68 watt |
| Power Connection | RJ45 & 24VAC |
| Power Consumption | CM-6408, 3864x2180, 4K UHD: 12.5W with heater and IR CM-6405, 2688x1944, 5M HD: 11.5W with heater and IR |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Shutter WDR | 130dB |
| Tamper Detection | Yes |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| Measurement & Analysis | |
|---|---|
| Automatic Gain Control | Auto |
| PTZ | |
|---|---|
| Pan_Tilt_Spin | 356° / ±80° / ±98° |
| System Integration | |
|---|---|
| Bi_directional Audio | 1 Audio Line Input, G.711 a/µ-law, AAC support + 1 Audio Line Output |
| Distance | Up to 40m (131 ft.) Sunshield 28m (91.8 ft.) |
| Ethernet | 10/100/1000, IEEE 802.3, auto sensing 1 x RJ45 |
| Input | 1 dry alarm contact 1 5V 10kΩ pull up |
| Network Protocol | IPV4/6, HTTP, HTTPS, ,UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP,QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP |
| Output | 1 Relay Contact max. DC 5V 130MA |
| Peak Emission Wavelength [nm] | 850 |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Internet Explorer, Firefox, Chrome, Edge, Safari |
| Thermal Camera | |
|---|---|
| Image Sensor | CM-6408, 3864x2180, 4K UHD: 1/1.8" CMOS CM-6405, 2688x1944, 5M HD: 1/2.7" CMOS |
| Sensitivity | CM-6408, 3864x2180, 4K UHD: 0.04 (color)/0.002 (BW), 0 Lux with IR illuminator ON,
measured at 30 IRE CM-6405, 2688x1944, 5M HD: 0.08 (color)/0.008 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| Visible Camera | |
|---|---|
| Backlight Compensation | On / Off |
| Bandwidth | Confgurable between 64Kbps and 20Mbps |
| Image Sensor | CM-6408, 3864x2180, 4K UHD: 1/1.8" CMOS CM-6405, 2688x1944, 5M HD: 1/2.7" CMOS |
| Lens Type | CM-6408, 3864x2180, 4K UHD: Varifocal 4.46-11mm, 40.43°- 110.76° HFOV, 22.65°-57.14° VFOV, F1.47-F2.5, D/N, Zoom, Auto-Focus / Auto-Iris, P-Iris CM-6405, 2688x1944, 5M HD: Varifocal 2.7-12mm, 31.5°- 102° HFOV, 22.7°-70.2° VFOV, F1.6, D/N, motorized auto-focus / auto-iris, P-Iris |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D/2D/Color |
| Sensitivity | CM-6408, 3864x2180, 4K UHD: 0.04 (color)/0.002 (BW), 0 Lux with IR illuminator ON,
measured at 30 IRE CM-6405, 2688x1944, 5M HD: 0.08 (color)/0.008 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| Sensor Resolution | CM-6408, 3864x2180, 4K UHD: 3864×2180 CM-6405, 2688x1944, 5M HD: 2688×1944 |
| Signal to Noise Ratio | ±50 dB |
| White Balance | Auto / ATW / Manual / One Push |
| Video & Recording | |
|---|---|
| Maximum Performance | H.264/H.265 30/25 FPS @ 4K (NTSC/PAL) + 30/25 FPS @ D1 or H.264/H.265 15/12 FPS @ 4K + 1080P + D1 (NTSC/PAL) or H.264/H.265 60/50 FPS @ 1080P + 30/25 FPS @ 720P + D1 (NTSC/PAL) |
| Rate Control | CBR, CVBR, LBR, MJPEG |
| Resolution Range | Scalable from QCIF to 4K |
| SD Card Recording1 | microSD/microSDHC/microSDXC 8GB to 512GB (Class 10) |
| Video Motion Detection | Yes |
