Discontinued

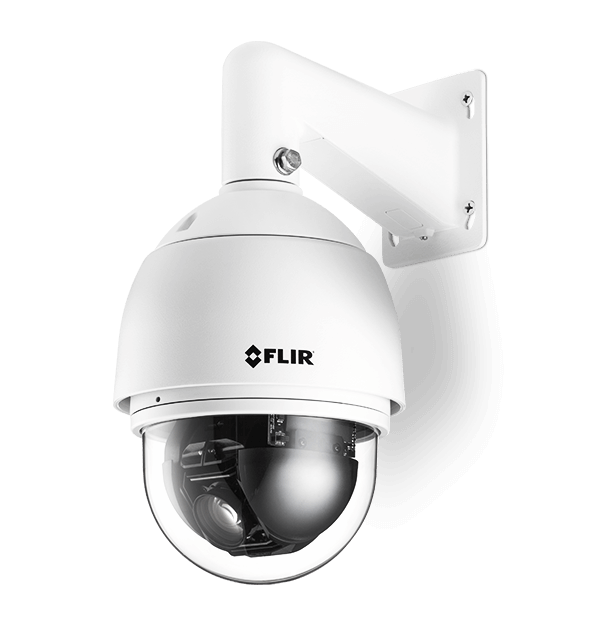

Quasar 1080p PTZ Camera
PTZ Security Camera
The Quasar HD 1080p PTZ security camera produces broadcast-video quality and guaranteed frame rates in high motion, complex and low light scenes, such as airports, urban streets, critical infrastructure, commercial offices and college campuses. The FLIR Quasar CP-4221-30x HD PTZ delivers one of the lowest bandwidths in the industry due to advanced H.264 motion processing.
Broadcast-quality security video in complex environments
Multi-stream H.264 video delivers superior identification with low bit rates.
The Quasar 1080p PTZ Camera adapts frame rates to suit a mulit-faceted lighting conditions.
Auto-tune technology makes setting up the Quasar 1080p PTZ Camera easier.
仕様
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN55022-1998 class A, EN55024, RoHS |
| USA | UL, FCC Part 15 (subpart B, class A) |
| Cyber Security | |
|---|---|
| Security | User account and password protection |
| Environmental | |
|---|---|
| Humidity | 95% (non-condensing) |
| Operating Temperature | CP-4221-201:-45° to 50° C (-49° to 122° F) |
| Storage Temperature | -20° to 70° C (-4° to 158° F) |
| General | |
|---|---|
| 3D Noise Reduction | On / Of |
| AGC Control | Auto / Manual |
| Bubble F-Stop | F0.0 - clear bubble |
| Bubble Rating | IK10 vandal resistant polycarbonate |
| Day/Night: IR Cut Filter | Auto / Manual |
| Dimensions | CP-4221-201: 191.97 x 282.11 mm (7.55 x 11.1 in.) |
| Enclosure Rating | Tamper resistant surface mount or IK10 rated vandal IP66 outdoor housing |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| Input Voltage | PoE++ 802.3at 60W (indoor/outdoor), PoE+ 802.3at 25W (indoor only), AC 24V ±10% |
| Power Connection | Terminal block |
| Power Consumption | Max 20W indoor (CP-4221-200), max 65W outdoor (CP-4221-201) with heater operating |
| Privacy Zones | On / Off - 16 zones |
| Resume After Power Loss | Yes |
| Scanning Mode | Progressive |
| Tamper Detection | On / Of |
| Unit Weight | CP-4221-201: 2.32 Kg (5.11 lbs.) |
| Measurement & Analysis | |
|---|---|
| Maximum resolution | 1920x1080 (HD 1080p) |
| PTZ | |
|---|---|
| Auto Flip | Digital / Mechanical / Off |
| Auto Pan | 4.0 |
| Home Function | Preset / Sequence / Auto Pan / Pattern |
| Horizontal Viewing Angles | 55.5° (Wide) to 2.8° (Tele) |
| Manual Speed | 0.13° to 90° / sec |
| Maximum Pan/Tilt Speed | 400° / sec |
| Pan Travel | 360° continuous |
| Pattern | 8.0 |
| Preset Accuracy | 0.225° |
| Preset Speed | 5° to 400° / sec |
| Presets | 256.0 |
| Proportional Pan & Tilt | On / Off (pan and tilt speed proportional to zoom ratio) |
| Sequence | 8.0 |
| Tilt Travel | -10° to 190° |
| System Integration | |
|---|---|
| Alarm | Input: 4 dry alarm contact Output: 2 relay contact, 30 VDC at 2A or 125 VAC at 0.5A max |
| Alarm Reaction | Preset / Sequence / Auto Pan / Pattern |
| Audio Bandwidth | Configurable between 16 kbps & 64 Kbps (depending on compression method) |
| Audio Connections | Terminal block |
| Bi-directional Audio | Full duplex, line / mic in and line out, G.711, G.726 |
| Configuration | Remote: via web access or supported video management software |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Network Protocol | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, IEEE 802.1X, QoS,ONVIF Profile S |
| Supported Web Browser | Internet Explorer 6.0+ |
| Thermal Camera | |
|---|---|
| Digital Zoom | 1 to 10 variable |
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Focal Length | 4.7 to 94 mm |
| Image Sensor | 1/2.8" CMOS |
| Image Stabilization | On / Of |
| Minimum Illumination | 0.3 (color) / 0.04 (BW), measured with DSS Off at 30 IRE |
| Optical Zoom | 20x |
| Visible Camera | |
|---|---|
| Backlight Compensation | On / Of |
| Digital Zoom | 1 to 10 variable |
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Focal Length | 4.7 to 94 mm |
| Focus Mode | Auto / Manual |
| Image Rotation | Normal / Flip / Mirror |
| Image Sensor | 1/2.8" CMOS |
| Image Stabilization | On / Of |
| Iris Control | Auto / Manual |
| Minimum Illumination | 0.3 (color) / 0.04 (BW), measured with DSS Off at 30 IRE |
| Optical Zoom | 20x |
| Sensor Resolution | 1920 x 1080 |
| Signal to Noise Ratio | ±50 dB |
| White Balance | Auto / Indoor / Outdoor / ATW / Manual |
| Wide Dynamic Range (Multi-shutter) | On / Of |
| Video & Recording | |
|---|---|
| Maximum Performance | 30fps @ HD 1080p + 30fps @ D1 or 15+15 @ HD 1080p |
| Rate Control | CBR / VBR |
| Resolution Range | Scalable from CIF to HD 1080p |
| SD Card Recording | SDXC up to 64 GByte |
| Video Bandwidth | Configurable between 64 Kbps and 8 Mbps |
| Video Compression | Dual Streaming H.264 / H.264 or H.264 / MJPEG |
| Video Motion Detection | On / Off - up to 10 independent zones |
