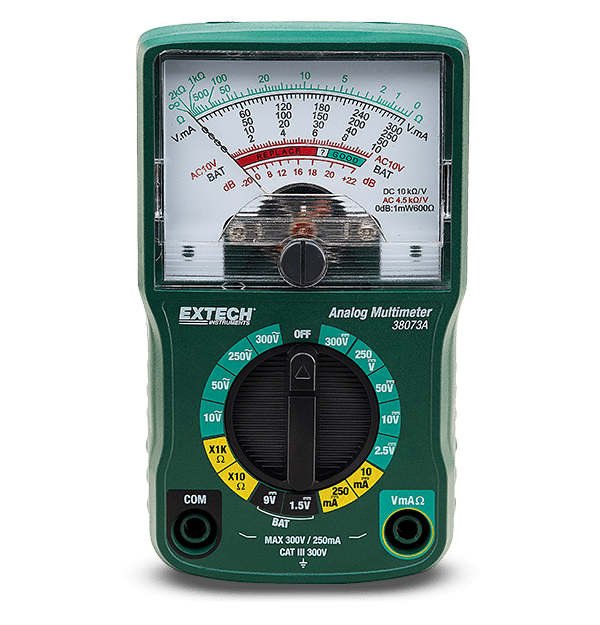

Extech 38073A
Mini Analog MultiMeter
Extech’s 38073A Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. It offers 6 functions and includes test leads plus an easy to read, color coded analog display. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with test leads and a 1.5 V AA battery.
Especificações
| Especificações gerais | |
|---|---|
| Corrente Contínua (CC) | 10mA, 250mA |
| Decibéis | -20 to 22dB (0dB: 1mW, 600Ω) |
| Precisão básica da corrente CC | ±4% full scale |
| Precisão básica da tensão CA | ±5% full scale |
| Precisão básica da tensão CC | ±4% full scale |
| Resistência | 10Ω, 1kΩ |
| Tensão de CA | 10V, 50V, 250V, 300V |
| Tensão de CC | 2.5V, 10V, 50V, 250V, 300V |
| Teste da bateria | 9V and 1.5V |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CAT III-300V |
| Certificações | CE,ETL |
| Dimensões | 4.6 × 2.7 × 1.3" (116 × 68 × 34mm) |
| Garantia | 2 years |
| Peso | 4.2oz (120g) |
| Potência | 1 × 9V battery |
Resources & Support
Certification
Extech 38073A Declaration of Conformity
User Manual
Extech 38073A User Manual GB
Datasheet
Extech 38073A Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
