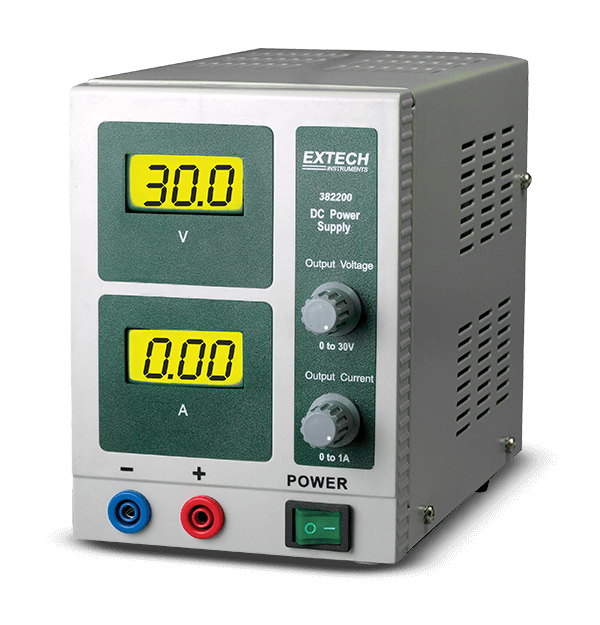

Extech 382200
Fonte de alimentação CC de saída única de 30 V\/ 1 A
Fonte de alimentação CC digital de corrente/tensão constante com LCD duplo
Especificações
| Especificações gerais | |
|---|---|
| Line Current Regulation | <0,2% + 3 mA |
| Line Voltage Regulation | <0,01% + 3 mV |
| Load Current Regulation | <0,2% + 3 mA |
| Load Voltage Regulation | <0,01% + 2 mV |
| Output Current | 0 - 1,00 A CC |
| Output Current Basic Accuracy | ±2% da leitura |
| Output Voltage | 30,0 V CC |
| Output Voltage Basic Accuracy | ±1,5% da leitura |
| Ripple and Noise | <0,5 mV/<3 mA |
| Detalhes adicionais | |
|---|---|
| Dimensions | 240 × 108 × 154 mm (9,4 × 4,25 × 6 pol) |
| Power | 115 V\/230 V; 50\/60 Hz |
| Warranty | 2 anos |
| Weight | 2 kg (4,4 lb) |
Resources & Support
Certification
Extech 382200 Declaration of Conformity
User Manual
Extech 382200 382202 User Manual
Datasheet
Extech 382200-382202 Datasheet
