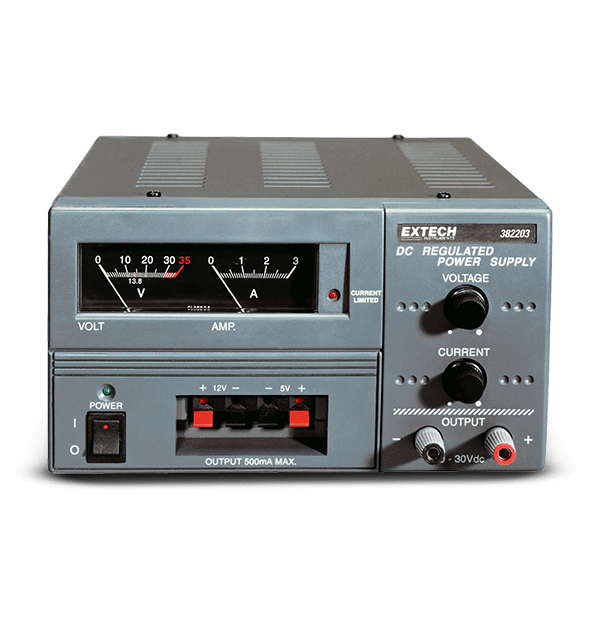

Extech 382203
Analog Triple Output DC Power Supply
The Extech 382203 is an Analog Triple Output DC Power Supply with overload and short circuit protection. Featuring constant voltage and current supply, the 382203 has a current limiting, front panel, LED indicator and binding post terminals for variable supply. Complete with power cord.
Especificações
| Especificações gerais | |
|---|---|
| Corrente de saída | 0 to 3A DC |
| Ondulação e ruído | <5mV |
| Regulação de tensão de carga | <0.05%+10mV |
| Regulação de tensão de linha | <0.05%+10mV |
| Saídas fixas | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| Tensão de Saída | 0 to 30V DC |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 6 × 5.6 × 9.5" (152 ×142 × 242) |
| Garantia | 2 years |
| Peso | 11lbs. (5kg) |
| Potência | 110/220VAC 50/60Hz |
Resources & Support
Datasheet
Extech 382203-382213 Datasheet
User Manual
Extech 382203 382213 User Manual
