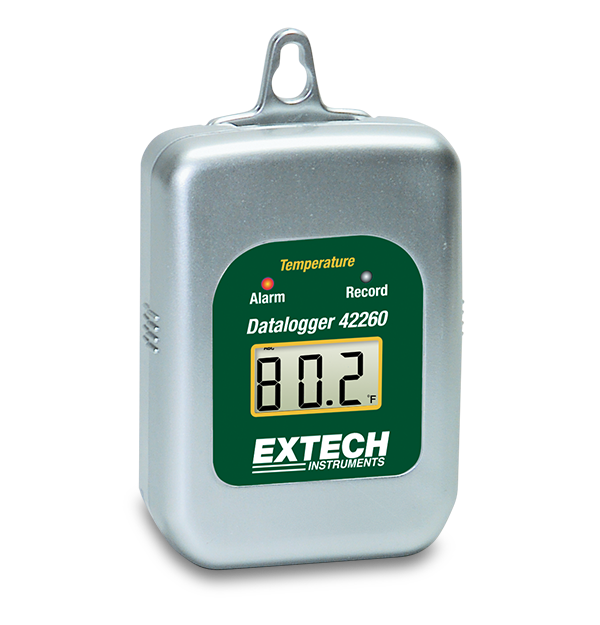

Extech 42260
Temperature Datalogger
The Extech 42260 is an additional Temperature Datalogger for use with the 42265 and 42266 kits. This waterproof (IP65) datalogger records up to 8,000 readings and has three start methods (scheduled, immediate or magnetic). The 42260 has a wide operating temperature range from -40°C to 85°C (-40°F to 185°F). Multiple dataloggers can be programmed and data downloaded from a single docking station (requires a docking station for initial programming).
Especificações
| Especificações gerais | |
|---|---|
| Intervalo de registro de dados | 1 sec to 12 hours |
| Memória | 8,000 points (temperature) + 8,000 points (humidity) |
| Precisão básica da temperatura (ar) | ±1 °F/±0.6 °C |
| Resolução máx. da temperatura (ar) | 0.1° |
| Temperatura (ar) | -40 to 185 °F (-40 to 85 °C) |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Classificação IP | IP65 |
| Dimensões | 3 × 2.3 × 0.88" (76 × 57.2 × 22.3mm) |
| Garantia | 2 years |
| Peso | 2.6oz (72.6g) |
Resources & Support
Observação: Você deve estar conectado para baixar software ou firmware. Faça login ou crie uma conta.
Software Download
Extech TrLog Software
User Manual
Extech 42260 42270 User Manual GB
Certification
Extech 42260 Declaration of Conformity
