Extech 475044-SD
High Capacity Force Gauge/Datalogger

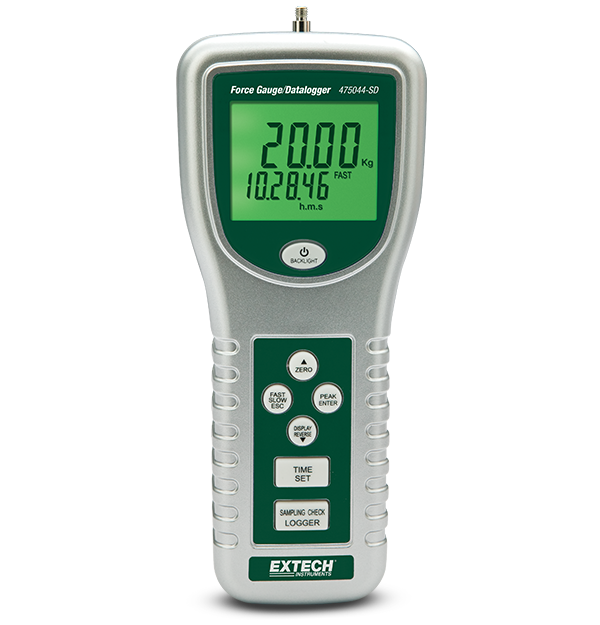

The Extech 475044-SD Digital Force Gauge/Datalogger dates, time stamps and stores up to 2 M push/pull readings on an SD card in Excel format for easy transfer to a PC. It features a 5 digit LCD display with peak hold, an exclusive load cell measurement transducer, and an overrange, low battery, and advanced function indicator. 20 kg/44 lbs/196 Newtons measurement capacity. 0.5% basic accuracy with auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.
Especificações
| Especificações gerais | |
|---|---|
| Capacidade de sobrecarga | 30kg |
| Detecção em escala total | 2.00mm |
| Força | 44lbs, 20kg, 196 Newtons |
| Memória | SD Card |
| Precisão básica da força | ±(0.5%) |
| Resolução máx. da força | 0.01lbs, 0.01kg, 0.05 Newtons |
| Taxa de atualização | Fast mode 0.2secs; Slow mode 0.6secs |
| Tipo de transdutor | Load cell |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| Garantia | 2 years |
| Peso | 1.4 lbs (650g) |
| Potência | 6 × AA batteries |
