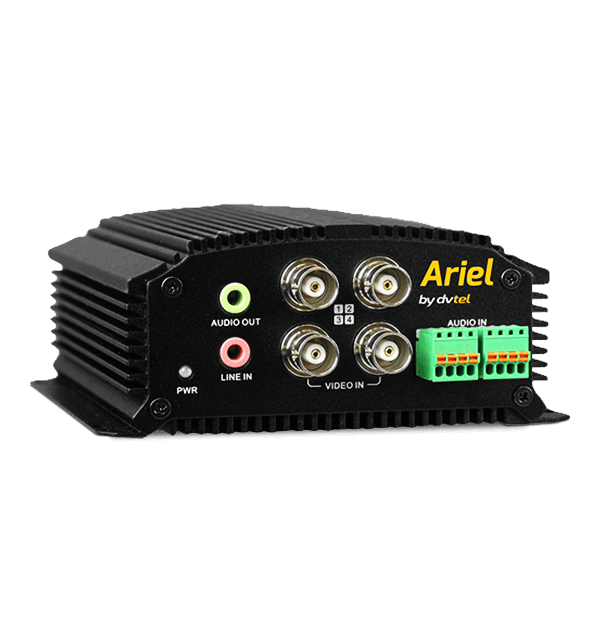

Ariel Encoders
Video Encoder
FLIR’s Ariel encoders turn analog video signals into digital streams sent over a LAN, Internet or Intranet systems for live viewing in a VMS or Web browser. Ariel encoders support H.264 and bi-directional audio.
Especificações
| Dados ambientais | |
|---|---|
| Temperatura de Trabalho | -10° to 55°C (14° to 131°F) |
| Umidade de Trabalho | 10% to 90% relative humidity (non-condensing) |
| Geral | |
|---|---|
| Armazenamento de Borda | microSD |
| Consumo de Energia | ≤ 22W |
| Dimensões (L x P x A) | 440 × 274 x 45 mm (17.3 x 10.8 x 1.8") |
| Fonte de Alimentação | 12VDC |
| Montagem | 1U rack height (mounting ears included) |
| Peso | 4 Kg/141 oz |
| Protocolos | IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP/RTCP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, SOCKS v4/v5, PSIA, ONVIF |
| Streaming Duplo | Yes |
| Integração do sistema | |
|---|---|
| Compressão de Áudio | G.711u |
| Entrada de Alarme | 16 |
| Entrada de Vídeo | 16 x BNC (1.0v p-p, 75Ω) |
| Entrada de Áudio | 16 x line input terminal block interface (2.0v p-p, 1kΩ) |
| Interface de Rede | 1 x RJ45 10/100/1000 Mbps Ethernet interface |
| Interface Serial | 1 half-duplex RS-485 interface (data out); 1 RS-232 interface (data out) |
| Saída de Alarme | 4 |
| Taxa de Bits de Áudio | 64 Kbps |
| Vídeo e gravação | |
|---|---|
| Compressão de Vídeo | H.264/MPEG-4/MPEG-2/MJPEG |
| Resolução de Vídeo | D1/4CIF/2CIF/CIF/QCIF |
| Taxa de Bits do Vídeo | Automatic bit rate: 32-3092 Kbps Maximum bit rate of 32-8192 Kbps for Primary stream; 32-1024 Kbps for Secondary stream |
