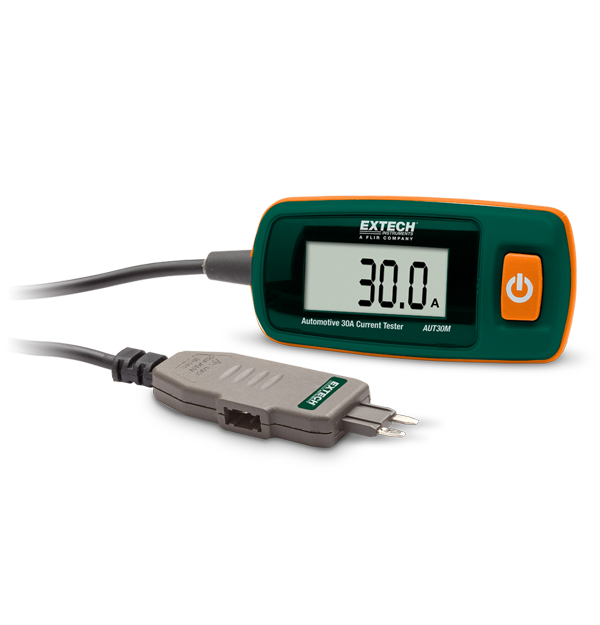

Extech AUT30M
30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT30M Current Tester. Mini-blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 71 cm (28 in) connector cable.
Especificações
| Especificações gerais | |
|---|---|
| Comprimento do cabo | 71cm (2.3 ft.) |
| Corrente Contínua (CC) | 0 to 30A DC |
| Distância de Detecção | <0.2" |
| Precisão básica da corrente CC | 10mA |
| Resolução máx. da corrente CC | ±(2.0% of reading + 2 digits) |
| Tensão de CC | 48V DC |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 159 × 25mm (6.25 × 1") |
| Garantia | 1 year |
| Peso | 42g (1.5 oz) |
| Potência | 1 × A23G (12V) battery |
Resources & Support
Certification
Extech AUT30M Declaration of Conformity
Datasheet
Extech AUTxx Datasheet
User Manual
Extech AUT30 AUT30M User Manual GB
