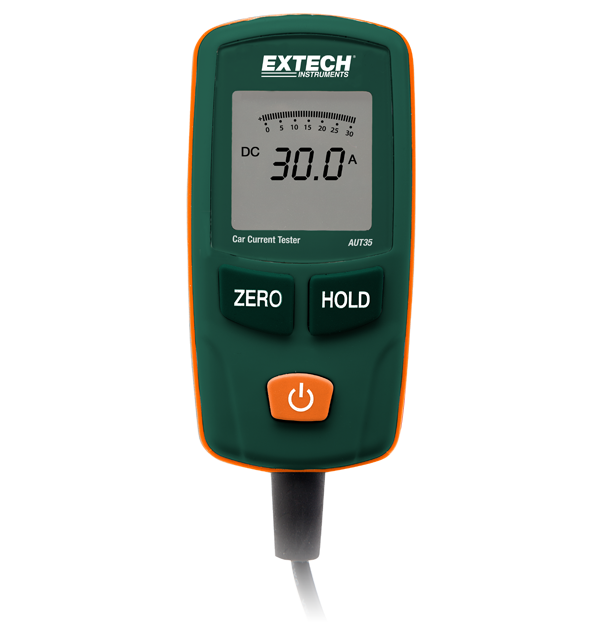

Extech AUT35
Universal 30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT35 Current Tester. Mini-blade and ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD with a bargraph. Includes alligator clips.
Especificações
| Especificações gerais | |
|---|---|
| Corrente Contínua (CC) | 0 to 30A DC |
| Distância de Detecção | <0.2" |
| Precisão básica da corrente CC | 100mA |
| Resolução máx. da corrente CC | ±(2.0% of reading + 2 digits) |
| Tensão de CC | 48V DC |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 86 × 37 × 28mm (3.4 × 1.5 × 1.1") |
| Garantia | 2 years |
| Peso | 68g (0.15 lbs.) |
| Potência | 1 × 9V battery |
