Discontinued

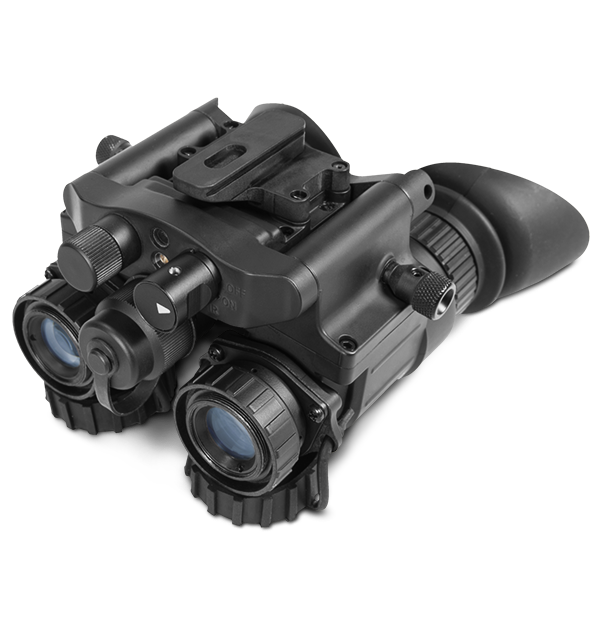

FLIR BNVD-51
51° Night Vision Goggles
The wide-angle FLIR BNVD-51 dual-channel night vision system creates an undisputed tactical advantage. Head and helmet mounting options provide hands-free full-field night vision while multi-coated lenses and composite housing stand up to wear and tear. One AA or CR123A battery can power the BNVD-40 up to 20 hours.
Wide-Angle Night Vision for Superior Awareness
51-degree lens offers a 28% field of view increase over similar 40-degree models.
Head or helmet mounting allows hands-free operation and uninhibited movement.
Simple single-knob gain corrections and flip up/power off display controls allow quick and covert viewing adjustments.
Especificações
| Sensor e óptica | |
|---|---|
| Ajuste de Dioptria | -6 to +2 dpt |
| Alívio Ocular [mm] | 17 mm |
| Ampliação | 1x standard (3x optional) |
| Campo de Visão | 51° |
| Controle de Brilho Automático | No |
| Diâmetro da Pupila de Saída | - |
| Faixa de Foco | 0.25 m to Infinity |
| Geração do Tubo Intensificador de Imagem (IIT) | FLAG - Filmless Auto-Gated IIT |
| Iluminador de Infravermelho | Yes (built-in with pivotal flood lens) |
| Interrupção_da Luz Brilhante | Yes |
| Resolução | - |
| Sistema de Lentes | F/1.26; 19 mm |
| Tipo de Fotocátodo | GaAs |
| Dados ambientais e aprovações | |
|---|---|
| Temperatura de Armazenamento | -50°C to +50°C (-58°F to +122°F) |
| Temperatura Operacional | -40°C to +50°C (-40°F to +122°F) |
| Potência | |
|---|---|
| Autonomia da Bateria | Up to 20 hours (up to 80 hrs with optional Battery Pack) at 20°C |
| Desligamento Automático | Yes |
| Fonte de Alimentação | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Indicador de Bateria Fraca | Yes (In FOV) |
| Armazenamento de arquivos e comunicação | |
|---|---|
| Controle Remoto | - |
| UI-UX | |
|---|---|
| Controle de Ganho Manual | Yes |
| Cor da Retícula | - |
| Indicador de Infravermelho | Yes (In FOV) |
| Visão geral do sistema | |
|---|---|
| Ajuste de Vento_Elevação | - |
| Altura do Eixo da Luneta Acima do Trilho | - |
| Garantia | 2 Years |
| Tipo de Retícula | - |
| Características físicas | |
|---|---|
| Dimensões (C x L x A) | 157 × 124 × 78 mm (6.2 × 4.9 × 3.1 in) |
| Montagem em Tripé | - |
| Peso do Produto | 0.61 kg (1.35 lbs) |
| Acessórios | |
|---|---|
| Acessórios inclusos | Packing Box, Soft Carrying Case, Lens Tissue, Quick Start Guide, NVG Interface Shoe (preinstalled), Bayonet/Horn Interface Shoe, Sacrificial Window (2), Demist Shield (2). |
| Acessórios Opcionais | 3x Afocal Lens Kit (includes 2 lenses) , Battery Pack #206 (Includes: Battery Pack Bracket #231, Nylon Bag), Battery Pack Kit (Includes: Battery Pack #206 w/ Battery Pack Bracket #231and Nylon Bag, NVG Interface Shoe with Connector #212, Battery Locking Plate, Battery Locking Plate Adapter #213, NVG Interface Shoe with Connector #212, Goggle Kit for BNVD (Includes: Goggle Kit #205, Adapter #224), Helmet Mount Kit for BNVD (Includes: Helmet Mount #3, Adapter #224), Tactical Goggle Kit for BNVD (Includes: Wilcox L4 G24 w/ Low Profile Breakaway mount, Wilcox 3 Hole Shroud, Wilcox Lanyard, Crye Precision Head Cap),Mil-Standard Hard Shipping/Storage Case #101. |
