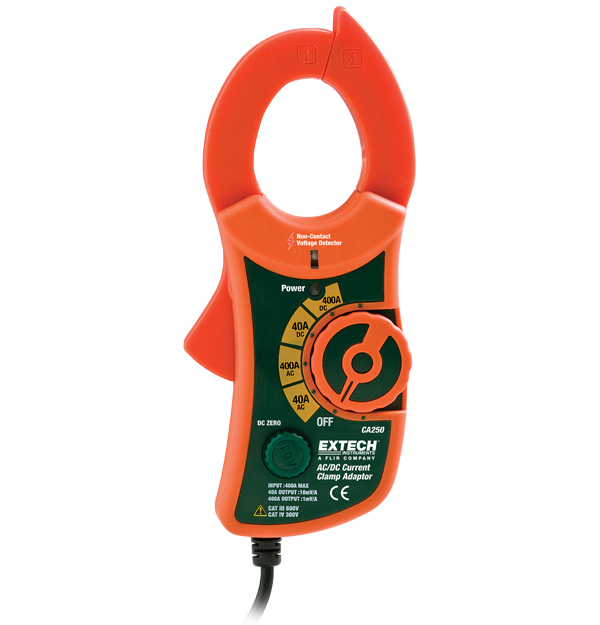

Extech CA250
400A AC/DC Clamp-on Adaptor + NCV
The Extech CA250 is a 400 A AC/DC Clamp-on Adaptor with built in NCV that can be used with any multimeter with a 1 mV input and accepts standard banana plugs. It has a 30 mm (1.2 in) clamp jaw and 2.5% accuracy. Additional features include a built in, non-contact voltage detector with LED alerts and a DC zero adjust. Comes complete with built in 1.1 m (3.8 ft) cable with banana plugs and two AAA batteries.
Especificações
| Especificações gerais | |
|---|---|
| Corrente Alternada (CA) | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| Corrente Contínua (CC) | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| Frequência | 50/60Hz |
| Precisão básica da corrente alternada CA | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| Precisão básica da corrente CC | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| Tamanho da garra | 30mm (1.2") |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII - 600V, CATIV - 300V |
| Certificações | CE |
| Dimensões | 5.8 × 2.3 × 1.3" (146 × 60 × 32mm) |
| Garantia | 2 years |
| Peso | 8oz (226g) |
| Potência | 2 × AAA (1.5V) batteries |
Resources & Support
User Manual
Extech CA250 User Manual GB
Datasheet
Extech CA250 Datasheet
Certification
Extech CA250 Declaration of Conformity
