Discontinued

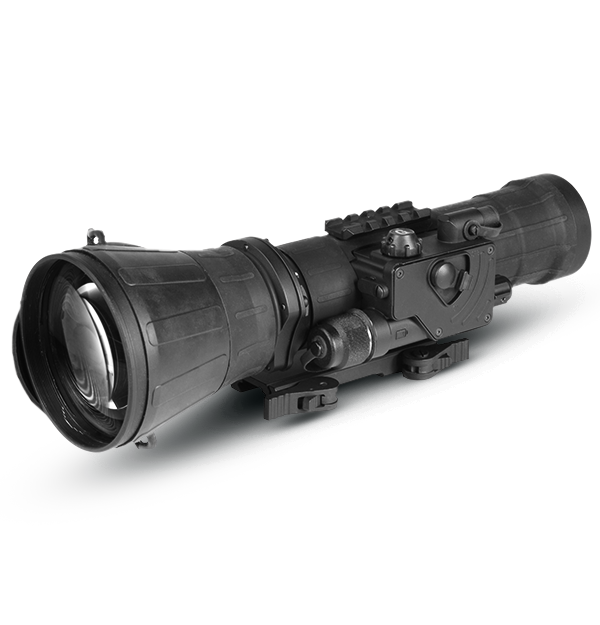

FLIR CO-XLR-LRF
145 mm Night Vision Clip-On System
The FLIR CO-XLR-LRF is the most advanced night vision clip-on in its family. High-performance image intensifier tubes and extra long-range 145 mm optical lens generate superior imagery for engaging targets at extended distances. Installed in front of a standard day optic, the CO-XLR-LRF offers immediate high-quality night vision and precise shot placement—no rezeroing needed. Included XRL IR illuminator maintains excellent image quality in adverse lighting conditions.
Elite Long-Range Performance
145 mm lens and Gen 3 intensifier tubes generate outstanding long-range night vision and quickly detect targets downrange.
Front-mounting allows consistent ballistic reticle use and maintains familiar shot position, release, and follow-through.
Quick-release Picatinny mounting ensures proper rail position and installs in seconds—no tools required.
Especificações
| Sensor e óptica | |
|---|---|
| Ajuste de Dioptria | - |
| Alívio Ocular [mm] | - |
| Ampliação | 1x (recommended to use with up to 16x day time optics) |
| Campo de Visão | 7° |
| Controle de Brilho Automático | Yes |
| Diâmetro da Pupila de Saída | 50 mm |
| Faixa de Foco | 25 m to Infinity |
| Geração do Tubo Intensificador de Imagem (IIT) | Gen 3 Alpha (High Performance) MG |
| Iluminador de Infravermelho | Detachable Long Range IR |
| Interrupção_da Luz Brilhante | Yes |
| Resolução | 64-72 lp/mm |
| Sistema de Lentes | F/1.8; 145 mm |
| Tipo de Fotocátodo | GaAs |
| Dados ambientais e aprovações | |
|---|---|
| Temperatura de Armazenamento | -50°C to +70°С (-58°F to +158°F) |
| Temperatura Operacional | -40°C to +50°С (-40°F to +122°F) |
| Potência | |
|---|---|
| Autonomia da Bateria | Up to 60 hours |
| Desligamento Automático | Yes |
| Fonte de Alimentação | CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Indicador de Bateria Fraca | Yes (in FOV) |
| Armazenamento de arquivos e comunicação | |
|---|---|
| Controle Remoto | Wireless |
| UI-UX | |
|---|---|
| Controle de Ganho Manual | Yes |
| Cor da Retícula | - |
| Indicador de Infravermelho | No |
| Visão geral do sistema | |
|---|---|
| Ajuste de Vento_Elevação | - |
| Altura do Eixo da Luneta Acima do Trilho | 40 mm |
| Garantia | 2 Years |
| Tipo de Retícula | - |
| Características físicas | |
|---|---|
| Dimensões (C x L x A) | 304 × 104 × 94 mm (12.0 × 4.0 × 3.7 in) |
| Montagem em Tripé | - |
| Peso do Produto | 1.30 kg (2.86 lbs) |
| Acessórios | |
|---|---|
| Acessórios inclusos | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Adjustment-Control-Device, Battery, Picatinny adapter for AWReC (Advanced Wireless Remote Control, AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Special Wrench, Light-Suppressor, Soft carrying Case, Packing Box, Lens Tissue |
| Acessórios Opcionais | Extended Rail Adapter #85, FSRS (Front Scope Rail System) #38, Mil-Standard Hard Shipping/Storage Case #102, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, AMRF2200 - Advanced Modular Range Finder |
