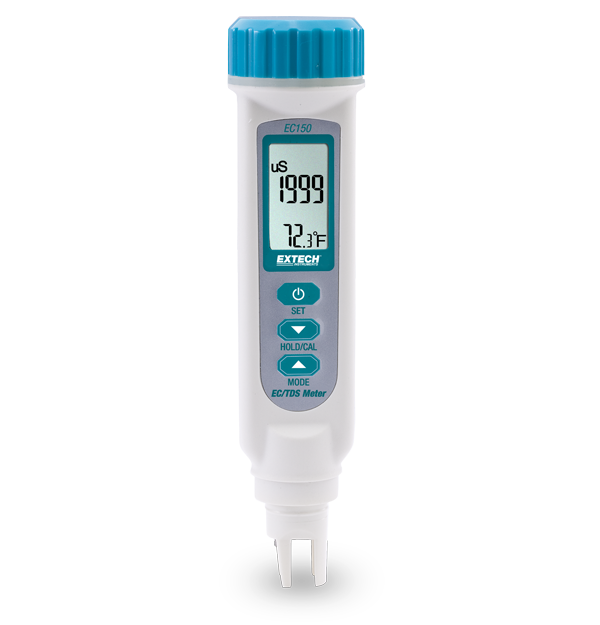

Extech EC150
Conductivity/TDS/Temperature Meter
The Extech EC150 is a Conductivity/TDS/Temperature Meter with high-accuracy multi-ranging sensor. It features auto power off with disable, adjustable conductivity to TDS ratio factor from 0.4 to 1.0, data hold and low battery indication. The waterproof design withstands wet environment and meets IP65 standard. Includes meter, protective sensor cap, and four LR44 button batteries.
Especificações
| Especificações gerais | |
|---|---|
| Condutividade | 0 to 1999µS/cm, 00 to 19.99mS/cm |
| Precisão básica da condutividade | ±1% full scale |
| Precisão básica da temperatura (contato) | ±0.9°F/1°C |
| Precisão básica de TDS | ±1% full scale |
| Resolução máx. da condutividade | 1µS/cm, 0.01mS/cm |
| Resolução máx. da temperatura (contato) | 0.1°F/°C |
| Resolução máx. de TDS | 1ppm, 0.01ppt |
| TDS | 0 to 1999ppm, 0 to 19.99ppt |
| Temperatura (contato) | 32° to 122°F (0 to 50°C) |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 6.5 × 1.4 × 1.3" (165 × 35 × 32mm) |
| Garantia | 2 years |
| Peso | 3.8 oz (110g) |
| Potência | 4 × LR44 (1.5V) button batteries |
Resources & Support
User Manual
Extech EC150 User Manual
Certification
Extech EC150 Declaration of Conformity
User Manual
Extech EC150 User Manual GB
Datasheet
Extech EC100 EC150 Datasheet
