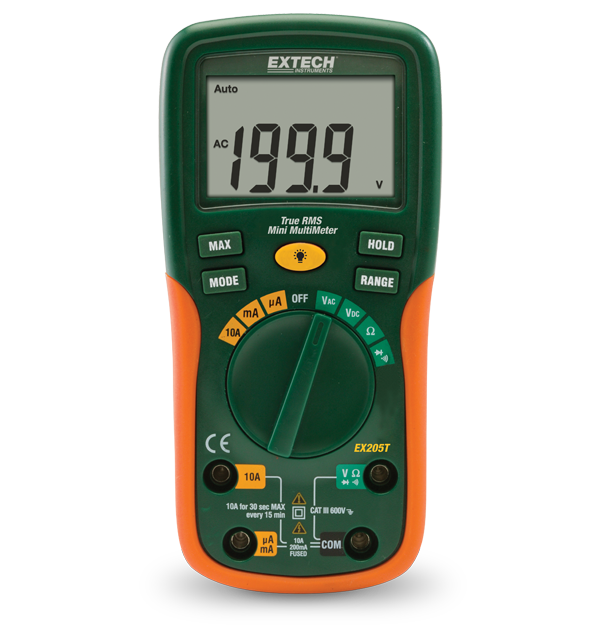

Extech EX205T
TrueRMS Digital Multimeter
The Extech EX205T is a True RMS Digital Multimeter which provides true AC readings when measuring distorted or non-sinusoidal waveforms plus noisy signals. This model is also auto ranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Featuring a large 2000 count, backlit dual LCD with easy to read digits, this multimeter measures AC/DC voltage, resistance, diode test, and continuity. The meter also makes use of a number of functions including input fuse protection, max hold, auto power off, and data hold functions. Product includes test leads and 9 V battery.
Especificações
| Especificações gerais | |
|---|---|
| Continuidade | Yes |
| Corrente Alternada (CA) | 10A |
| Corrente Contínua (CC) | 10A |
| Precisão básica da tensão CC | ±0.5% |
| Resistência | 20MΩ |
| Resolução máx. da corrente CC | 0.1µA |
| Resolução máx. da resistência | 0.1Ω |
| Resolução máx. da tensão CA | 0.1mV |
| Resolução máx. da tensão CC | 0.1mV |
| Resolução máx. de corrente CA | 0.1µA |
| Tensão de CA | 600V |
| Tensão de CC | 600V |
| Teste de Diodo | Yes |
| True RMS | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII - 600V |
| Certificações | CE, NIST |
| Dimensões | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Garantia | 2 years |
| Peso | 9.17oz (260g) |
| Potência | 1 × 9V battery |
Resources & Support
User Manual
Extech EX205T User Manual
Certification
Extech EX205T Declaration of Conformity
Datasheet
Extech EX205T EX210T Datasheet
