Extech EX210
8 Function Mini Digital MultiMeter with IR Thermometer

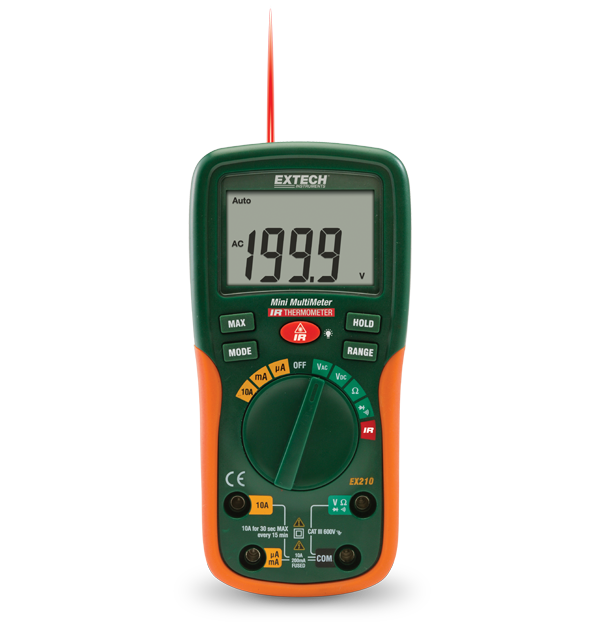

The Extech EX210 is a Mini Digital MultiMeter with a built in IR Thermometer. The meter can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. It measures AC/DC voltage, AC/DC current, resistance, and temperature (IR). The EX210’s rugged design incorporates a 2000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. This meter also features max hold and data hold capabilities as well as auto power off. The EX210 comes complete with test leads and a 9 V battery.
Especificações
| Especificações gerais | |
|---|---|
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.1 µA to 10A |
| Corrente Contínua (CC) | 0.1 µA to 10A |
| Precisão básica da temperatura (IV) | -5 to 446 °F (-20 to 230 °C) |
| Precisão básica da tensão CC | ±0.5% |
| Resistência | 0.1Ω to 20MΩ |
| Tensão de CA | 0.1mV to 600V |
| Tensão de CC | 0.1mV to 600V |
| Teste de Diodo | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII - 600V |
| Certificações | CE, ETL |
| Dimensões | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Garantia | 2 years |
| Peso | 9.17oz (260g) |
| Potência | 1 × 9V battery |
