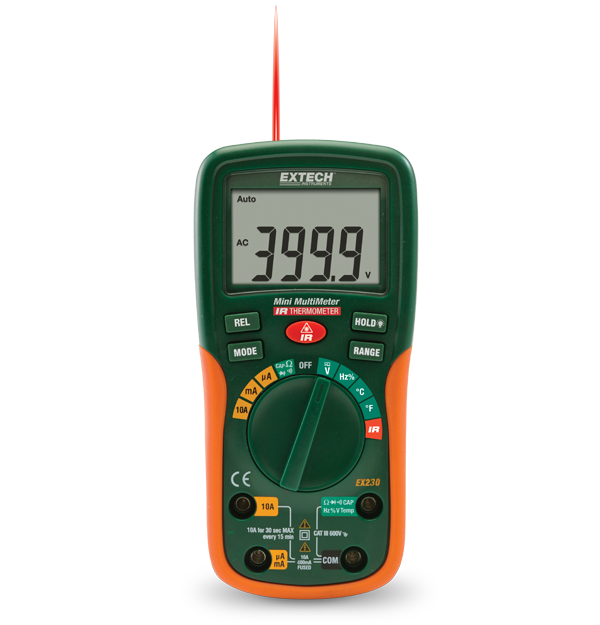

Extech EX230
12 Function Mini Digital MultiMeter with IR Thermometer
The Extech EX230 Mini Digital MultiMeter with built-in IR Thermometer can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. The EX230’s rugged design incorporates a 4000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. The built in IR Thermometer has a 6:1 distance to target ratio. This meter also features Type K temperature, frequency, capacitance, and duty cycle measurement. It also has relative function, data hold capabilities, and an auto power off function. The EX230 comes complete with test leads, Type K Temperature bead probe, and a 9 V battery.
Especificações
| Especificações gerais | |
|---|---|
| Capacitância | 0.01nF to 100µF |
| Ciclo de Trabalho | 0.1% to 99.9% |
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.1µA to 10A |
| Corrente Contínua (CC) | 0.1µA to 10A |
| Frequência | 0.001Hz to 10MHz |
| Precisão básica da temperatura (IV) | -5 to 446°F (-20 to 230°C) |
| Precisão básica da tensão CC | ±0.5% |
| Resistência | 0.1Ω to 40MΩ |
| Resolução máx. da temperatura (tipo K) | -4 to 1400°F (-20 to 760°C) |
| Tensão de CA | 0.1mV to 600V |
| Tensão de CC | 0.1mV to 600V |
| Teste de Diodo | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII - 600V |
| Certificações | CE |
| Dimensões | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Display | 4000-count segment LCD |
| Garantia | 2 years |
| Peso | 9.17oz (260g) |
| Potência | 1 × 9V battery |
