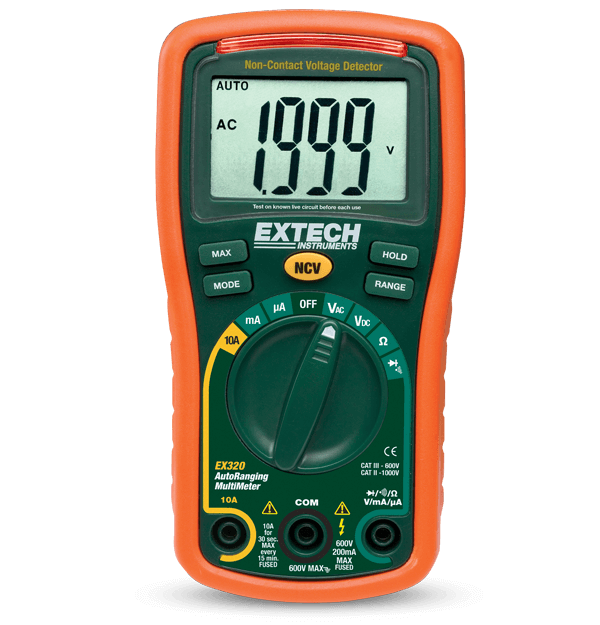

Extech EX320
8 Function Mini MultiMeter + Non-Contact Voltage Detector
The Extech EX320, a compact auto ranging multimeter, features extra large 2000 count display and a built in, non-contact AC Voltage detector. Its large LCD display can display continuity, diode test, and max hold functions, as well as AC/DC voltage/current and resistance measurements. A rubber holster protects the meter. UL listed Cat III – 600 Volt. Includes test leads, two AA batteries, and a tilt stand.
Especificações
| Especificações gerais | |
|---|---|
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.1µA to 10A |
| Corrente Contínua (CC) | 0.1µA to 10A |
| Detector de tensão sem contato (NCV) | 100 to 600VAC |
| Resistência | 0.1Ω to 20MΩ |
| Tensão de CA | 0.1mV to 600V |
| Tensão de CC | 0.1mV to 600V |
| Teste de Diodo | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATII - 1000V, CATIII - 600V |
| Certificações | CE, UL |
| Dimensões | 5.7 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Display | 2000-count segment LCD |
| Garantia | 2 years |
| Peso | 9oz (260g) |
| Potência | 2 × AAA (1.5V) batteries |
Resources & Support
User Manual
Extech EX320 User Manual
Certification
Extech EX320 Declaration of Conformity
Datasheet
Extech EX3xx Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
