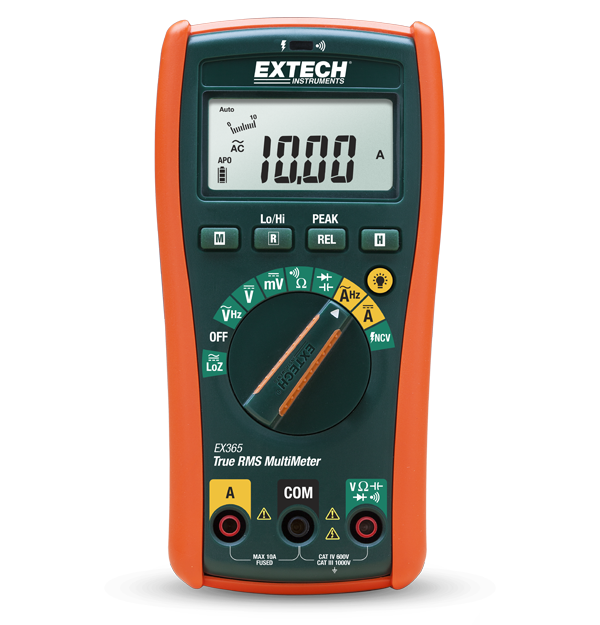

Extech EX365
10 Function True RMS Multimeter
The Extech EX365 is a compact, industrial True RMS Multimeter with a built in non-contact voltage detector. It features highly accurate True RMS measurements, LoZ for the prevention of false readings caused by ghost voltages, .5 % basic accuracy, a 1000 V AC/DC volt range, and resistance up to 40 MΩ. It also has a continuity beeper with visual alert, smart data hold, peak hold, auto power off with disable, relative mode for capacitance zero, and offset adjustment. Additionally, the EX365 excels in frequency and capacitance measurements as well as commercial applications that require AC/DC current measurements from 1 mA to 10 A. Complete with test leads, 9 V battery, holster with tilt stand, and built-in magnet.
Especificações
| Especificações gerais | |
|---|---|
| Capacitância | 1nF to 10mF |
| Continuidade | Yes |
| Corrente Alternada (CA) | 1mA to 10A |
| Corrente Contínua (CC) | 1mA to 10A |
| Detector de tensão sem contato (NCV) | Yes |
| Frequência | 0.01Hz to 100kHz |
| Precisão básica da tensão CC | 0.5% |
| Resistência | 0.1Ω to 40MΩ |
| Tensão de CA | 0.1mV to 1000V |
| Tensão de CC | 0.1mV to 1000V |
| Teste de Diodo | Yes |
| True RMS | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIV - 600V |
| Certificações | CE, UL |
| Dimensões | 6.5 × 3.2 × 1.7" (164 × 82 × 44mm) |
| Garantia | 3 years |
| Peso | 5.9oz (450g) |
| Potência | 1 × 9V battery |
